Product Overview
Applications
Converts communication media between glass fiber-optic and copper connections for PROFINET IO.
Technical Summary
| Product type | BA LC/FC |
|---|---|
| PROFINET interfaces | 1; 2 ports (switch) LC / FC |
| FastConnect connections | 1 |
| LC ports | 1; wavelength 1 270 … 1 380 nm, corresponds to 100BASE-FX |
| Operating temperature, horizontal installation | -30 °C to 60 °C |
| Operating temperature, vertical installation | -30 °C to 50 °C |
| Maximum installation altitude | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
Key Features

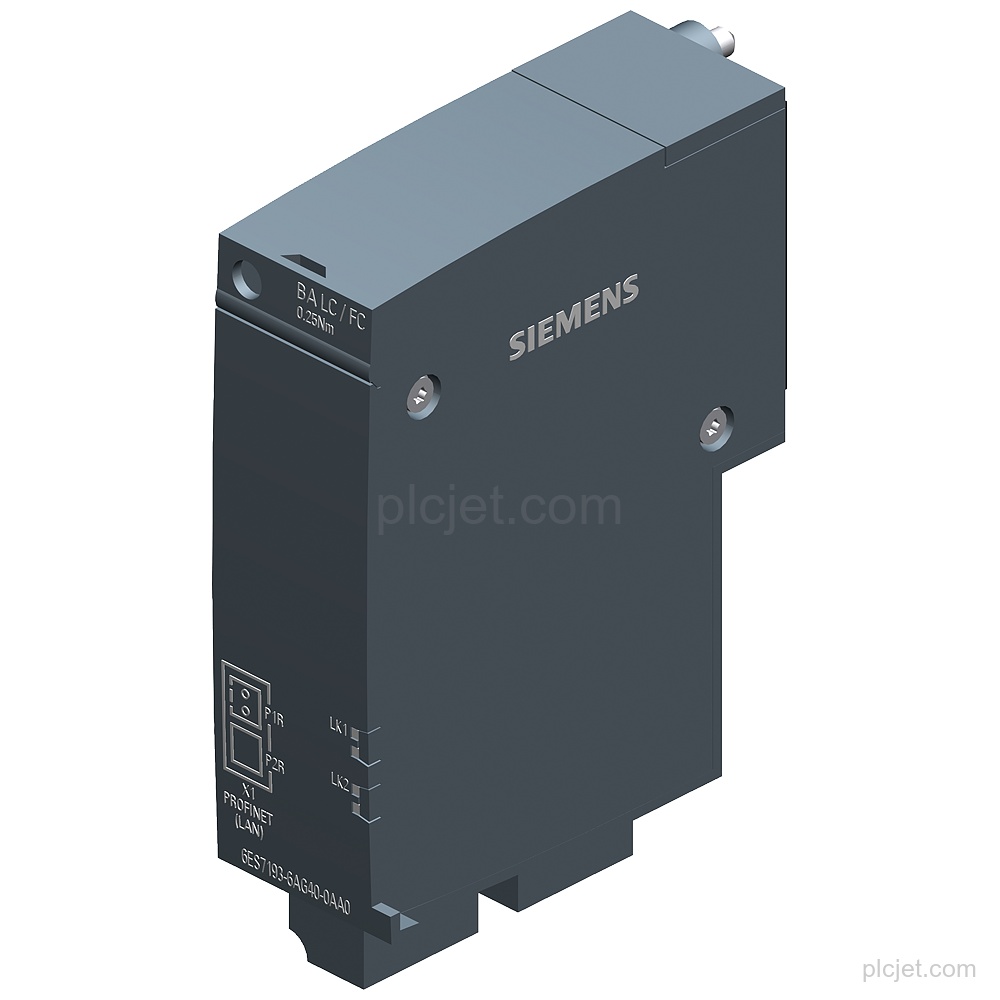

BA LC/FC converts between glass fiber-optic and copper media, with 1 LC fiber-optic connection and 1 FastConnect connection.
1 PROFINET interface with 2 switched LC / FC ports.
Copper conductors: 100 m. Multimode graded-index fiber 50/125 μm: 3 km; 62.5/125 μm: 3 km, with the specified transmit-power and receiver-sensitivity limits.
-30 °C to 60 °C for horizontal installation and -30 °C to 50 °C for vertical installation.

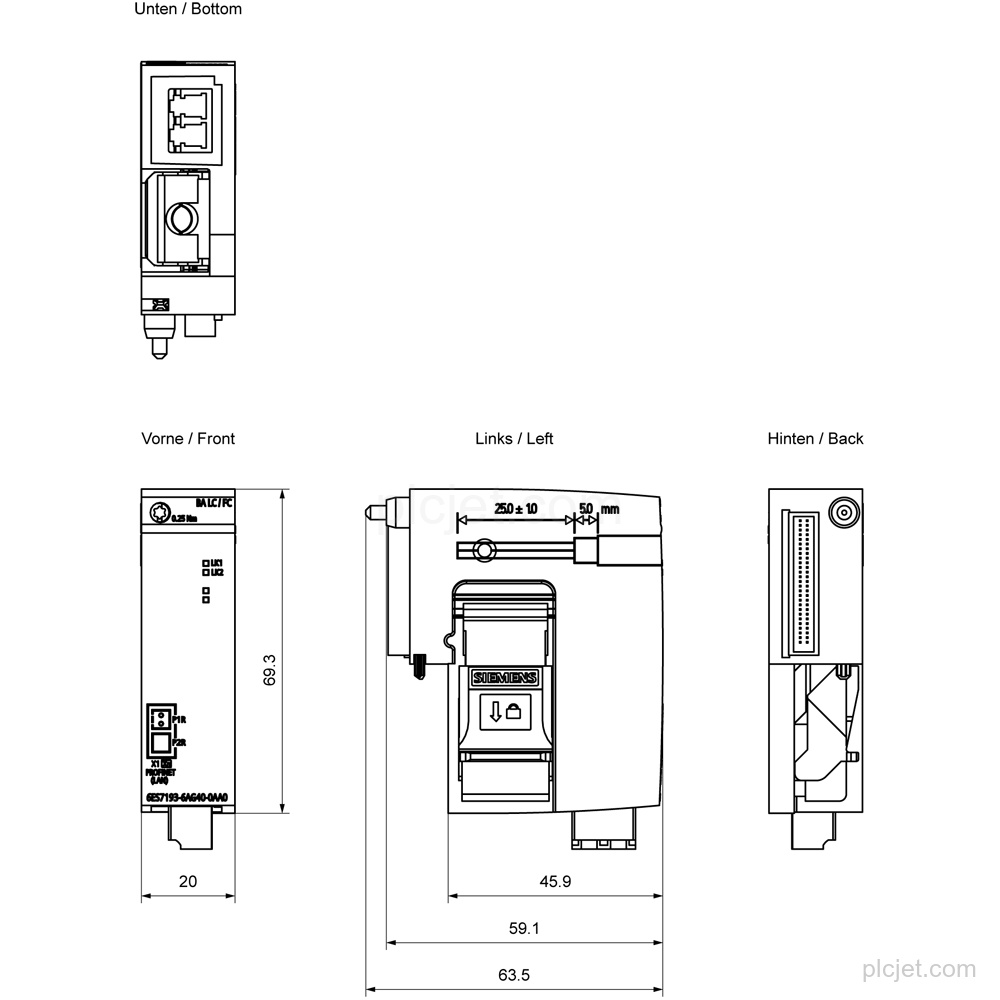

20 mm width, 69.5 mm height, 59 mm depth, and approx. 50 g weight.
Hardware functional status: from FS04.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7193-6AG40-0AA0?
It is a BA LC/FC SIMATIC bus adapter and media converter.
Which connections does the BA LC/FC provide?

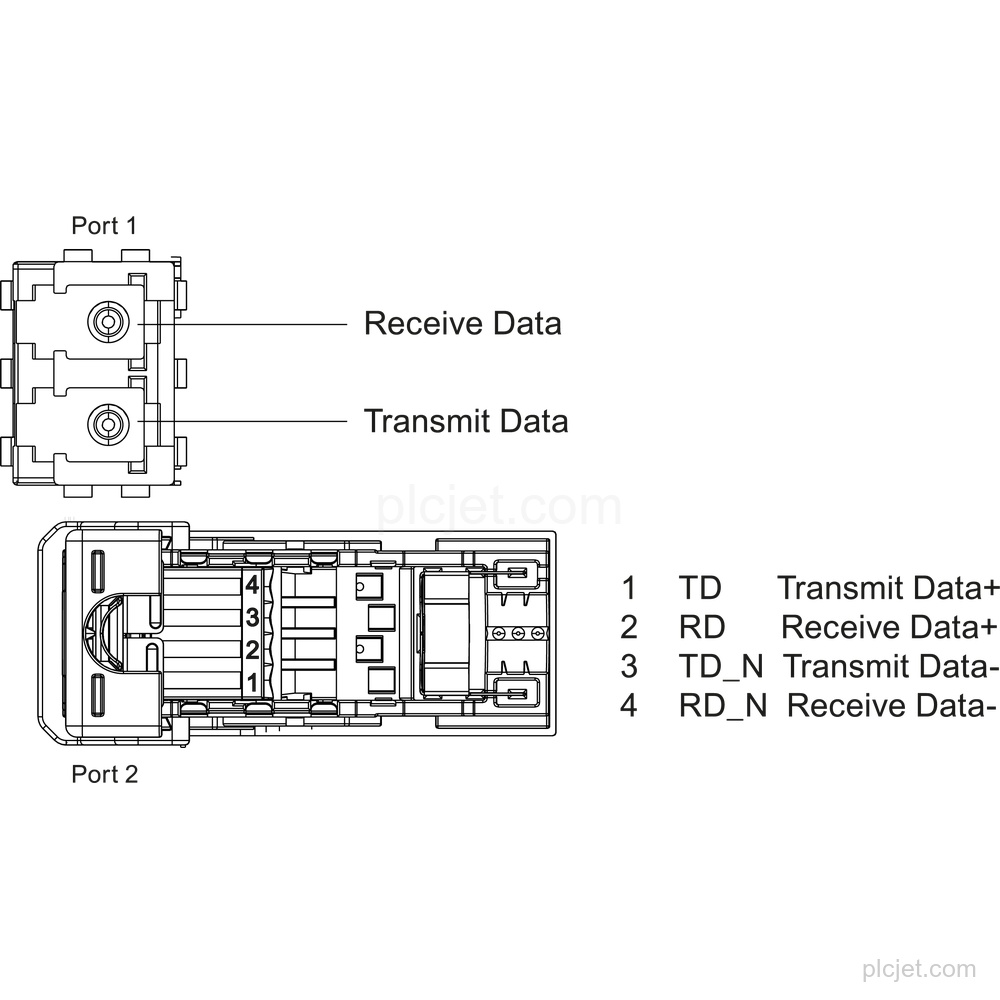

It has 1 LC fiber-optic connection, 1 FastConnect connection, and 1 PROFINET interface with 2 switched LC / FC ports.
What cable lengths are supported?
The supported lengths are 100 m for copper conductors and 3 km for both specified multimode graded-index fiber sizes: 50/125 μm and 62.5/125 μm.
What are the installation temperature limits?
For horizontal installation, the range is -30 °C to 60 °C. For vertical installation, it is -30 °C to 50 °C.
Can this exact line item be included in a project quotation?
Yes. Submit the requested quantity, destination, schedule context, and any additional BOM lines for quotation review.
