Product Overview
Technical Summary
| Product type | BA LC-LD / RJ45 |
|---|---|
| PROFINET interfaces | 1; 2 ports (switch) LC-LD / RJ45 |
| RJ45 ports | 1 |
| LC port | 1; wavelength of 1 270 … 1 380 nm, corresponds to 100BASE-LX |
| Single-mode fiber-optic cable | 20 km; 10 km for topology or IRT configuration; min. transmit power -15 dB, min. receiver sensitivity -28 dB |
| Horizontal installation temperature | -30 °C to 60 °C |
| Vertical installation temperature | -30 °C to 50 °C |
| Maximum installation altitude | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
| Product lifecycle | Active Product |
Key Features
BA LC-LD / RJ45 BusAdapter with 1 LC-LD port and 1 RJ45 port.
1 PROFINET interface with 2 ports (switch): LC-LD / RJ45.
Up to 20 km with 9/125 μm single-mode fiber-optic cable; 10 km for topology or IRT configuration.
100 m for Cu conductors.
-30 °C to 60 °C for horizontal installation and -30 °C to 50 °C for vertical installation.

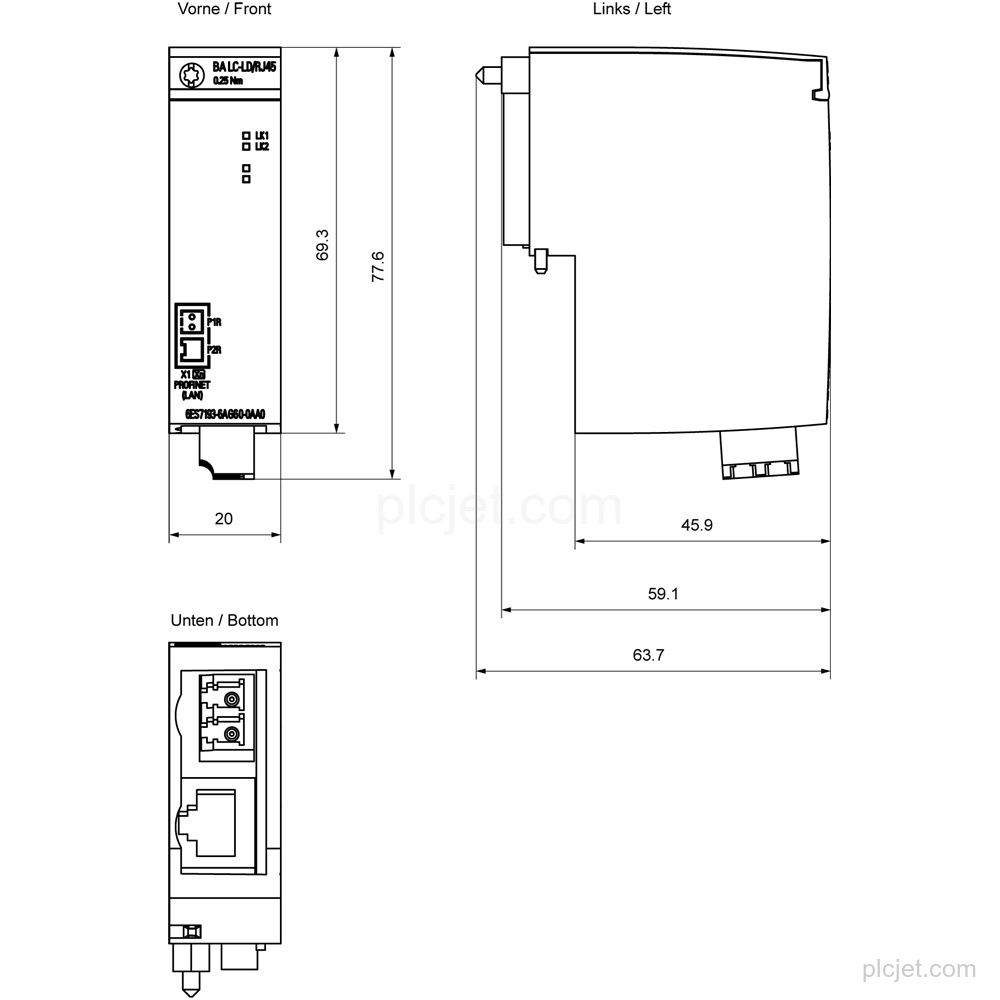

20 mm width, 69.5 mm height, 59 mm depth, and approximately 32 g.
Frequently Asked Questions
What is the exact product type of 6ES7193-6AG60-0AA0?
The product type is BA LC-LD / RJ45 BusAdapter.
How many RJ45 and LC ports does the BusAdapter have?
It has 1 RJ45 port and 1 LC port, with 2 ports (switch) for the PROFINET interface.
What single-mode fiber cable distance is supported?
The supported distance is up to 20 km with 9/125 μm single-mode fiber-optic cable, or 10 km for topology or IRT configuration.
