Product Overview
Technical Summary
| Product type | BA SCRJ/RJ45 |
|---|---|
| HW functional status | from FS04 |
| PROFINET interfaces | 1; 2 ports (switch) SCRJ/RJ45 |
| RJ45 ports | 1 |
| SCRJ ports | 1 |
| Operating temperature, horizontal installation | -25 °C to 60 °C |
| Operating temperature, vertical installation | -25 °C to 50 °C |
Key Features

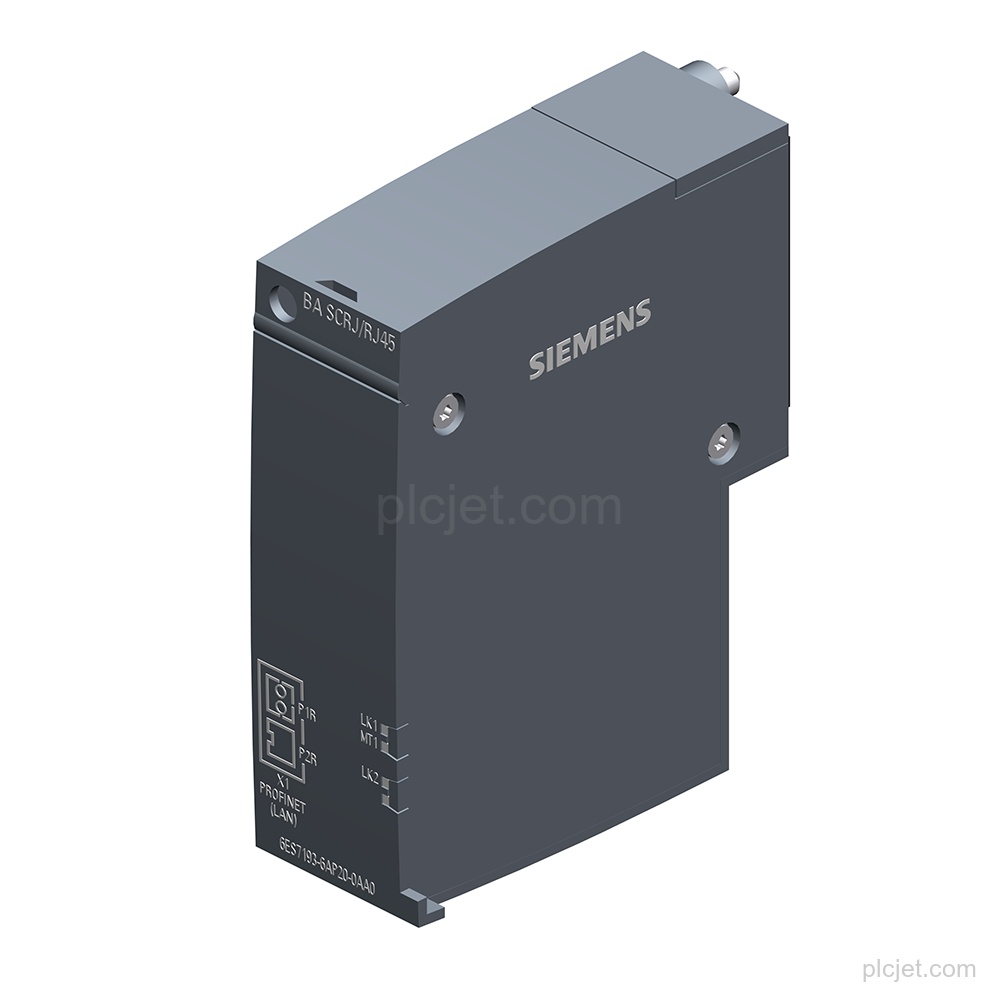

BA SCRJ/RJ45 BusAdapter and media converter for SIMATIC ET 200SP.
1 PROFINET interface with 2 ports (switch), SCRJ/RJ45.

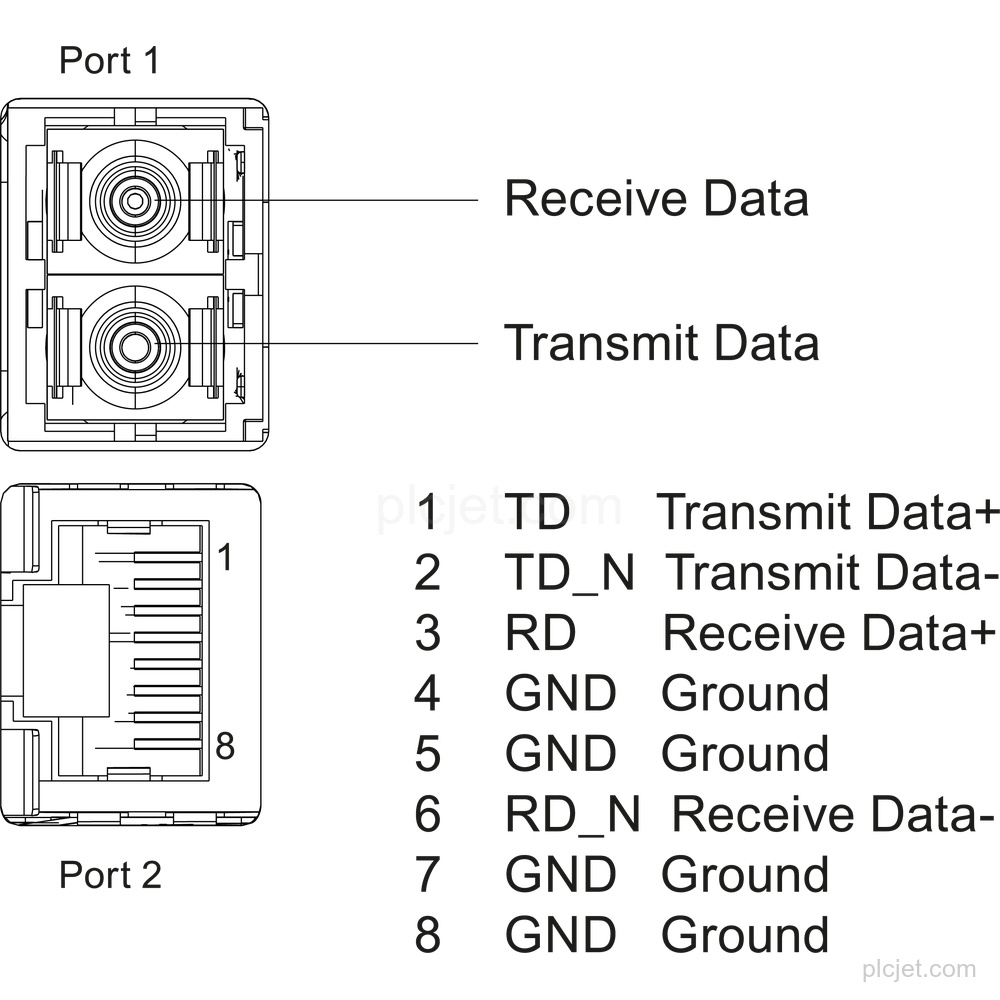

1 SCRJ port and 1 RJ45 port.
100 m for PCF, 50 m for Plastic FOC (POF), and 100 m for Cu conductors.
Horizontal installation: -25 °C to 60 °C; vertical installation: -25 °C to 50 °C.

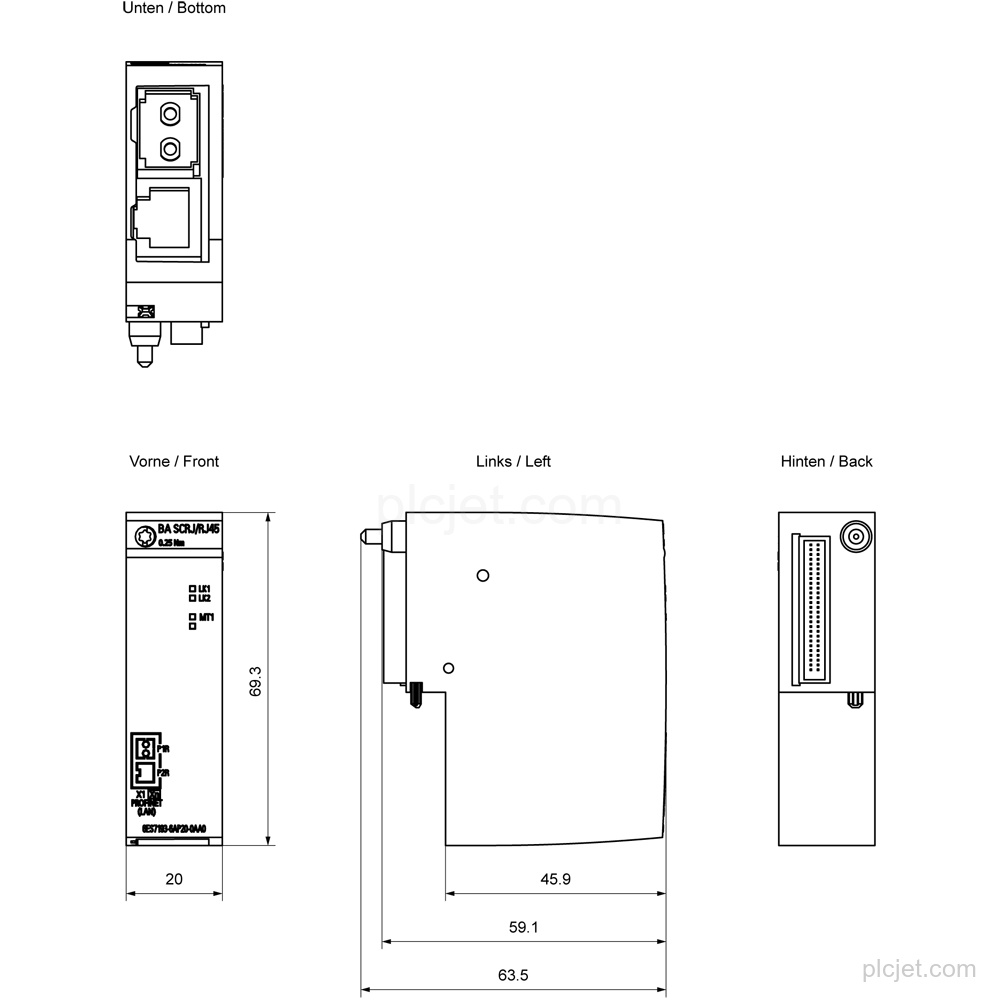

20 mm wide, 69.5 mm high, 59 mm deep; weight approx. 50 g.
Frequently Asked Questions
What is the exact Siemens line item?
It is Siemens 6ES7193-6AP20-0AA0, SIMATIC ET 200SP BusAdapter BA SCRJ/RJ45 and media converter.
What interfaces does the BA SCRJ/RJ45 have?
It has 1 PROFINET interface with 2 switch ports, comprising 1 SCRJ port and 1 RJ45 port.
What cable lengths are specified?
The specified cable lengths are 100 m for PCF, 50 m for Plastic FOC (POF), and 100 m for Cu conductors.
What temperature range applies during operation?
For horizontal installation, the range is -25 °C to 60 °C. For vertical installation, it is -25 °C to 50 °C.
What should I include in a quotation request for this item?
Include the exact order number, requested quantity, destination, schedule context, and any additional BOM lines.
