Product Overview
Applications
Connects a SIMATIC ET 200SP station to PROFINET IO through 2 RJ45 switch ports.
Technical Summary
| Product type | BA 2x RJ45 |
|---|---|
| PROFINET interfaces | 1; 2 ports (switch) 2x RJ45 |
| RJ45 ports | 2 |
| Operating temperature, horizontal installation | -30 °C to 60 °C |
| Operating temperature, vertical installation | -30 °C to 50 °C |
| Maximum installation altitude | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
| Product lifecycle | Active Product |
Key Features
BA 2x RJ45 BusAdapter for SIMATIC ET 200SP.
1 PROFINET interface with 2 ports configured as a switch and 2x RJ45.
Up to 100 m for Cu conductors.
-30 °C to 60 °C for horizontal installation; -30 °C to 50 °C for vertical installation.

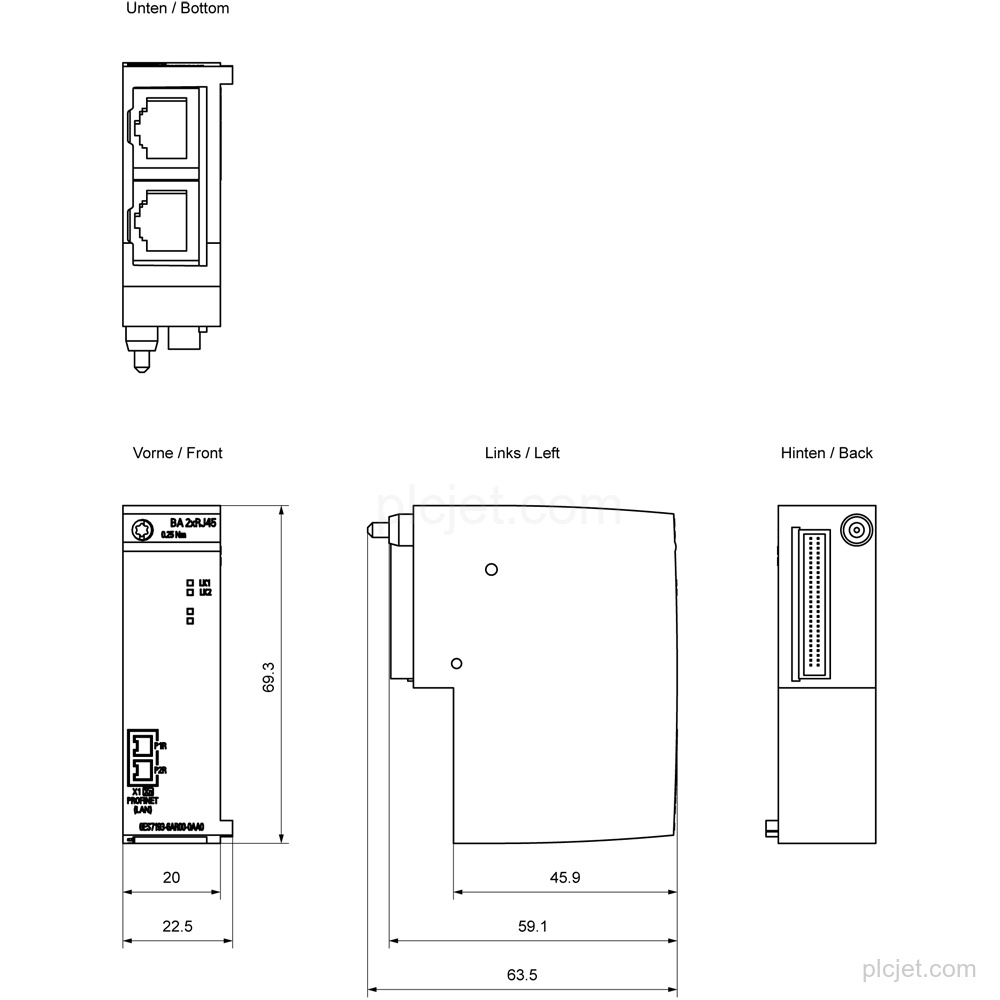

20 mm wide, 69.5 mm high, 59 mm deep; weight approx. 46 g.
Frequently Asked Questions
What is the exact type of the Siemens 6ES7193-6AR00-0AA0?
It is a SIMATIC ET 200SP BusAdapter BA 2x RJ45 with 2 RJ45 sockets.
How many PROFINET and RJ45 ports does this BusAdapter have?
It has 1 PROFINET interface with 2 switch ports and 2 RJ45 ports.
What cable length is supported for Cu conductors?
The supported cable length for Cu conductors is 100 m.
What operating temperatures apply to this configuration?
For horizontal installation, the range is -30 °C to 60 °C. For vertical installation, it is -30 °C to 50 °C.
