Product Overview
Technical Summary
| Product type designation | BA-Send 1x FC |
|---|---|
| ET connection interfaces | 1 |
| FastConnect | Yes |
| HW functional status | From FS05 |
| Horizontal installation temperature | -30 °C to 60 °C |
| Vertical installation temperature | -30 °C to 50 °C |
| Maximum installation altitude | 5 000 m above sea level; restrictions for installation altitudes > 2 000 m |
Key Features

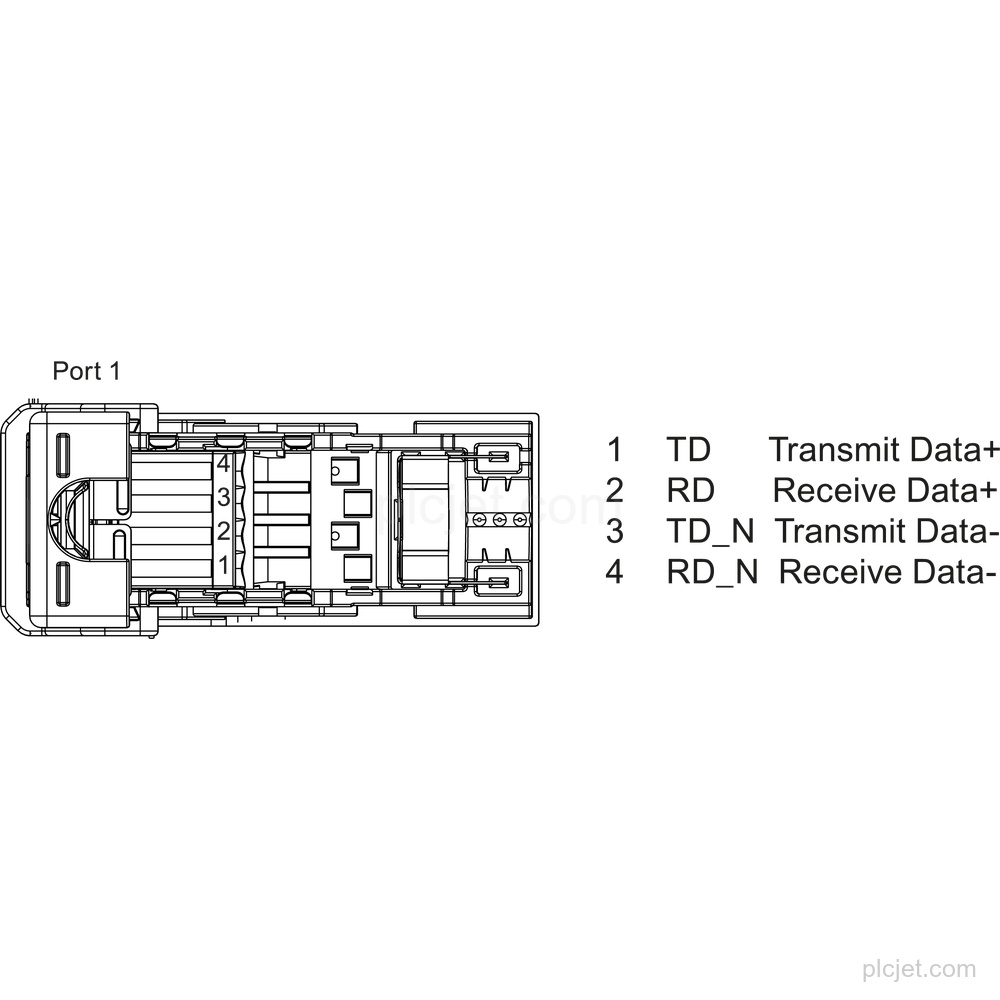

1 ET connection interface with FastConnect (FC).
15 m for Cu conductors; from IM firmware V3.3, between BA-send and the first ET-CONNECTION bus node and between all other bus nodes.
Product type designation: BA-Send 1x FC. HW functional status: From FS05.
Horizontal installation: -30 °C to 60 °C. Vertical installation: -30 °C to 50 °C.
Maximum installation altitude above sea level: 5 000 m; restrictions apply for installation altitudes > 2 000 m, see ET 200SP system manual.

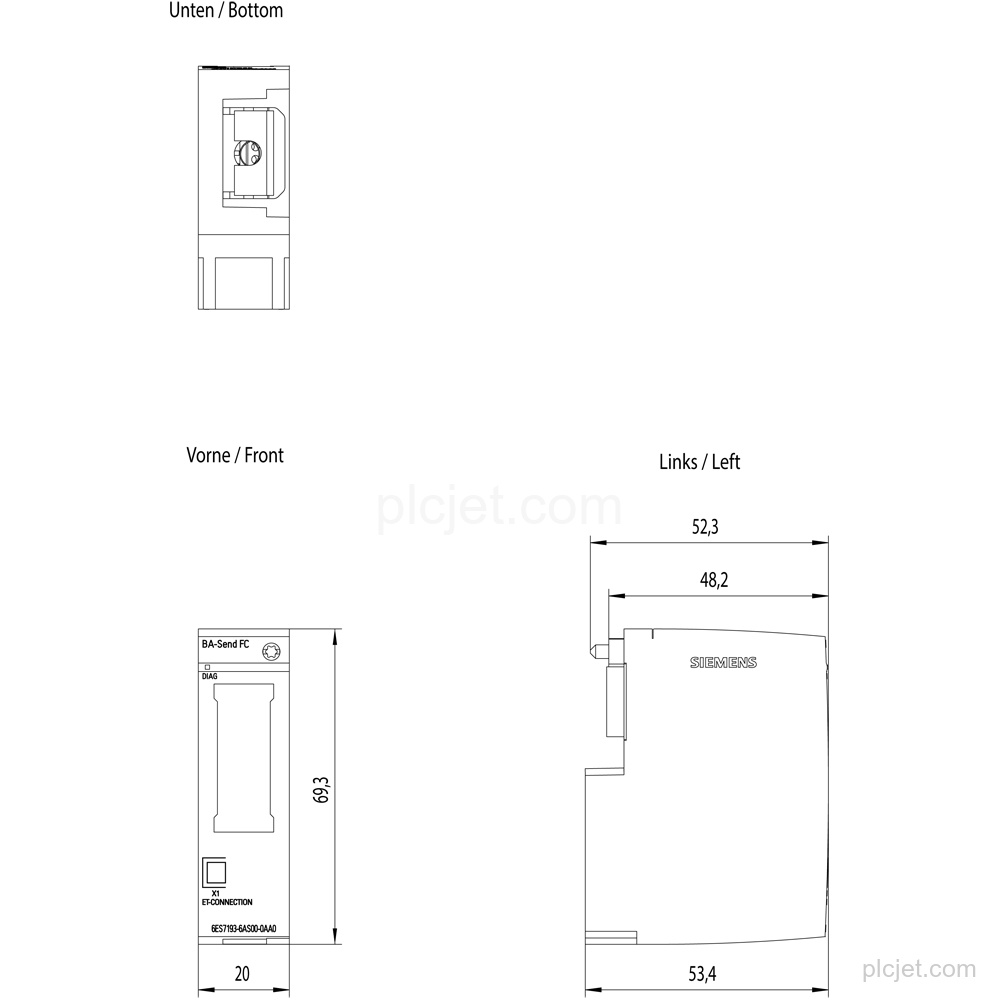

20 mm width, 69.5 mm height, 59 mm depth, and approximately 44 g weight.
Frequently Asked Questions
What exact product line item is 6ES7193-6AS00-0AA0?
It is a SIMATIC ET 200SP BusAdapter BA-SEND BA1XFC with product type designation BA-Send 1x FC.
How many ET connection interfaces and what connection type does it have?
It has 1 ET connection interface with FastConnect (FC).
What cable length is specified for Cu conductors?
The cable length is 15 m. From IM firmware V3.3, this applies between BA-send and the first ET-CONNECTION bus node and between all other bus nodes.
What installation temperatures should be retained for verification?
For horizontal installation, the range is -30 °C to 60 °C. For vertical installation, it is -30 °C to 50 °C.
What quantity, destination, schedule, and additional BOM lines should be included in a quotation request?
Include the requested quantity, destination, schedule context, and any additional BOM lines with the exact 6ES7193-6AS00-0AA0 line item.
