Product Overview
Applications

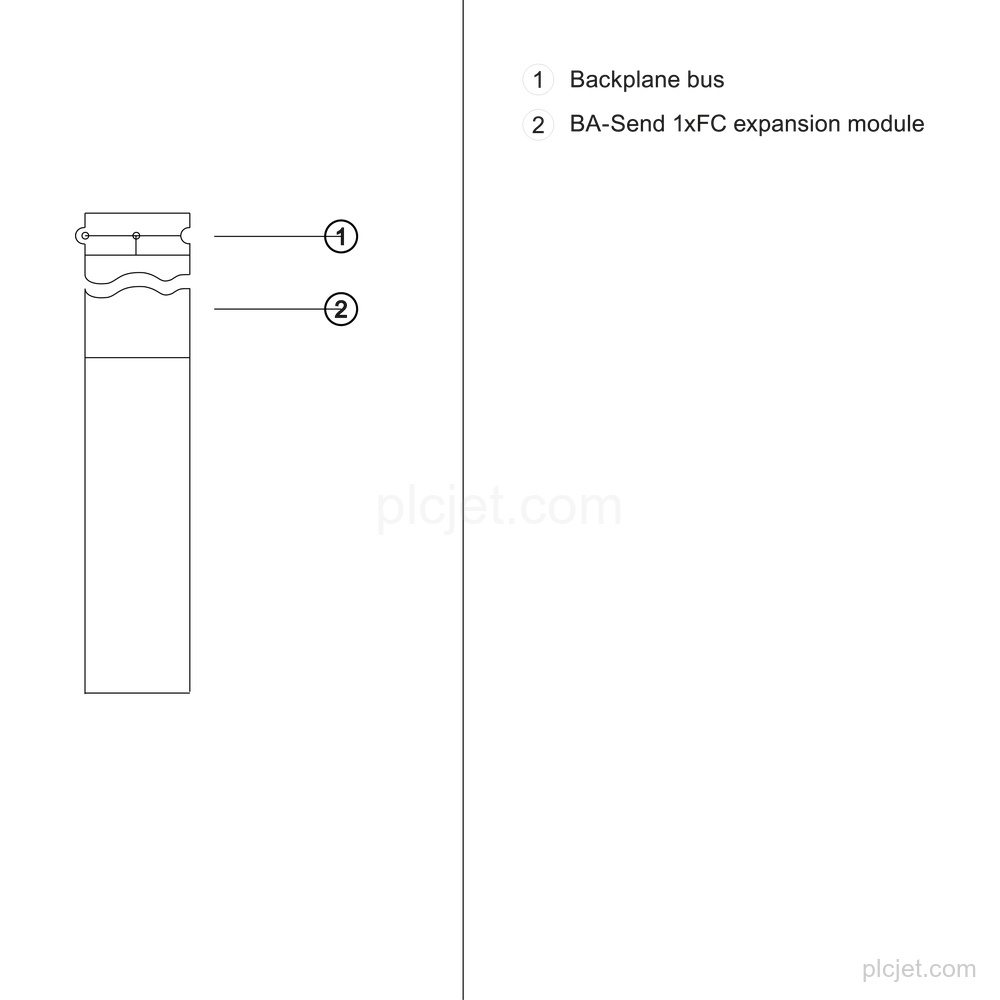

Supports station expansion of SIMATIC ET 200SP via an ET connection.
Technical Summary
| Product | SIMATIC ET 200SP BaseUnit BU-SEND |
|---|---|
| Order number | 6ES7193-6BN00-0NE0 |
| Function | Station expansion via ET connection |
| Number of slots | 1 |
| Horizontal installation temperature | -30 °C to 60 °C |
| Vertical installation temperature | -30 °C to 50 °C |
| Maximum installation altitude | 2 000 m above sea level; greater than 2 000 m on request |
| HW functional status | from FS04 |
Key Features
BaseUnit BU-SEND supports station expansion of SIMATIC ET 200SP via an ET connection.
Number of slots: 1.

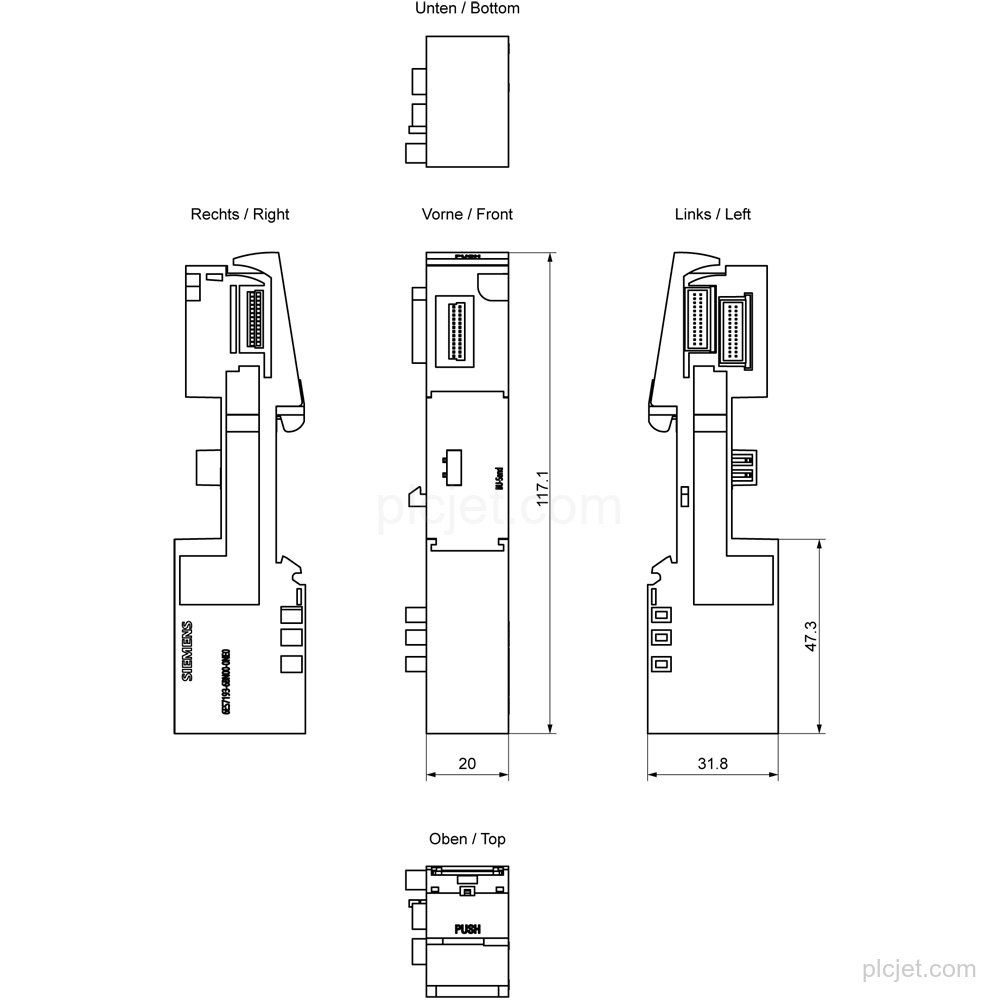

Width: 20 mm; height: 117 mm; depth: 35 mm.
For horizontal installation: -30 °C to 60 °C. For vertical installation: -30 °C to 50 °C.
Maximum installation altitude above sea level: 2 000 m; installation altitudes greater than 2 000 m are available on request.
HW functional status: from FS04. The source lists use in hazardous locations and maritime application.
Frequently Asked Questions
What is Siemens 6ES7193-6BN00-0NE0?
It is a SIMATIC ET 200SP BaseUnit BU-SEND for station expansion via an ET connection.
How many slots does this BaseUnit have?
It has 1 slot.
What are the mounting dimensions?
The dimensions are 20 mm wide, 117 mm high, and 35 mm deep.
