Product Overview
Technical Summary
| Product type | BU type A0 |
|---|---|
| Rated supply voltage | 24 V DC |
| Process terminals | 16; Pro slot |
| Terminal type | Push-in terminal |
| AUX terminals | 0 |
| P1 and P2 bus current carrying capacity | Max. 10 A |
| Process terminal current carrying capacity | Max. 2 A |
| Horizontal installation ambient temperature | -30 °C to 60 °C |
| Vertical installation ambient temperature | -30 °C to 50 °C |
| Potential group | Continued from the left |
Key Features
BU15-P16+A0+2B, BU type A0, bridged to the left.

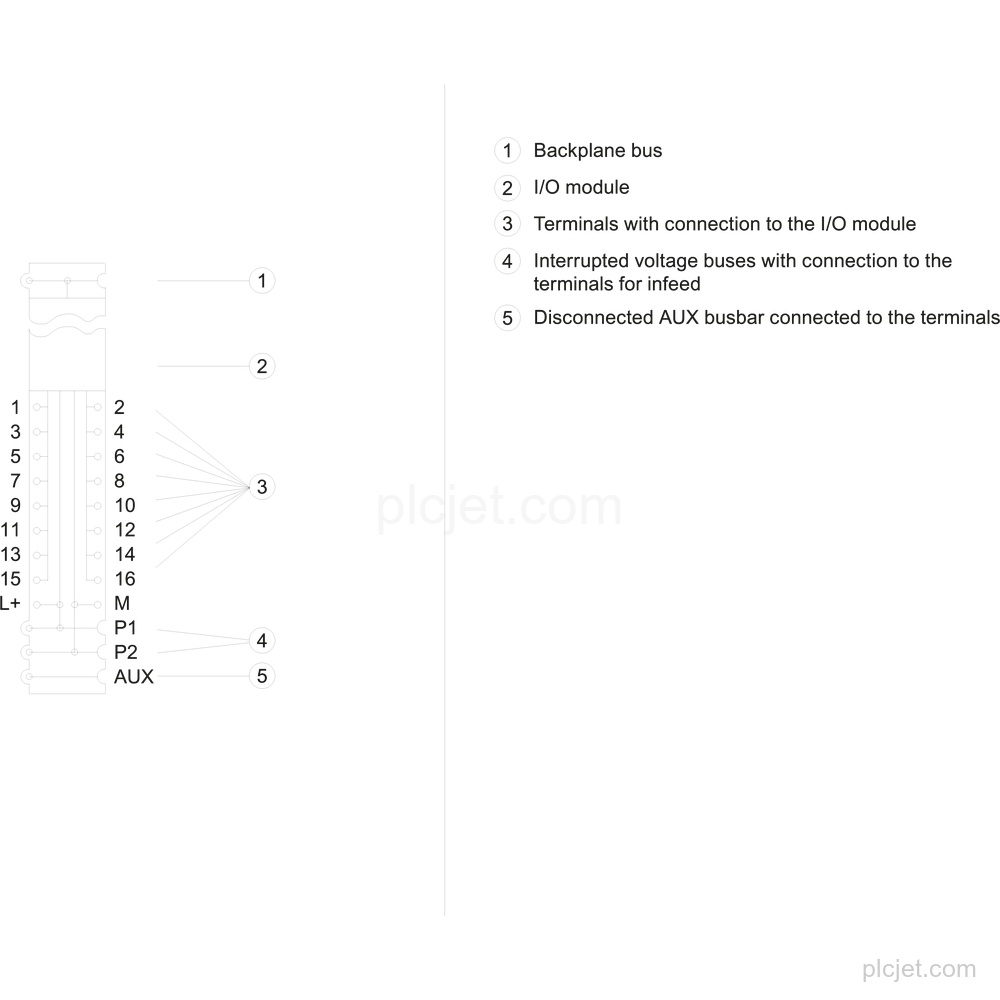

Push-in terminals with 16 process terminals to the I/O module; AUX terminals are not included.
Rated supply: 24 V DC. Current carrying capacity: max. 10 A for the P1 and P2 bus and max. 2 A for process terminals.

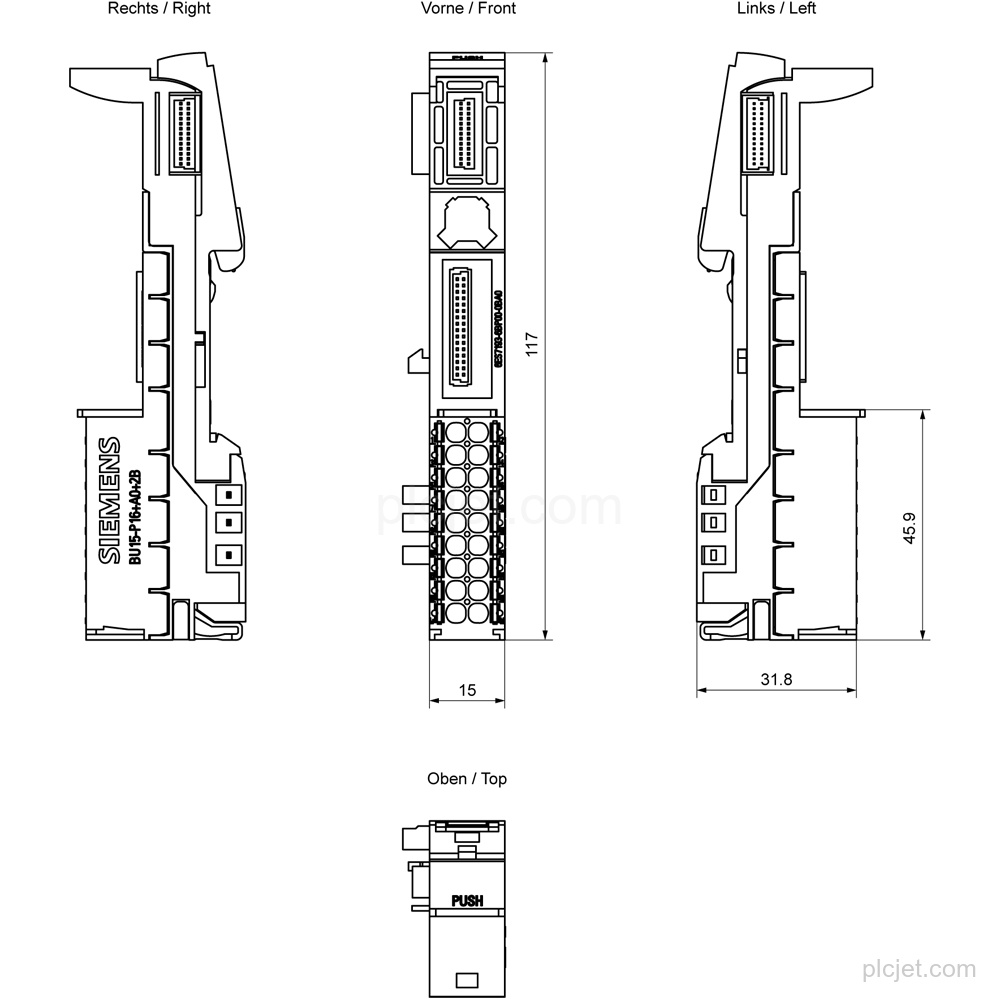

Width: 15 mm; height: 117 mm; depth: 35 mm. Horizontal installation ambient temperature: -30 °C to 60 °C; vertical installation: -30 °C to 50 °C.
Frequently Asked Questions
What exact configuration does Siemens 6ES7193-6BP00-0BA0 use?
It is a SIMATIC ET 200SP BaseUnit BU15-P16+A0+2B with BU type A0, bridged to the left.
What terminals are included in this configuration?
It has Push-in terminals and 16 process terminals to the I/O module. It is without AUX terminals.
What supply and current limits apply?
Rated supply is 24 V DC. Current carrying capacity is max. 10 A for the P1 and P2 bus and max. 2 A for process terminals.
What installation temperatures are supported?
For horizontal installation, the ambient temperature is -30 °C to 60 °C. For vertical installation, it is -30 °C to 50 °C.
What project quotation details should I provide?
Provide the requested quantity, destination, schedule context, and any additional BOM lines.
