Product Overview
Technical Summary
| Product type | BU type A0 |
|---|---|
| Rated supply voltage | 24 V DC |
| Process terminals | 16 |
| P1 and P2 bus terminals | 2 |
| Maximum current, P1 and P2 bus | 10 A |
| Maximum current, process terminals | 2 A |
| Terminal type | Push-in terminal |
| Potential group | New potential group |
| Horizontal installation temperature | -30 °C to 60 °C |
| Vertical installation temperature | -30 °C to 50 °C |
Key Features
BU15-P16+A0+2D with BU type A0, 1 slot, and a new potential group.

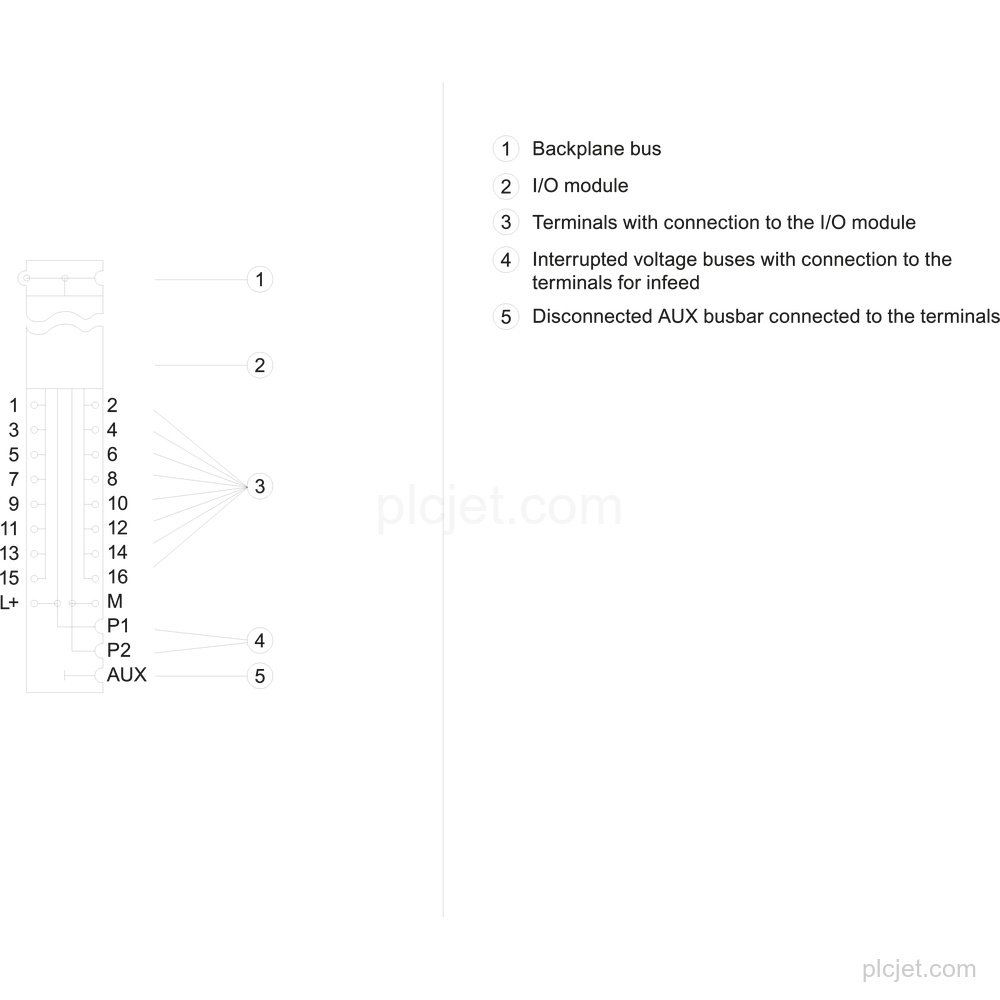

The unit has 16 process terminals, 2 terminals connected to the P1 and P2 bus, and no AUX bus or add-on terminals.
Rated supply voltage: 24 V DC. External power-supply protection: 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic.
Maximum current carrying capacity is 10 A for the P1 and P2 bus and 2 A for process terminals.

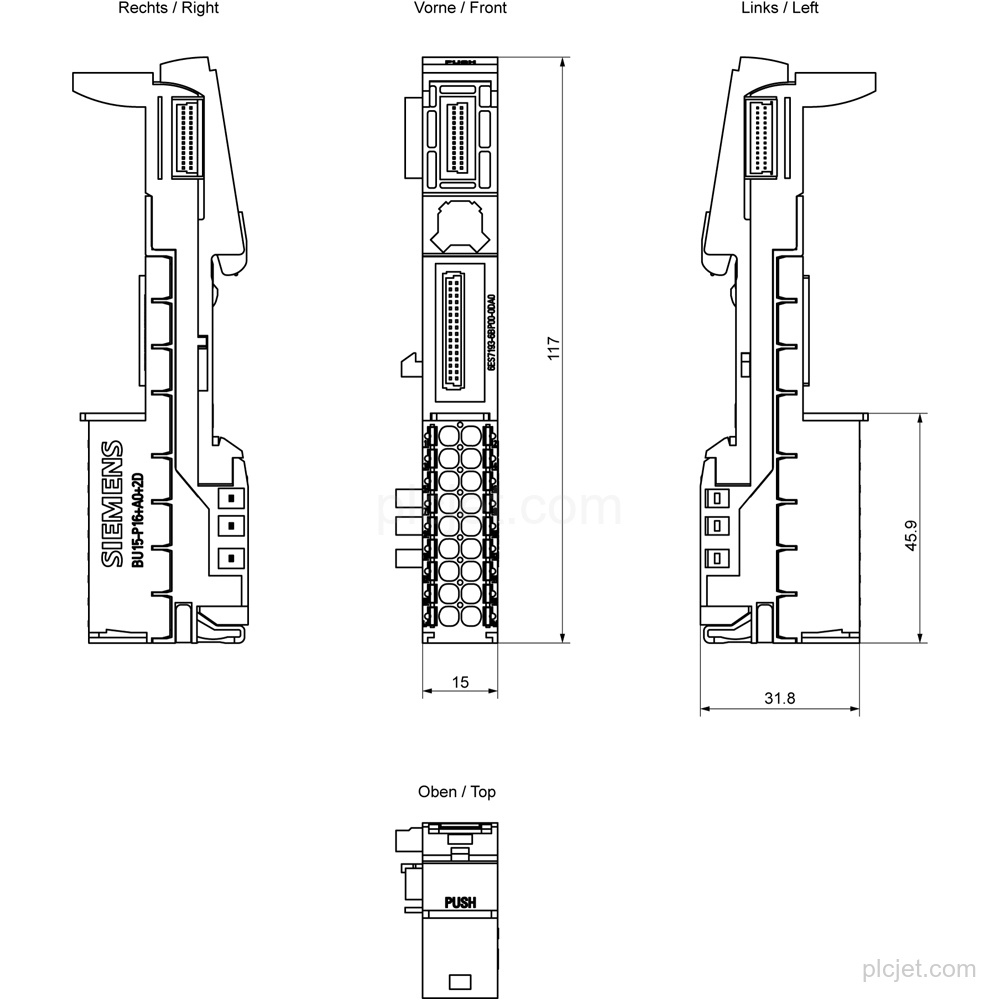

Dimensions are 15 mm wide, 117 mm high, and 35 mm deep; weight is approximately 40 g.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7193-6BP00-0DA0?
It is a SIMATIC ET 200SP BaseUnit BU15-P16+A0+2D with BU type A0.
How many process terminals does this BaseUnit have?
It has 16 process terminals and 2 terminals with connection to the P1 and P2 bus.
What supply and external protection are specified?
The rated supply voltage is 24 V DC. External protection is a 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic.
What are the dimensions and installation temperature limits?
The dimensions are 15 mm x 117 mm x 35 mm. For horizontal installation, the temperature range is -30 °C to 60 °C; for vertical installation, it is -30 °C to 50 °C.
