Product Overview
Technical Summary
| Product type | BaseUnit BU20-P16+A0+2D, BU type U0 |
|---|---|
| Process terminals | 16 to I/O module |
| Potential group | New potential group: Yes |
| Bus terminals | 2 with connection to P1 and P2 bus |
| Terminal type | Push-in terminal |
| Supply voltage | P1/P2 bus: 120 V DC; 277 V AC |
| Current carrying capacity | Up to 60 °C, max. 10 A |
| Potential separation | Between backplane bus and supply voltage: Yes |
| Lifecycle | Active Product |
Key Features

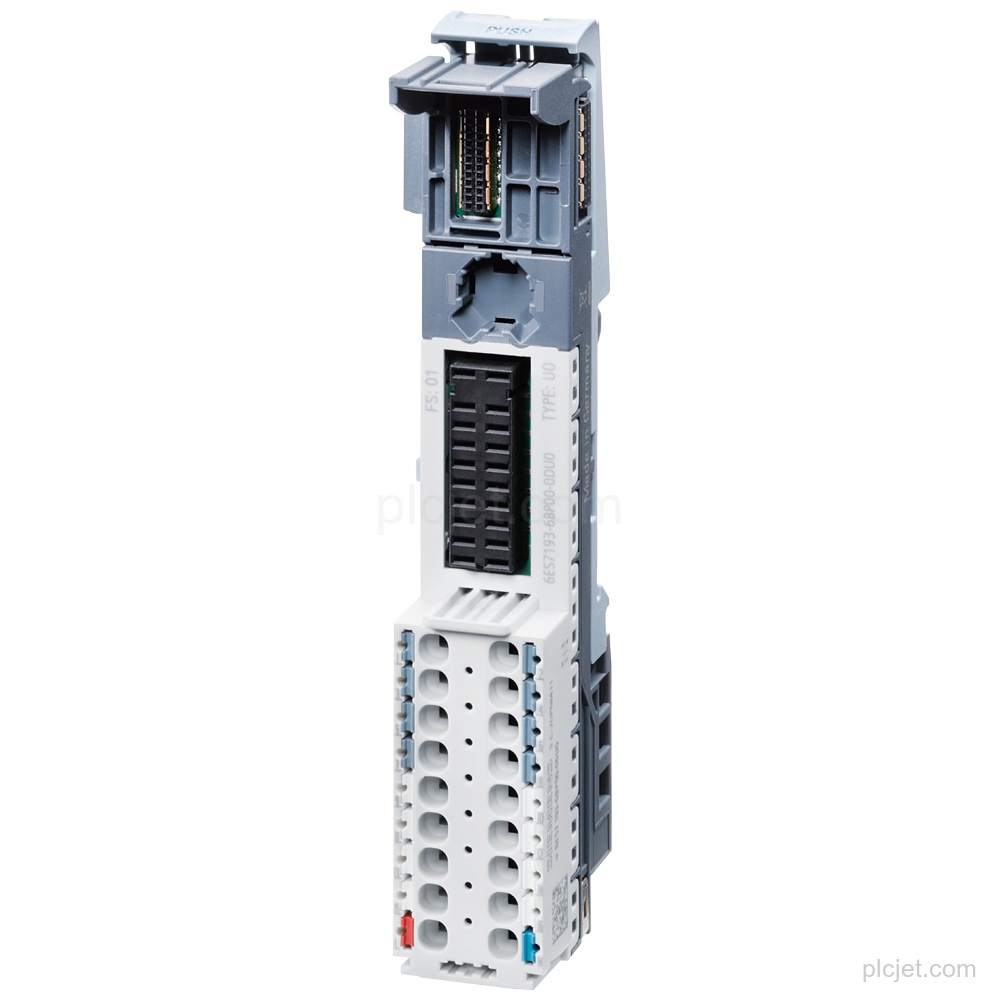

BU20-P16+A0+2D with BU type U0 and automatic encoding.
Has 16 process terminals to the I/O module and 2 terminals with connection to the P1 and P2 bus.
Forms a new potential group and does not continue the potential group from the left.
For the P1 and P2 bus, AUX bus, and process terminals: 120 V DC or 277 V AC as specified.
Push-in terminal type; conductor cross-section is 0.14 mm2 to 2.5 mm2, with the stated ferrule restrictions.

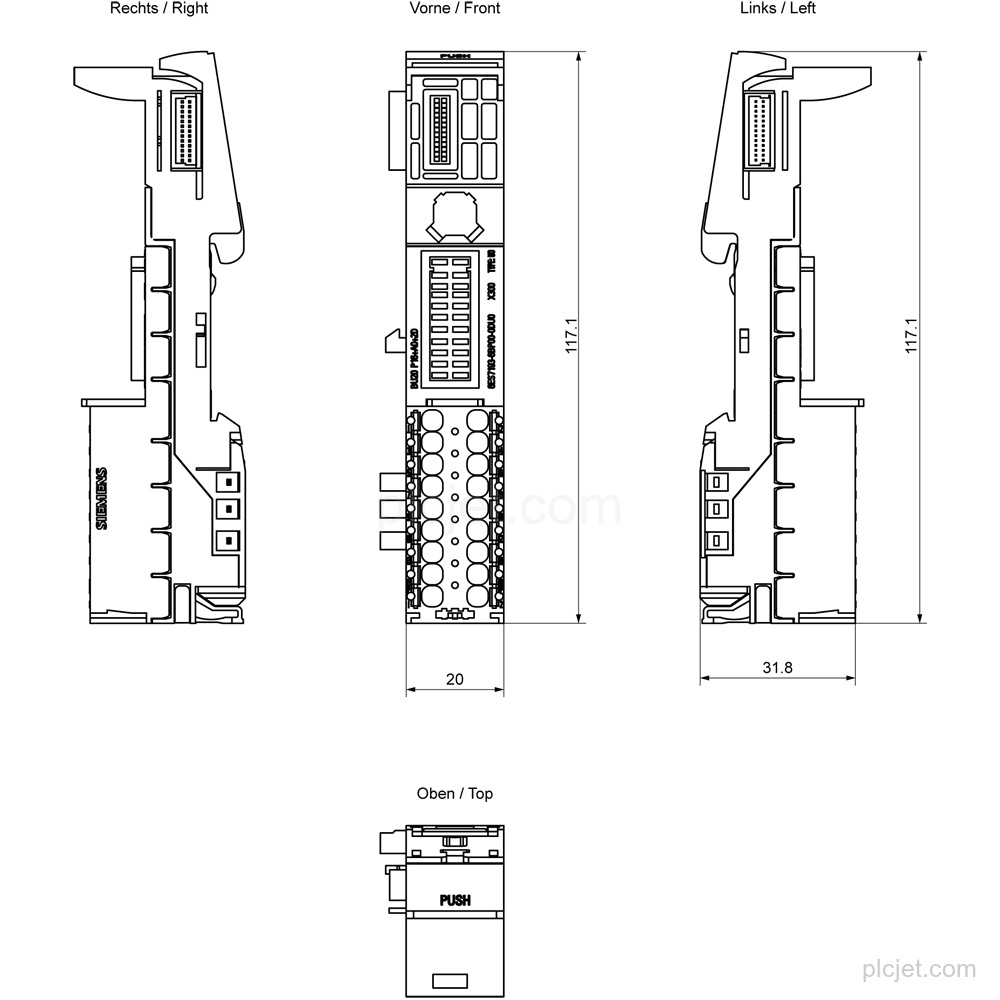

Measures 20 mm wide, 117 mm high, and 35 mm deep; approximate weight is 50 g.
Frequently Asked Questions
What is the exact Siemens line item?
It is 6ES7193-6BP00-0DU0, a SIMATIC ET 200SP BaseUnit BU20-P16+A0+2D with BU type U0.
How many process terminals does this BaseUnit have?
It has 16 process terminals to the I/O module.
What terminal type and conductor sizes are supported?
It has Push-in terminals. The conductor cross-section is 0.14 mm2 to 2.5 mm2, with the stated restrictions for wire end ferrules.
Does the configuration form a new potential group?
Yes. It forms a new potential group and does not continue the potential group from the left.
What should be provided for a quotation request?
Provide the requested quantity, destination, schedule context, and any additional BOM lines for this exact line item.
