Product Overview
Technical Summary
| Product type | SIMATIC ET 200SP BaseUnit, BU type A0 |
|---|---|
| Supply voltage | Rated value: 24 V DC |
| Process terminals | 16; maximum 2 A |
| AUX terminals | 10; maximum 10 A for AUX bus |
| P1 and P2 bus | Maximum 10 A |
| Terminal type | Push-in terminal |
| Installation | Horizontal: -30 °C to 60 °C; vertical: -30 °C to 50 °C |
| Potential group | Continued from the left; new potential group: No |
| Shield connection | System-integrated; Optional |
| Hardware functional status | From FS06 |
Key Features
SIMATIC ET 200SP BaseUnit BU type A0, order number 6ES7193-6BP20-0BA0.

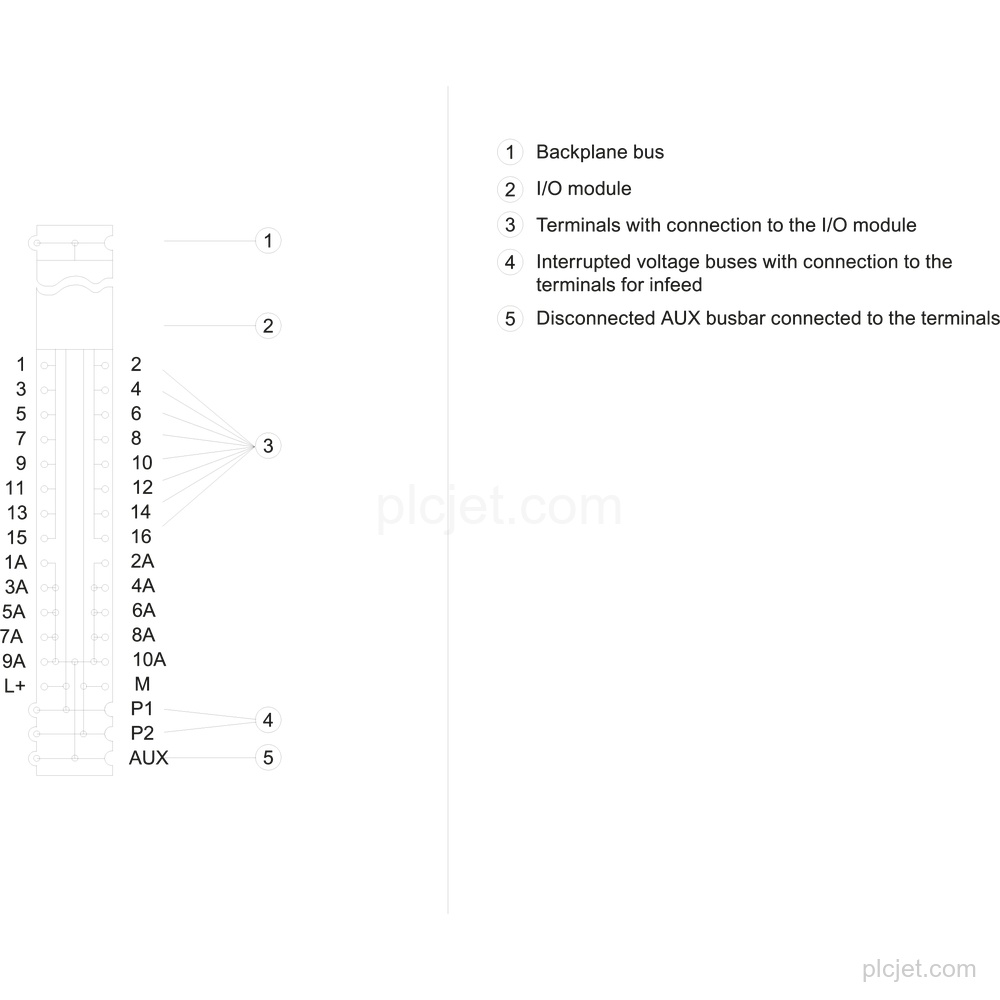

Push-in terminal type with 16 process terminals to the I/O module and 10 terminals to the AUX bus.
10 AUX terminals, bridged to the left; system-integrated shield connection is optional.
Maximum 10 A for the P1 and P2 bus and AUX bus; maximum 2 A for process terminals.

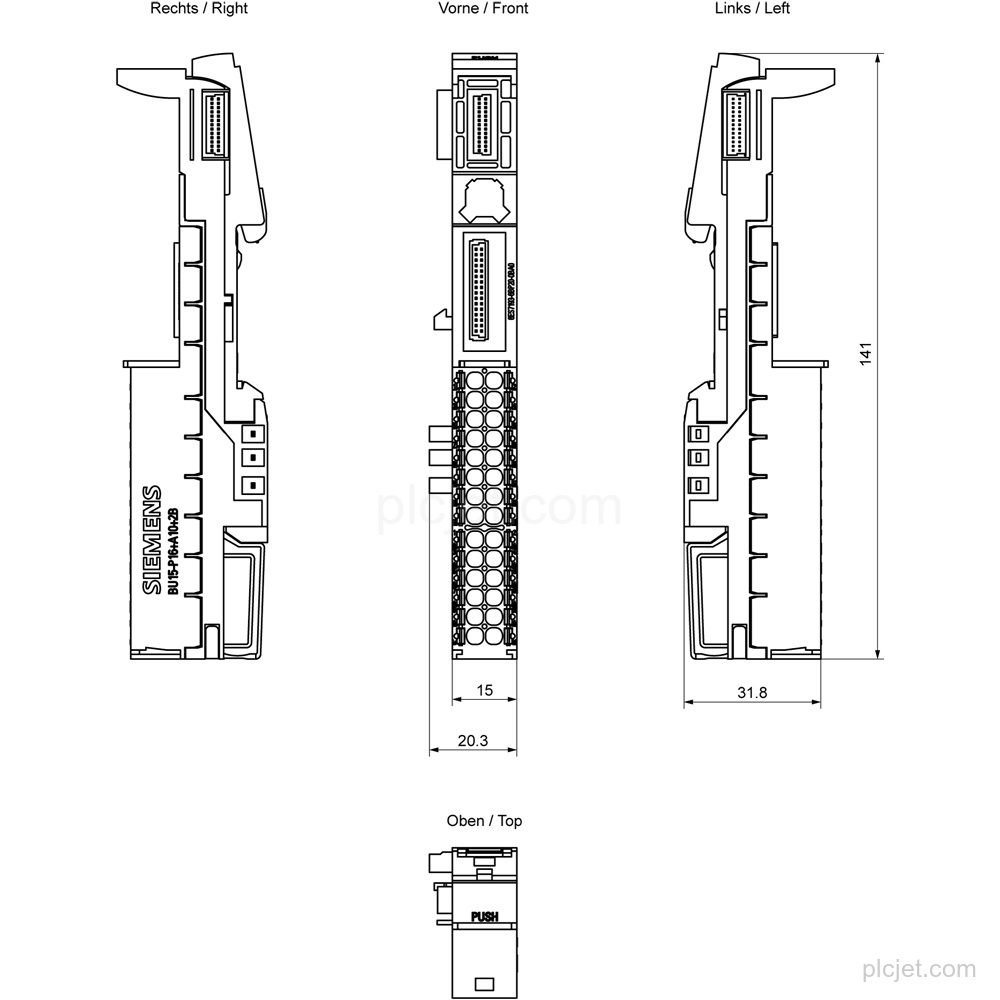

Width: 15 mm; height: 141 mm; depth: 35 mm.
Rated supply voltage: 24 V DC. External protection: 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic.
Frequently Asked Questions
What is the exact Siemens line item?
It is the Siemens 6ES7193-6BP20-0BA0 SIMATIC ET 200SP BaseUnit, BU type A0.
How many terminals does this BaseUnit have?
It has 16 process terminals and 10 AUX terminals. The AUX terminals are bridged to the left.
What are the current limits?
The maximum is 10 A for the P1 and P2 bus and AUX bus, and 2 A for process terminals.
What are the dimensions and installation temperature limits?
The dimensions are 15 mm x 141 mm x 35 mm. For horizontal installation, the range is -30 °C to 60 °C; for vertical installation, it is -30 °C to 50 °C.
