Product Overview
Technical Summary
| Product | SIMATIC ET 200SP BaseUnit BU20-P12+A4+0B |
|---|---|
| Product type | BU type B0 |

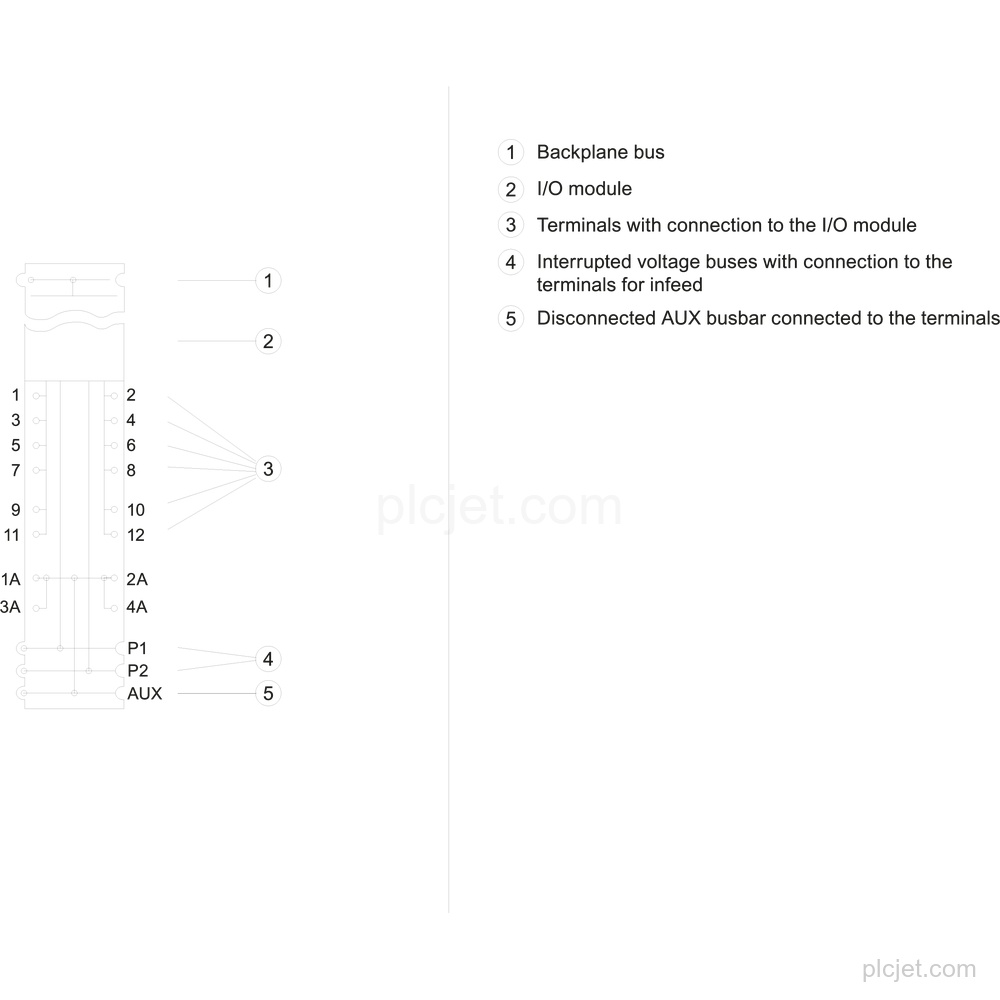

| Terminals | Push-in terminal; 4 AUX terminals bridged to the left |
| Supply voltage | 24 V for P1 and P2 bus, AUX bus, and process terminals |
| Current carrying capacity | 10 A maximum for P1 and P2 bus and AUX bus; 5 A maximum for process terminals |
| Hardware functional status | FS10 and higher |
| Potential separation | Between backplane bus and supply voltage; between process terminals and supply voltage for process terminals 1 to 8 |
Key Features
BU type B0.
Push-in terminals with 4 AUX terminals bridged to the left.
24 V for P1 and P2 bus, AUX bus, and process terminals; the AUX bus is an equal potential group to the P1/P2 bus or PE.
10 A maximum for P1 and P2 bus and AUX bus; 5 A maximum for process terminals.
20 mm width, 117 mm height, 35 mm depth, and approximately 48 g weight.
Potential separation exists between the backplane bus and supply voltage, and between process terminals and supply voltage for process terminals 1 to 8.
Frequently Asked Questions
What exact product is 6ES7193-6BP20-0BB0?
It is a SIMATIC ET 200SP BaseUnit BU20-P12+A4+0B with BU type B0.
What terminals does this configuration have?
It has Push-in terminals and 4 AUX terminals bridged to the left. The system-integrated shield connection is optional.
What supply voltage is specified?
The source specifies 24 V for the P1 and P2 bus, AUX bus, and process terminals. The AUX bus is an equal potential group to the P1/P2 bus or PE.

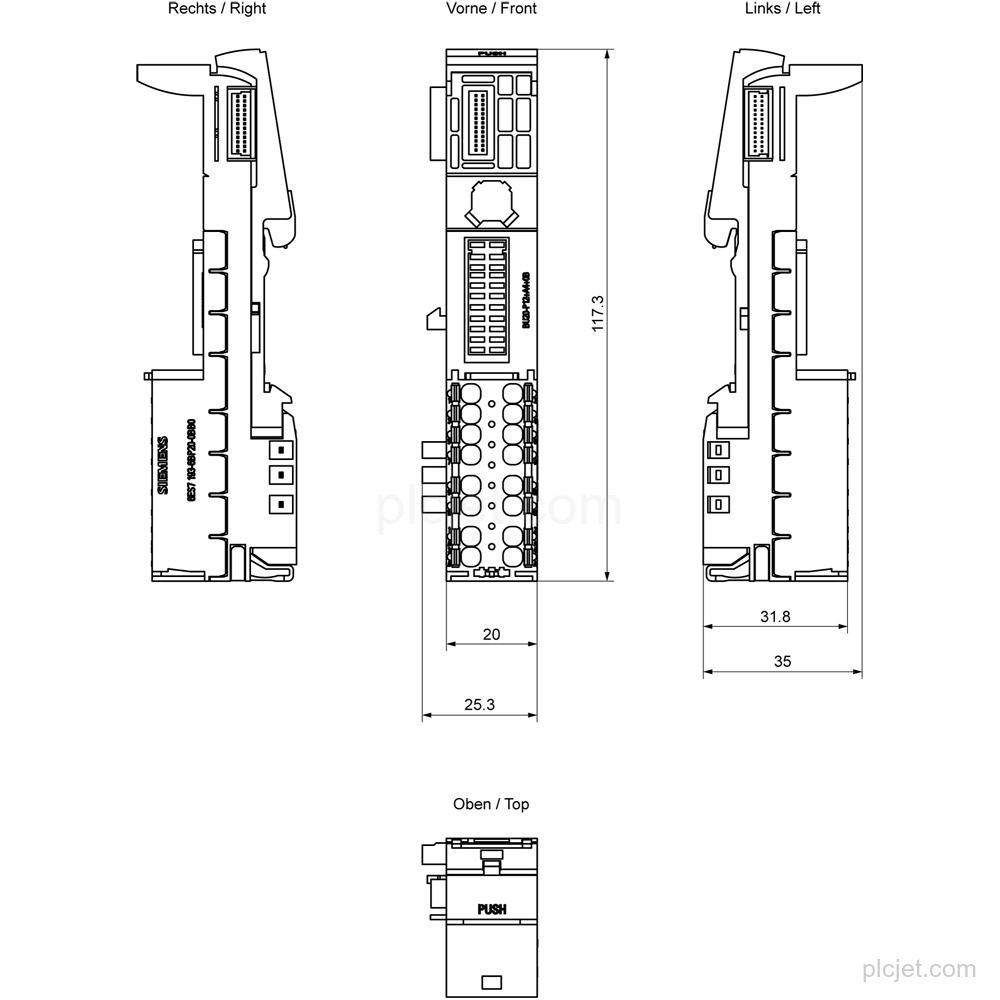

What are the mounting dimensions and weight?
The dimensions are 20 mm width, 117 mm height, and 35 mm depth. Weight is approximately 48 g.
