Product Overview
Applications
The product has a general product approval for use in hazardous locations.
The source lists a maritime application under FM CCC-Ex.
Technical Summary
| Product | 6ES7193-6BP20-0BB1 |
|---|---|
| Product type | SIMATIC ET 200SP BaseUnit BU20-P12+A0+4B |
| BU type | B1 |
| Terminal type | Push-in terminal |
| Process terminals to I/O module | 12; Pro slot |
| Supply voltage for P1 and P2 bus | 24 V or 230 V |
| Current carrying capacity for P1 and P2 bus | 10 A max.; up to 60 °C |
| Current carrying capacity for process terminals | 5 A max. |
| Potential separation | Between backplane bus and supply voltage; between power bus and supply voltage |
| Product lifecycle | Active Product |
Key Features

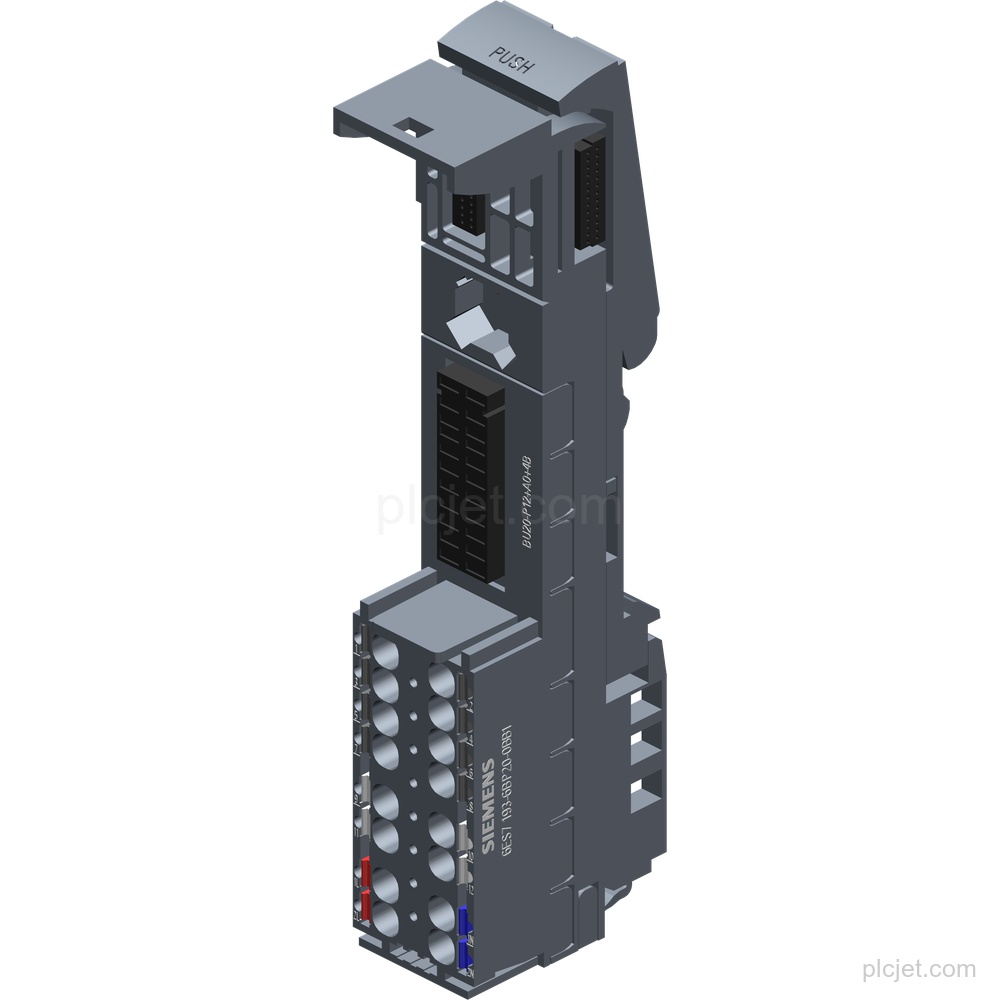

BaseUnit BU20-P12+A0+4B with BU type B1, bridged to the left.
Push-in terminal type; without auxiliary terminals and without system-integrated shield connection.

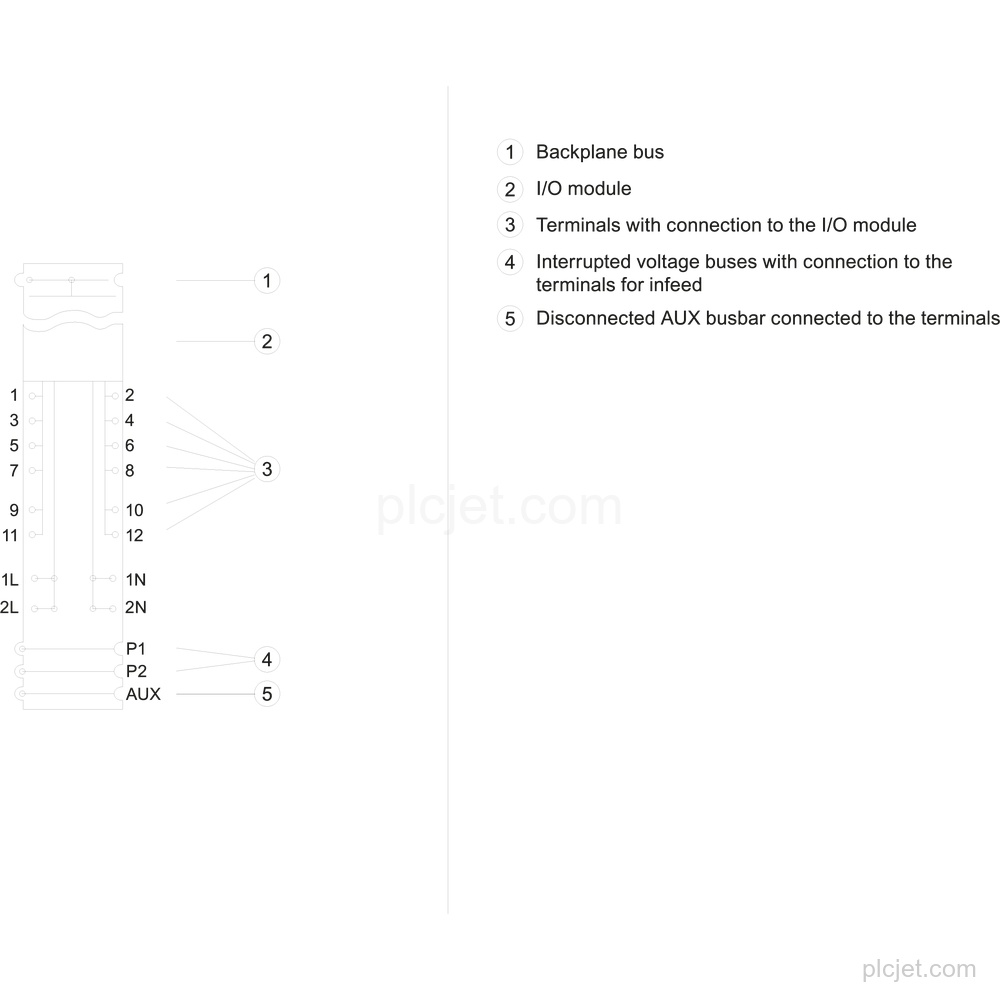

12 process terminals to the I/O module; 0 terminals to the AUX bus and 0 add-on terminals.
24 V or 230 V for the P1 and P2 bus, AUX bus, and process terminals; external protection for power supply lines: Yes.
Maximum 10 A for the P1 and P2 bus and AUX bus up to 60 °C; maximum 5 A for process terminals.

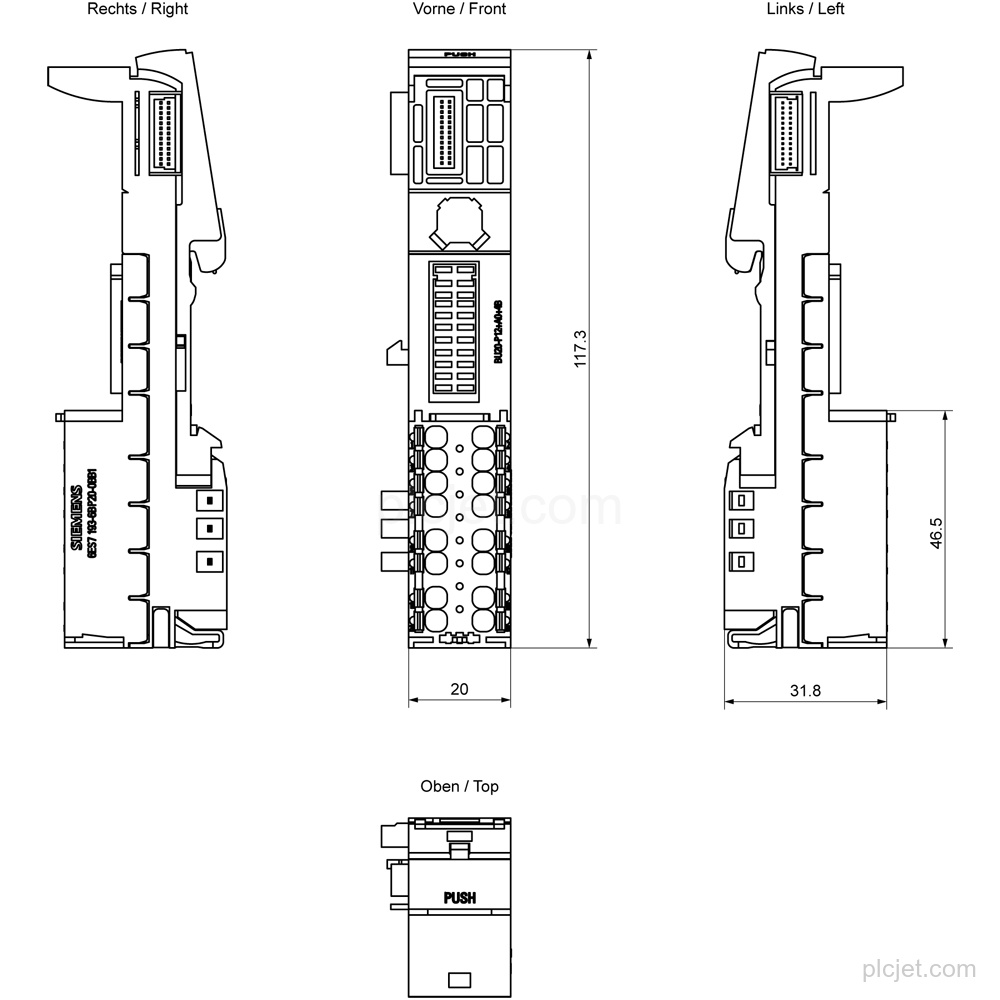

Width: 20 mm; height: 117 mm; depth: 35 mm; weight, approx.: 48 g.
Frequently Asked Questions
What exact product is 6ES7193-6BP20-0BB1?
It is a Siemens SIMATIC ET 200SP BaseUnit BU20-P12+A0+4B with BU type B1.
Which terminals does this BaseUnit have?
It has push-in terminals and 12 process terminals to the I/O module. It has 0 terminals to the AUX bus and 0 add-on terminals.
What supply voltages are supported?
The source lists 24 V and 230 V for the P1 and P2 bus, AUX bus, and process terminals.
What are the dimensions and weight?
Width is 20 mm, height is 117 mm, depth is 35 mm, and weight is approximately 48 g.
Can this line item be included in a project quotation?
Yes. Submit the requested quantity, destination, schedule context, and any additional BOM lines for quotation review.
