Product Overview
Technical Summary
| I/O capacity | 8 digital inputs; 3 digital outputs |
|---|---|
| Rated supply voltage | 24 V DC |
| Output current | 2 A rated value; 2.4 A permissible maximum |
| PROFINET interface | 1; M12 port; up to 100 Mbit/s |
| Safety protocol | PROFIsafe |
| Protection | IP65/67 |
| Connector | eCoding plug-in connector |
| Firmware version | V1.0.0 |
| Configuration | STEP 7 TIA Portal from V15 with HSP 204 |
Key Features
8 digital inputs and 3 digital outputs; inputs support 8 one-channel or 4 two-channel operation.
Rated supply voltage: 24 V DC. Output current: 2 A rated value per signal 1, with 2.4 A permissible maximum.
1 PROFINET interface with an M12 port, integrated switch and transmission rate up to 100 Mbit/s.
PROFIsafe is supported; the module has up to PL e (ISO 13849) and up to SIL 3 (IEC 61508).
IP65/67 degree of protection; including eCoding plug-in connector.
Frequently Asked Questions
What is the exact Siemens line item?

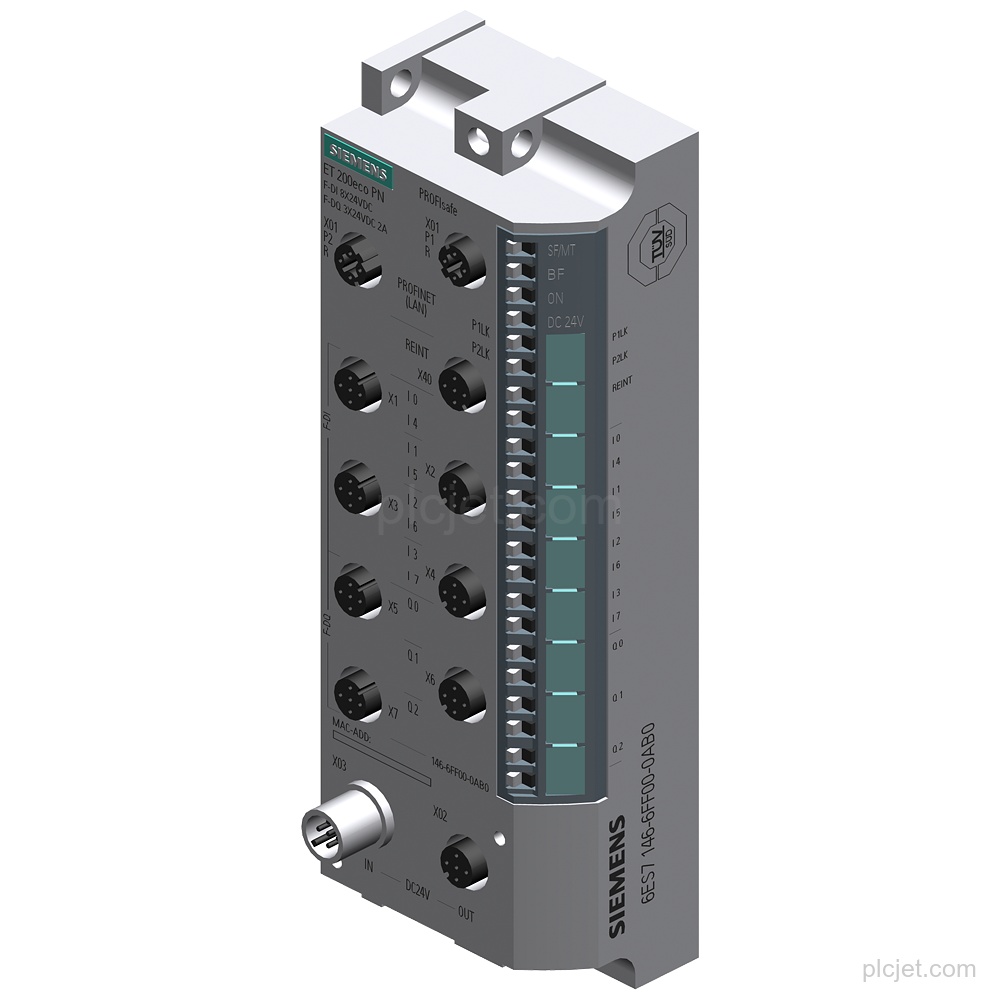

It is Siemens 6ES7146-6FF00-0AB0, a SIMATIC DP ET 200eco PN module with F-DI 8×24 V and F-DQ 3×24 V 2 A.
What I/O capacity does this configuration have?
It has 8 digital inputs and 3 digital outputs. The inputs support 8 one-channel or 4 two-channel operation.
Which interface and safety protocol are provided?
It has 1 PROFINET interface with an M12 port and supports PROFIsafe.
What is included in the configuration?
It includes an eCoding plug-in connector. Submit the requested quantity, destination, schedule context and any additional BOM lines with your inquiry.
