Product Overview
Technical Summary
| Product | 6ED1055-1CB00-0BA2 |
|---|---|
| Module type | LOGO! DM8 24 expansion module for LOGO! 8 |

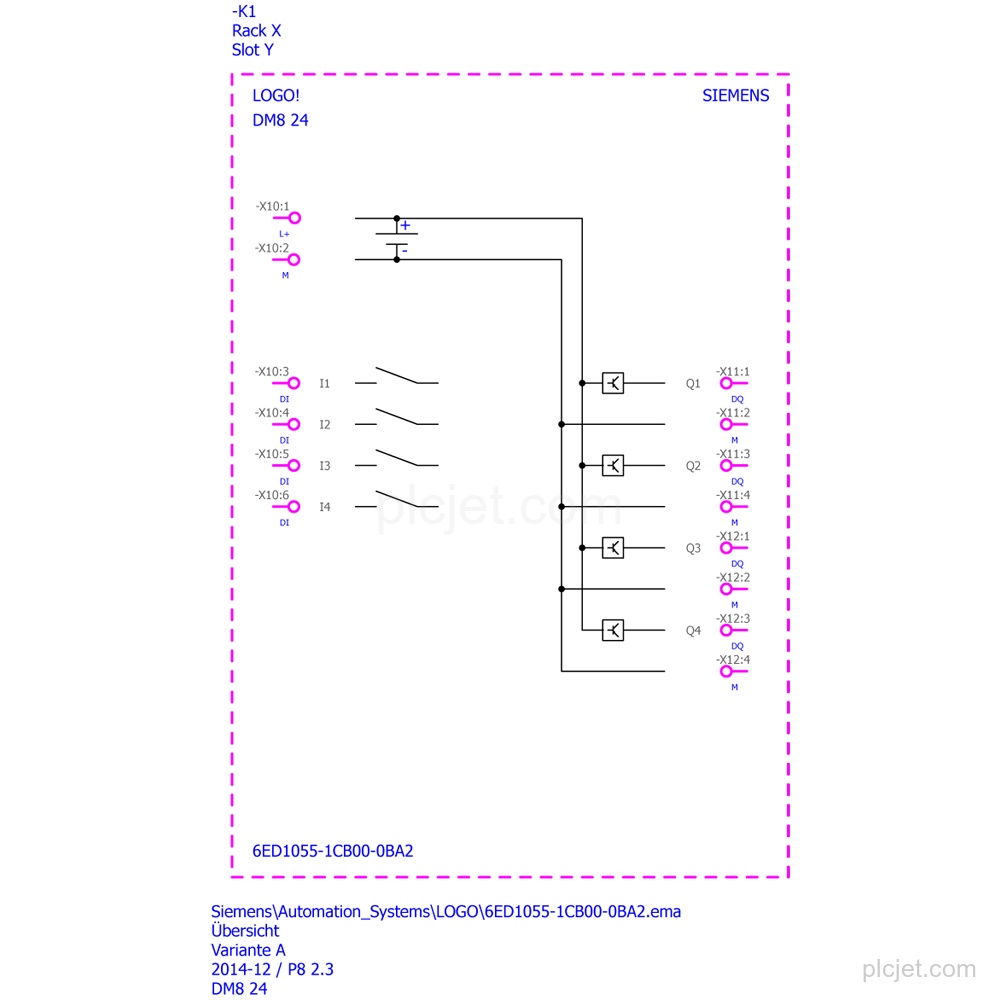

| Digital inputs | 4 |
| Digital outputs | 4 |
| Rated value | 24 V DC |
| Permissible DC range | 20.4 V to 28.8 V |

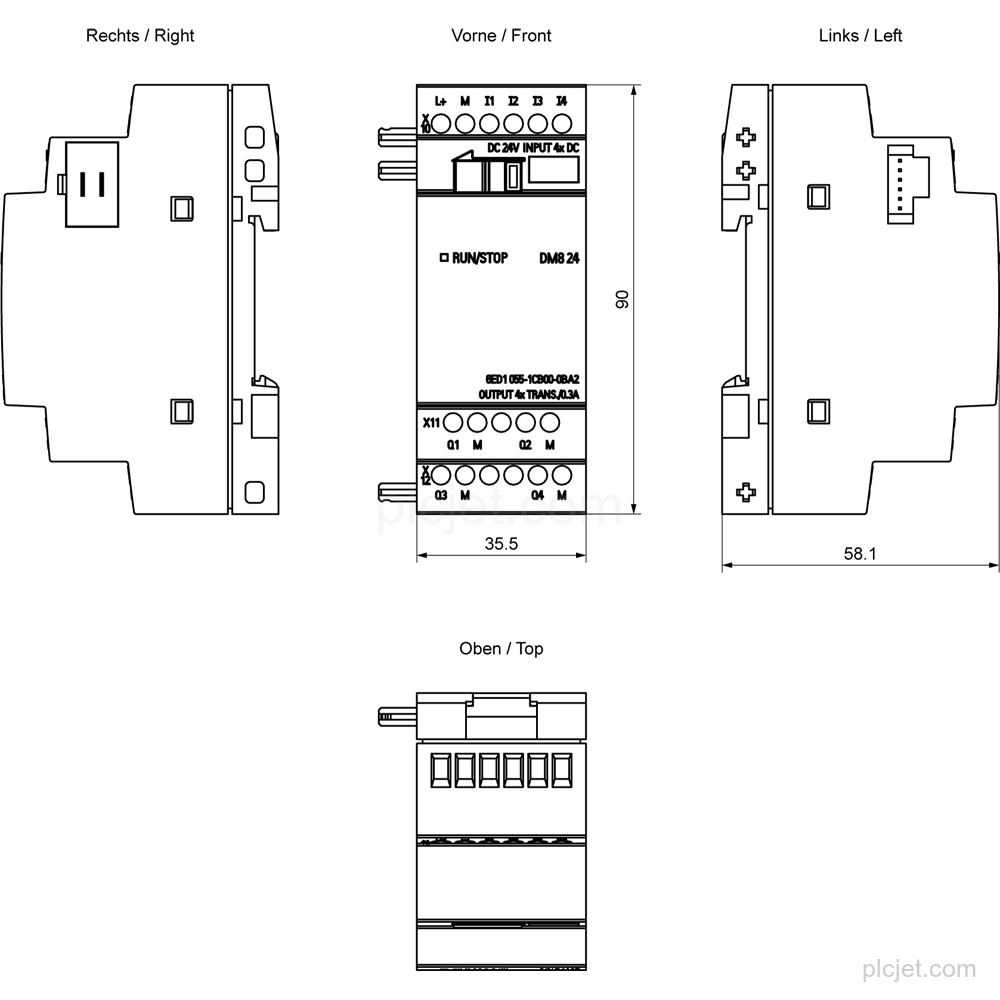

| Mounting | 35 mm DIN rail, 2 spacing units wide |
| Output protection | Short-circuit protection: Yes |
| Protection rating | IP20 |
Key Features
Digital I/O
Has 4 digital inputs and 4 digital outputs.
Rated supply
Rated value: 24 V DC; permissible range: 20.4 V to 28.8 V.
Mounting
Mounts on a 35 mm DIN rail and is 2 spacing units wide.
Output protection
Digital outputs have short-circuit protection.
Protection rating
IP degree of protection: IP20.
Frequently Asked Questions
What is the exact product and I/O configuration?
It is Siemens 6ED1055-1CB00-0BA2, a LOGO! DM8 24 expansion module for LOGO! 8 with 4 digital inputs and 4 digital outputs.
What supply range does this module have?
The rated value is 24 V DC, with a permissible range from 20.4 V to 28.8 V.
How is the module mounted?
It mounts on a 35 mm DIN rail and is 2 spacing units wide.
