Product Overview
Technical Summary
| Product | 6ED1055-1CB10-0BA2 |
|---|---|
| Module type | LOGO! DM16 24 expansion module for LOGO! 8 |
| Digital inputs | 8 |
| Digital outputs | 8 |
| Supply | 24 V DC; permissible range from 20.4 V to 28.8 V |
| Output type | Transistor |
| Rated signal-1 output current | 0.3 A |

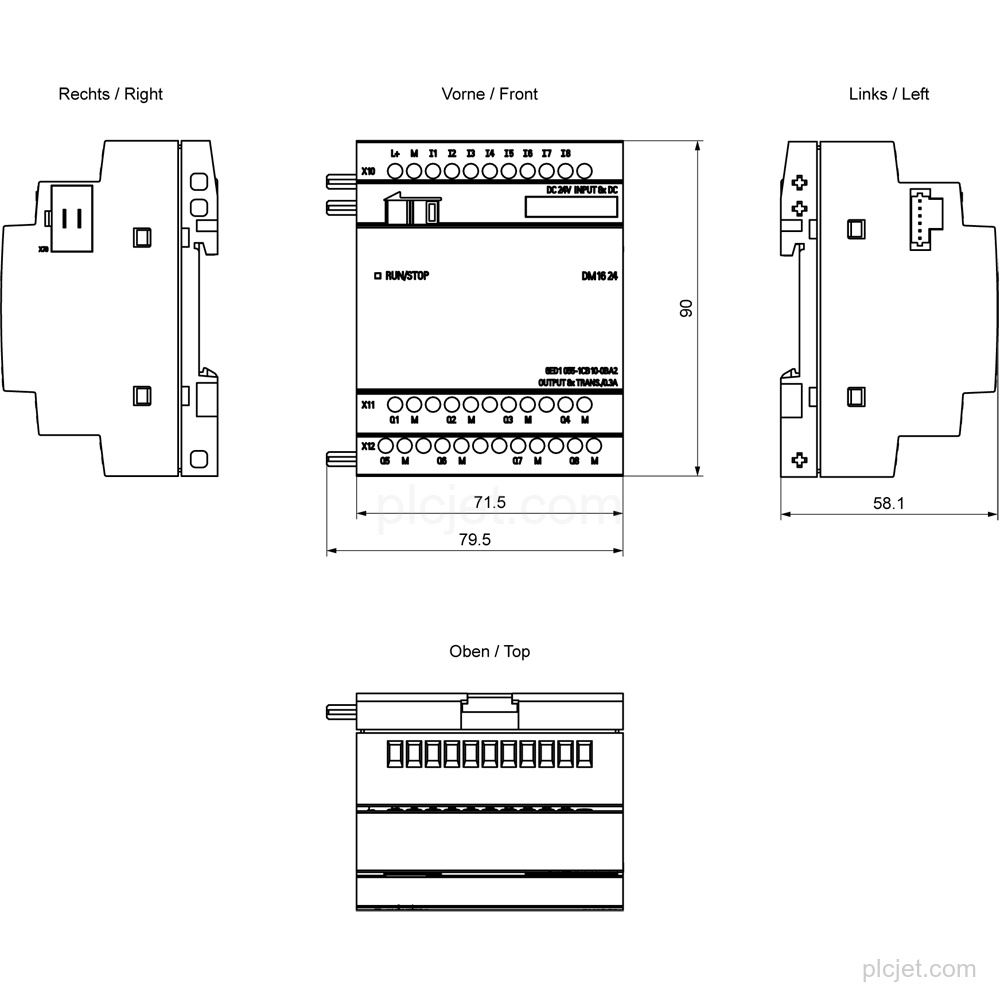

| Mounting | 35 mm DIN rail, 4 spacing units wide |
| Protection | IP20 |
| Short-circuit protection | Yes |
| Memory | 4 MW |
Key Features
8 digital inputs and 8 digital outputs.
Rated supply: 24 V DC, with a permissible range from 20.4 V to 28.8 V.
Transistor outputs with a rated signal-1 output current of 0.3 A.
Mounts on a 35 mm DIN rail and is 4 spacing units wide.
Digital outputs have short-circuit protection; protection degree: IP20.
Maximum switching frequency: 10 Hz with resistive load and 0.5 Hz with inductive load.
Frequently Asked Questions
What is the exact Siemens line item?
It is Siemens 6ED1055-1CB10-0BA2, a LOGO! DM16 24 expansion module for LOGO! 8.
What supply range does this module support?
The rated supply is 24 V DC, with a permissible range from 20.4 V to 28.8 V.
How is the module mounted?
It mounts on a 35 mm DIN rail and is 4 spacing units wide.

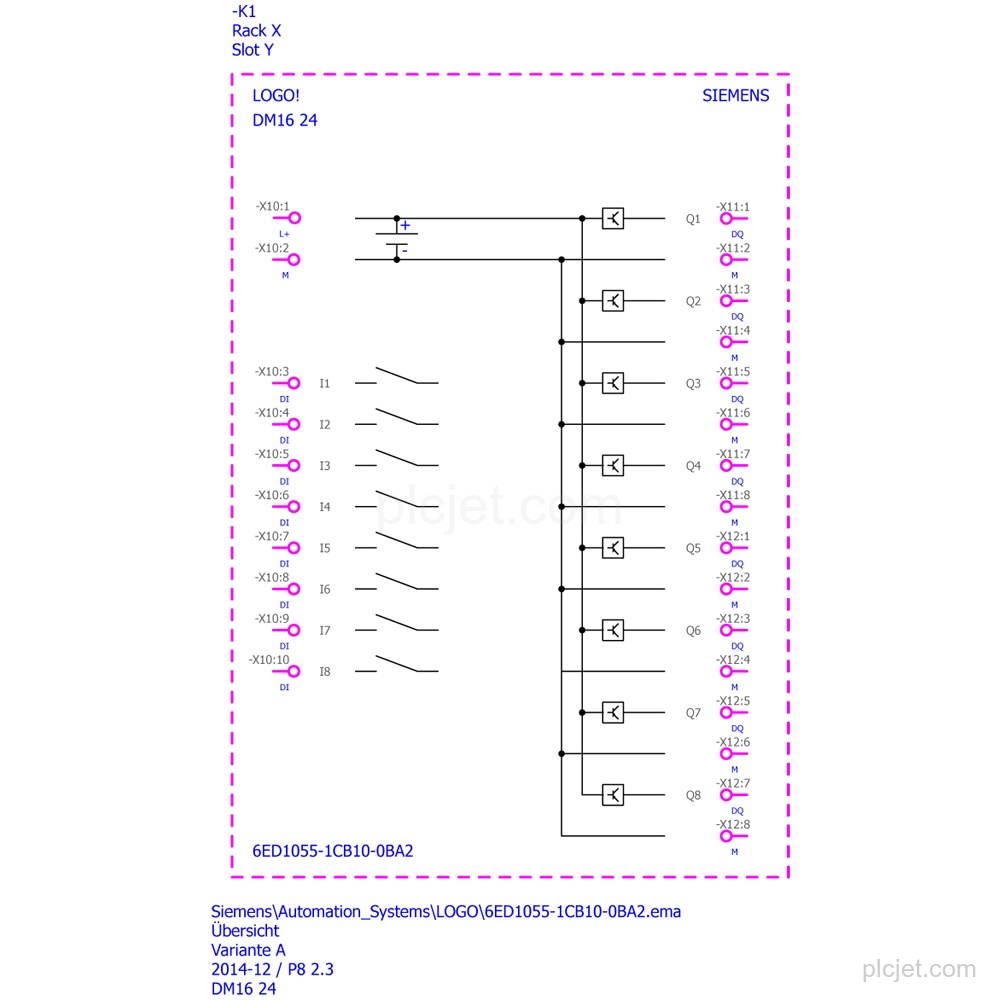

What I/O configuration does it have?
It has 8 digital inputs and 8 digital outputs. The outputs are transistor outputs with a rated signal-1 output current of 0.3 A.
