Product Overview
Technical Summary
| Product type | LOGO! AM2 expansion module |
|---|---|
| Analog inputs | 2 |
| Supported voltage range | 0 to +10 V |
| Supported current range | 0 to 20 mA; 0 mA or 4 mA to 20 mA |
| Rated supply | 12 V DC and 24 V DC; 10.8 V DC to 28.8 V DC |
| Typical current consumption | 30 mA |

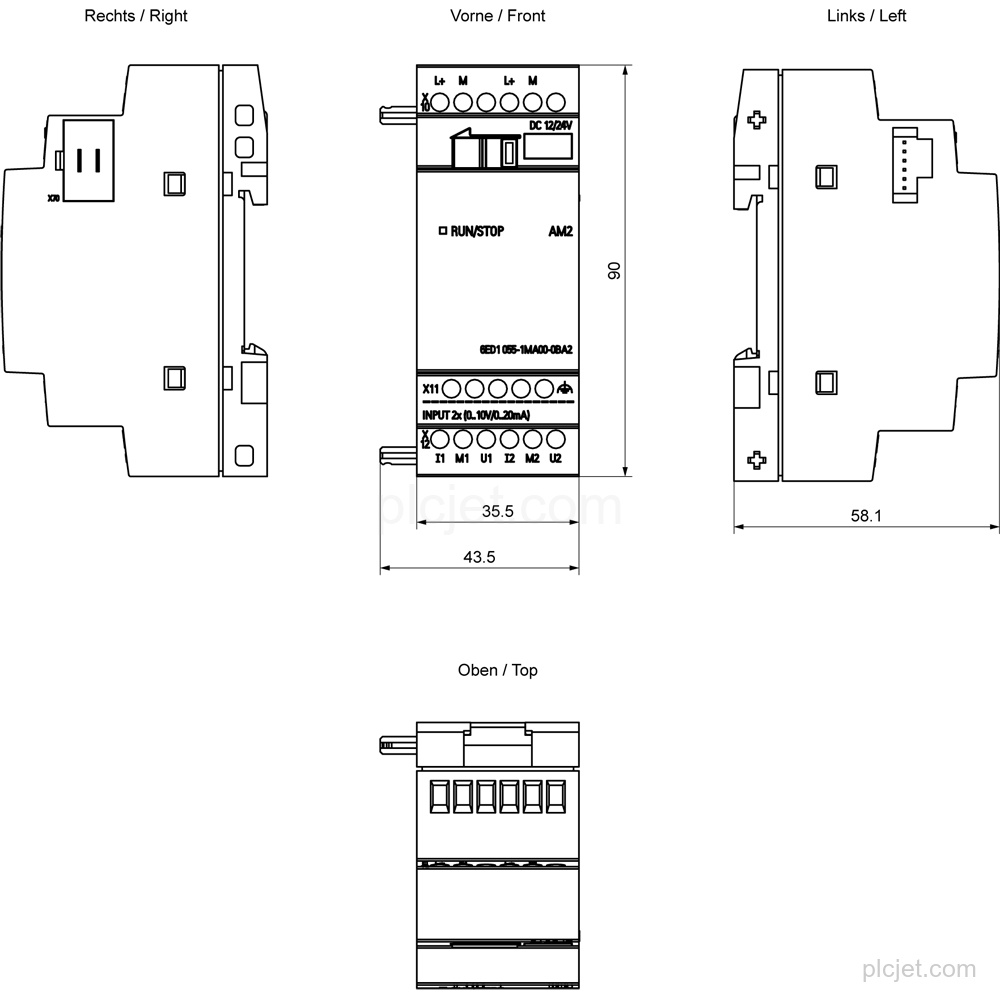

| Mounting | 35 mm DIN rail, 2 spacing units wide |
| Protection | IP20 |
| Resistance thermometer input | No |
Key Features
2 analog inputs support voltage and current signals.
Supports 0 to +10 V and 0 to 20 mA, including 0 mA or 4 mA to 20 mA.
12 V DC and 24 V DC rated values are supported at 10.8 V DC to 28.8 V DC.
Mounts on a 35 mm DIN rail and is 2 spacing units wide.
IP degree of protection: IP20.
Resistance thermometer input, including Pt 100, is not supported.
Frequently Asked Questions
What is Siemens 6ED1055-1MA00-0BA2?
It is a LOGO! AM2 expansion module with 2 analog inputs for 0-10 V or 0/4-20 mA signals.
Which analog input ranges does this module support?
It supports 0 to +10 V and 0 to 20 mA, including 0 mA or 4 mA to 20 mA.
How is the module mounted?
It mounts on a 35 mm DIN rail and is 2 spacing units wide.
What should I provide for a project quotation?
Provide the requested quantity, destination, schedule context, and any additional BOM lines.
