Product Overview
Applications
The 6 digital inputs support HSC technological functions, with single-phase counting up to 3 @ 100 kHz.
The counter functions support controlled positioning and up to 8 position-controlled positioning axes.
A PID controller is supported.
Technical Summary
| Product type | CPU 1211C AC/DC/relay |
|---|---|
| Digital inputs | 6; 24 V DC; HSC supported |
| Digital outputs | 4; relay; 2 A max. with resistive load |
| Analog inputs | 2; 0 to +10 V; 10 bit max. resolution |
| Power supply | AC 85-264 V AC at 47-63 Hz |
| PROFINET interfaces | 1; RJ 45; up to 100 Mbit/s |
| Program/data memory | 75 KB |
| Firmware version | V4.7 |
| Programming package | STEP 7 V20 or higher |
Key Features

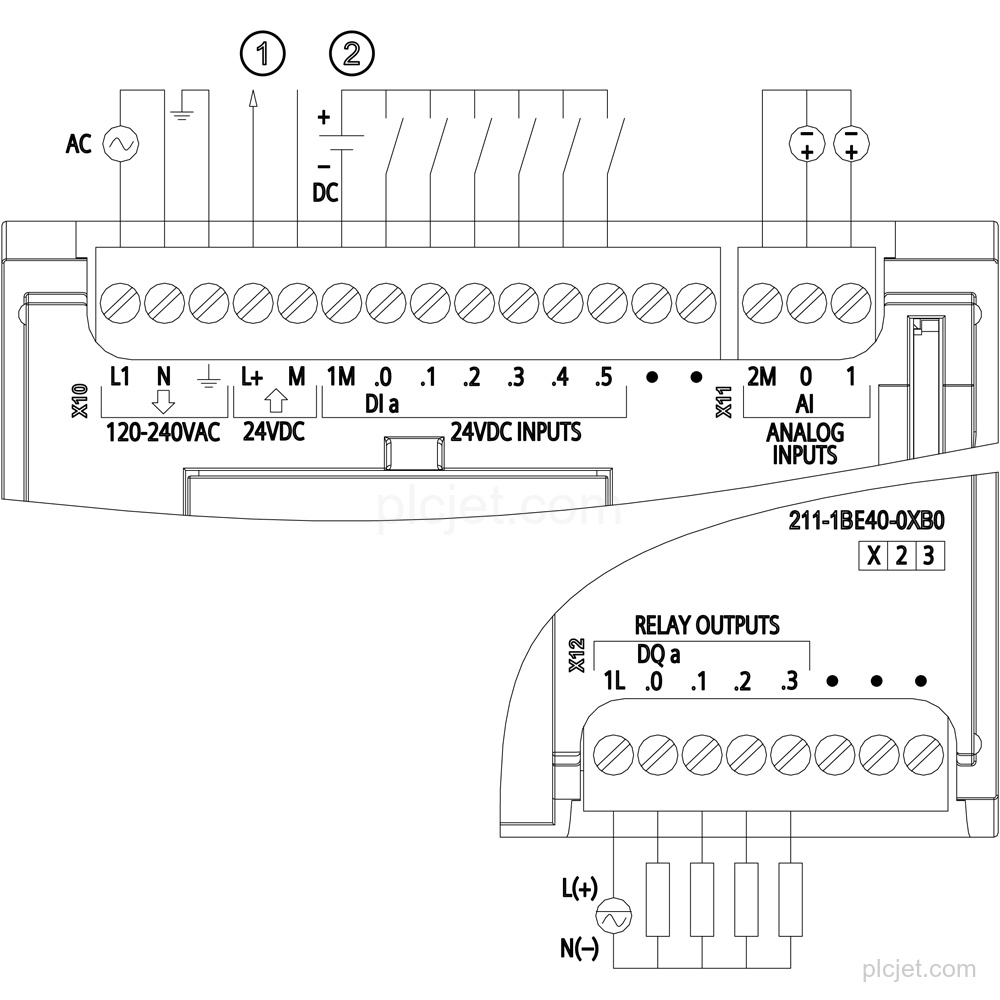

6 digital inputs at 24 V DC, 4 relay digital outputs, and 2 analog inputs with a 0 to +10 V range.
Relay outputs support up to 2 A with a resistive load.
Power supply: AC 85-264 V AC at 47-63 Hz.
1 isolated PROFINET interface with an RJ 45 port and transmission rate up to 100 Mbit/s.
75 kbyte integrated work memory, 1 Mbyte integrated load memory, and firmware version V4.7.
Engineering with STEP 7 V20 or higher.
Frequently Asked Questions
What is the exact product type?
The exact product is Siemens 6ES7211-1BE40-0XB0, CPU 1211C AC/DC/relay.
How many I/O points does this CPU have?
It has 6 digital inputs at 24 V DC, 4 relay digital outputs, and 2 analog inputs with a 0 to +10 V range.
What power supply does it use?
The power supply is AC 85-264 V AC at 47-63 Hz.
Which programming package is supported?
Engineering uses STEP 7 V20 or higher.
Can this line item be included in a quotation with project details?
Yes. Include the requested quantity, destination, schedule context, and any additional BOM lines.
