Product Overview
Applications
Supports controlled positioning with up to 8 position-controlled positioning axes.
Provides a PID controller function.
Technical Summary
| Product | CPU 1212C DC/DC/DC |
|---|---|
| Digital inputs | 8; Integrated |
| Digital outputs | 6 |
| Analog inputs | 2; 0 to +10 V |
| Analog outputs | 0 |
| Supply | DC 20.4-28.8 V DC |
| Program/data memory | 100 KB |
| PROFINET interfaces | 1 |
| Programming package | STEP 7 V20 or higher |
| Firmware version | V4.7 |
| Protection | IP20 |
Key Features

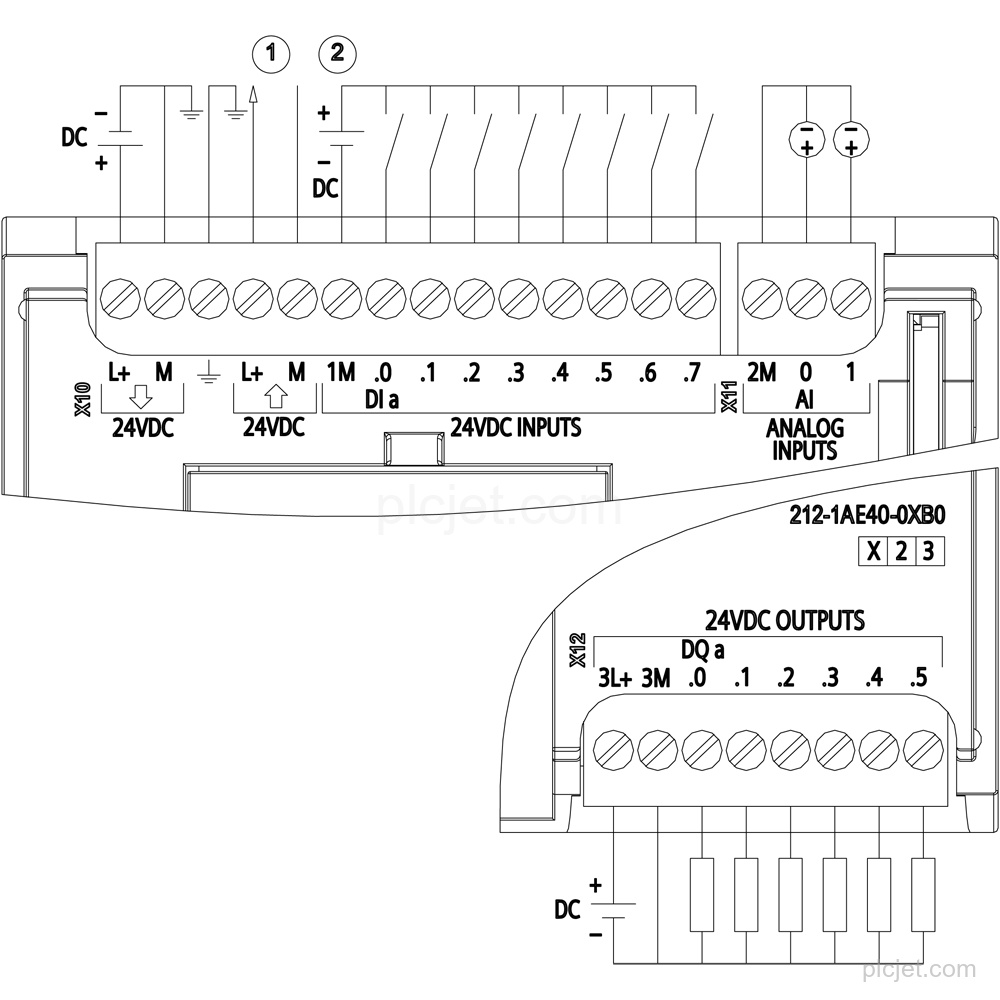

8 digital inputs at 24 V DC, 6 digital outputs at 24 V DC and 2 analog inputs with a 0 to +10 V range.
Power supply: DC 20.4-28.8 V DC. Program/data memory: 100 KB; integrated load memory: 2 Mbyte.
1 PROFINET interface with an RJ 45 Ethernet connection and transmission rate up to 100 Mbit/s.
Programming package: STEP 7 V20 or higher. Firmware version: V4.7.

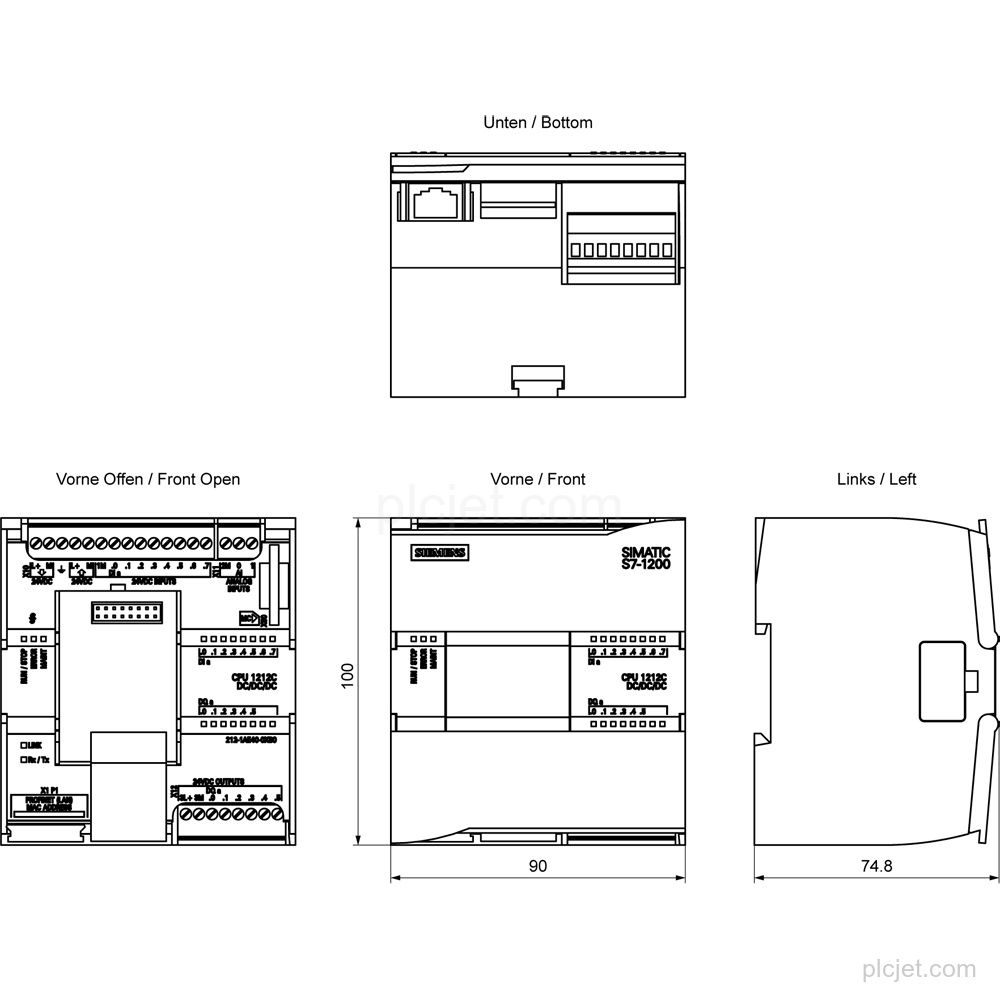

Packaging dimensions: 11.00 x 10.10 x 8.50 cm. Net weight: 0.294 kg.
Frequently Asked Questions
What is the exact configuration of 6ES7212-1AE40-0XB0?
It is a SIMATIC S7-1200 CPU 1212C compact CPU with DC/DC/DC configuration, 8 digital inputs, 6 digital outputs and 2 analog inputs.
What supply voltage does this CPU use?
The supply is DC 20.4-28.8 V DC, with a rated value of 24 V DC.
Which interface is provided?
It has 1 PROFINET interface with an RJ 45 Ethernet connection.
Which programming package is supported?
The programming package is STEP 7 V20 or higher.
