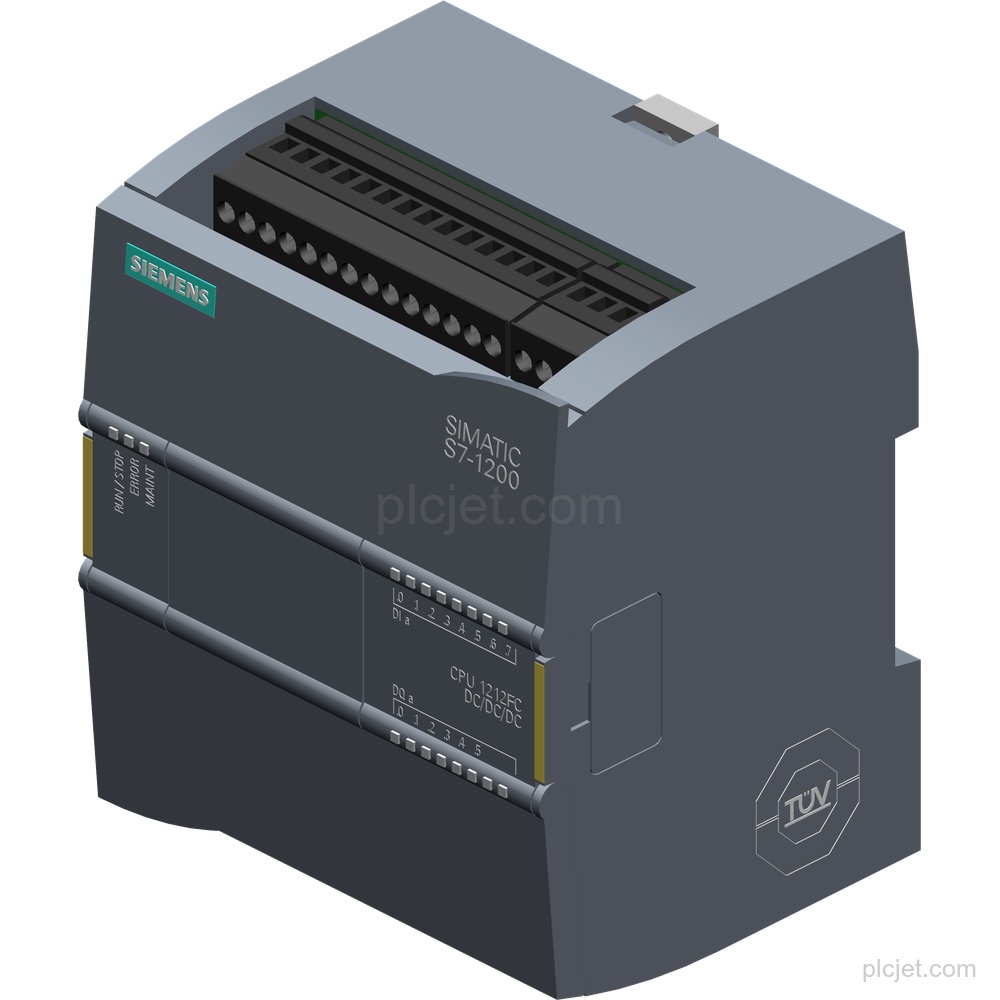

Product Overview
Technical Summary
| Product type | CPU 1212FC DC/DC/DC |
|---|---|
| Digital inputs | 8; 24 V DC |
| Digital outputs | 6; 24 V DC |
| Analog inputs | 2; 0 to +10 V |
| Supply range | DC 20.4-28.8 V DC |
| PROFINET interfaces | 1; 100 Mbit/s maximum |
| Work memory | 150 kbyte |
| Firmware version | V4.7 |
Key Features

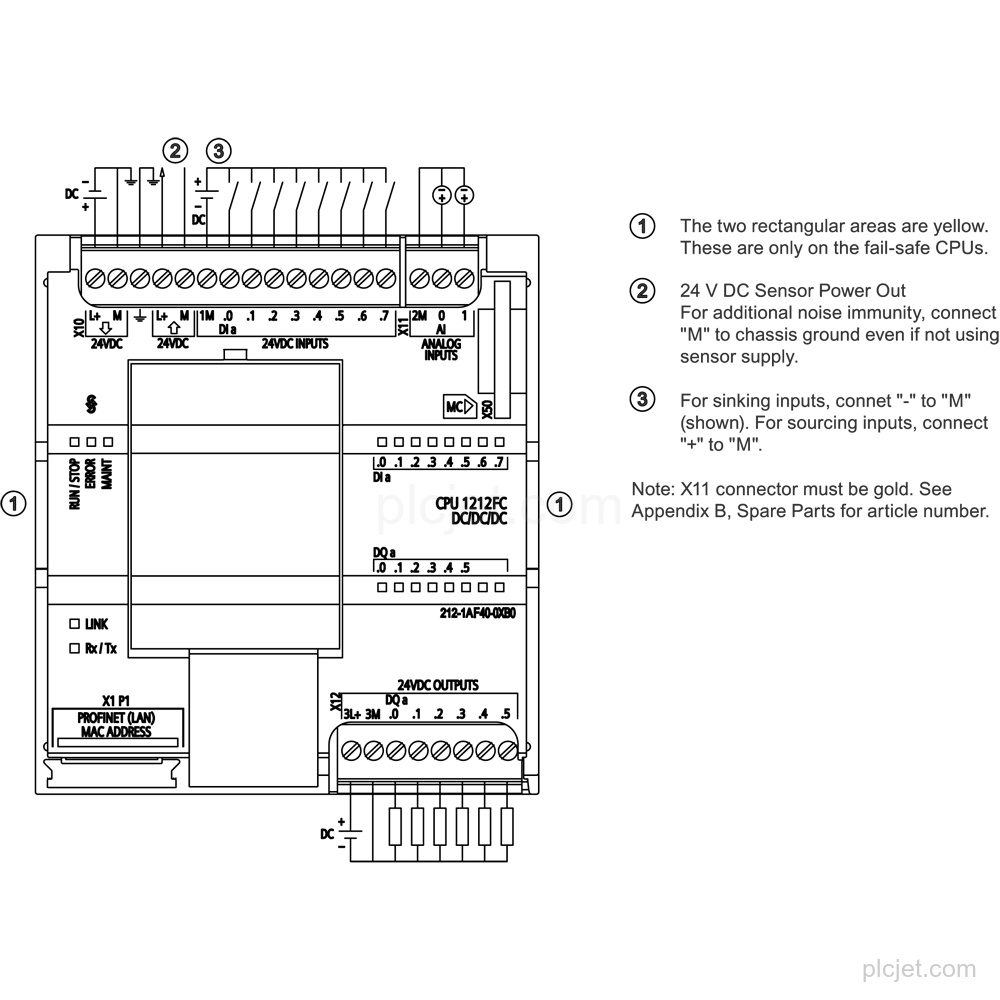

8 digital inputs at 24 V DC, 6 digital outputs at 24 V DC and 2 analog inputs with a 0 to +10 V range.
DC 20.4-28.8 V DC supply range; reverse polarity protection is present.
1 isolated PROFINET interface with 1 RJ 45 port and a maximum transmission rate of 100 Mbit/s.
150 kbyte integrated work memory, 2 Mbyte integrated load memory and typical processing times of 0.08 μs for bit operations, 1.7 μs for word operations and 2.3 μs for floating point arithmetic.
Firmware version V4.7; programming package STEP 7 V20 or higher.
Frequently Asked Questions
What is the exact product variant?
The exact product variant is 6ES7212-1AF40-0XB0, product type CPU 1212FC DC/DC/DC.
What supply voltage does this CPU require?
The supply range is DC 20.4-28.8 V DC, with a rated value of 24 V DC.
Which interfaces are available?
It has 1 isolated PROFINET interface with 1 RJ 45 port and a maximum transmission rate of 100 Mbit/s.
What should be included in a quotation request?
Include the exact line item, requested quantity, destination, schedule context and any additional BOM lines.
