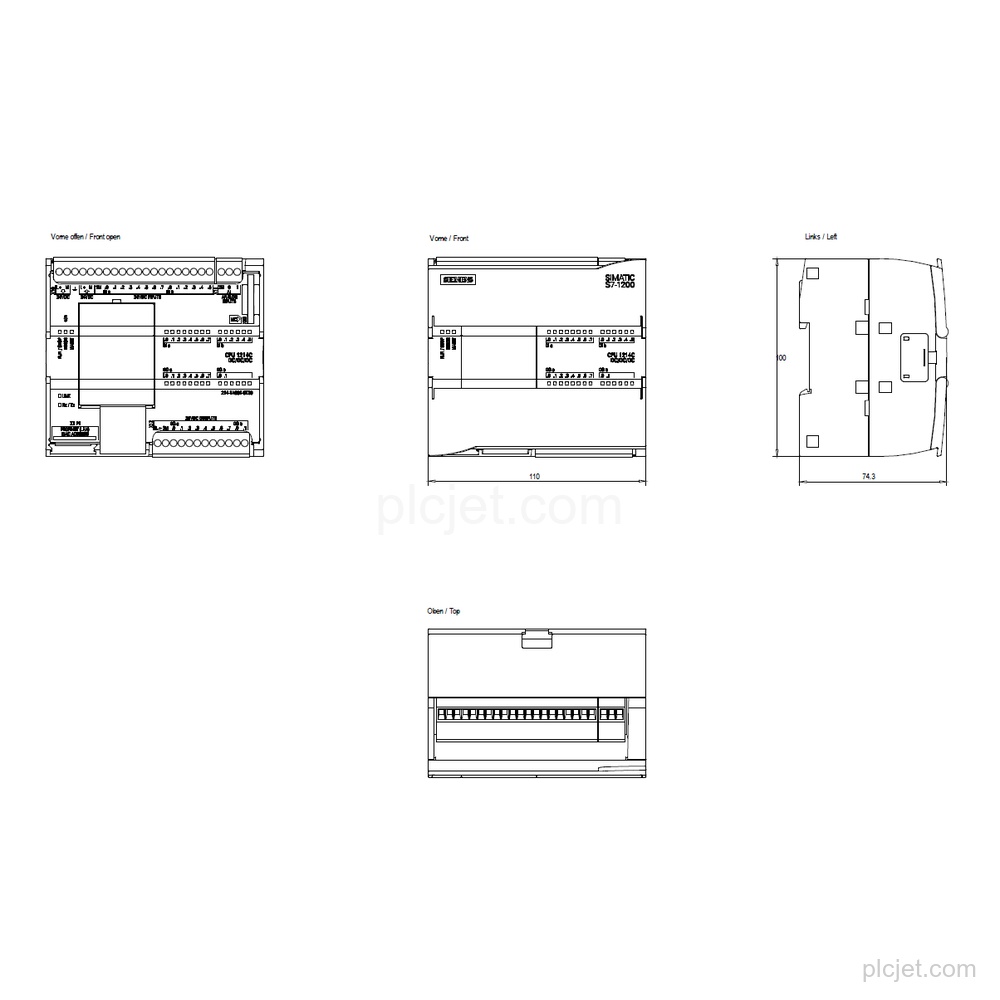

Product Overview
Applications
The CPU supports frequency measurement with a maximum counting frequency of 100 kHz.
The CPU supports controlled positioning.
The CPU supports PID controller functionality.
Technical Summary
| Product type | CPU 1214C DC/DC/DC |
|---|---|
| Digital inputs | 14; Integrated |
| Digital outputs | 10 |
| Analog inputs | 2; 0 to +10 V |
| PROFINET interfaces | 1 |
| Work memory | 75 kbyte |
| Load memory | 4 Mbyte |
| Supply | 24 V DC; permissible range: 20.4 V to 28.8 V |
| Programming package | STEP 7 V11 SP2 or higher |
| Protection | IP20 |
Key Features
14 digital inputs at 24 V DC, 10 digital outputs at 24 V DC, and 2 analog inputs with a 0 to +10 V range.
Compact CPU with DC/DC/DC configuration, 75 kbyte integrated work memory, and 4 Mbyte integrated load memory.
1 isolated PROFINET interface with RJ 45 (Ethernet), automatic transmission-rate detection, autonegotiation, and autocrossing.
Rated supply: 24 V DC; permissible range: 20.4 V to 28.8 V.
6 digital inputs support HSC (High Speed Counting), and 4 digital outputs provide 100 kHz Pulse Train Output.
IP20 degree of protection; product lifecycle: start of final year of support.
Frequently Asked Questions
What is the exact product type of 6ES7214-1AG31-0XB0?
It is a CPU 1214C DC/DC/DC compact CPU in the SIMATIC S7-1200 family.
What I/O does this CPU have?
It has 14 integrated digital inputs, 10 digital outputs, and 2 analog inputs with a 0 to +10 V input range.
What supply voltage does it require?
The rated supply is 24 V DC, with a permissible range from 20.4 V to 28.8 V.
Which interface and programming package are supported?
It has 1 PROFINET interface and supports STEP 7 V11 SP2 or higher.
