Product Overview
Applications
6 digital inputs support HSC, with single-phase frequencies of 3 at 100 kHz and 3 at 30 kHz.
The counter functions support controlled positioning, with up to 8 position-controlled positioning axes.
Technical Summary
| Product type | CPU 1214C DC/DC/DC |
|---|---|
| Digital inputs | 14; Integrated |
| Digital outputs | 10 |
| Analog inputs | 2; 0 to +10 V |
| Power supply | DC 20.4-28.8 V DC |
| Work memory | 150 kbyte |
| Load memory | 4 Mbyte |
| PROFINET interfaces | 1; isolated; 1 RJ 45 port |
| Transmission rate, max. | 100 Mbit/s |
| Firmware version | V4.7 |
| Programming package | STEP 7 V20 or higher |
| Product lifecycle | Active Product |

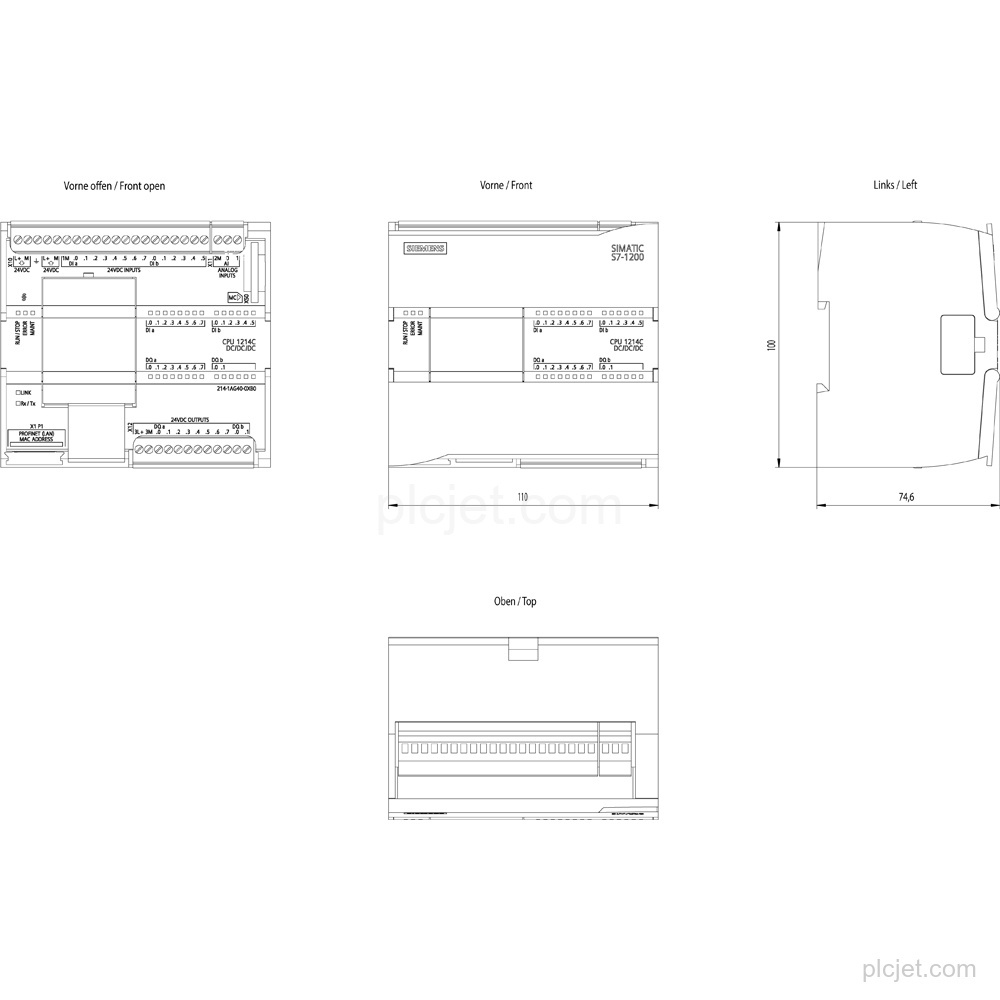

Key Features

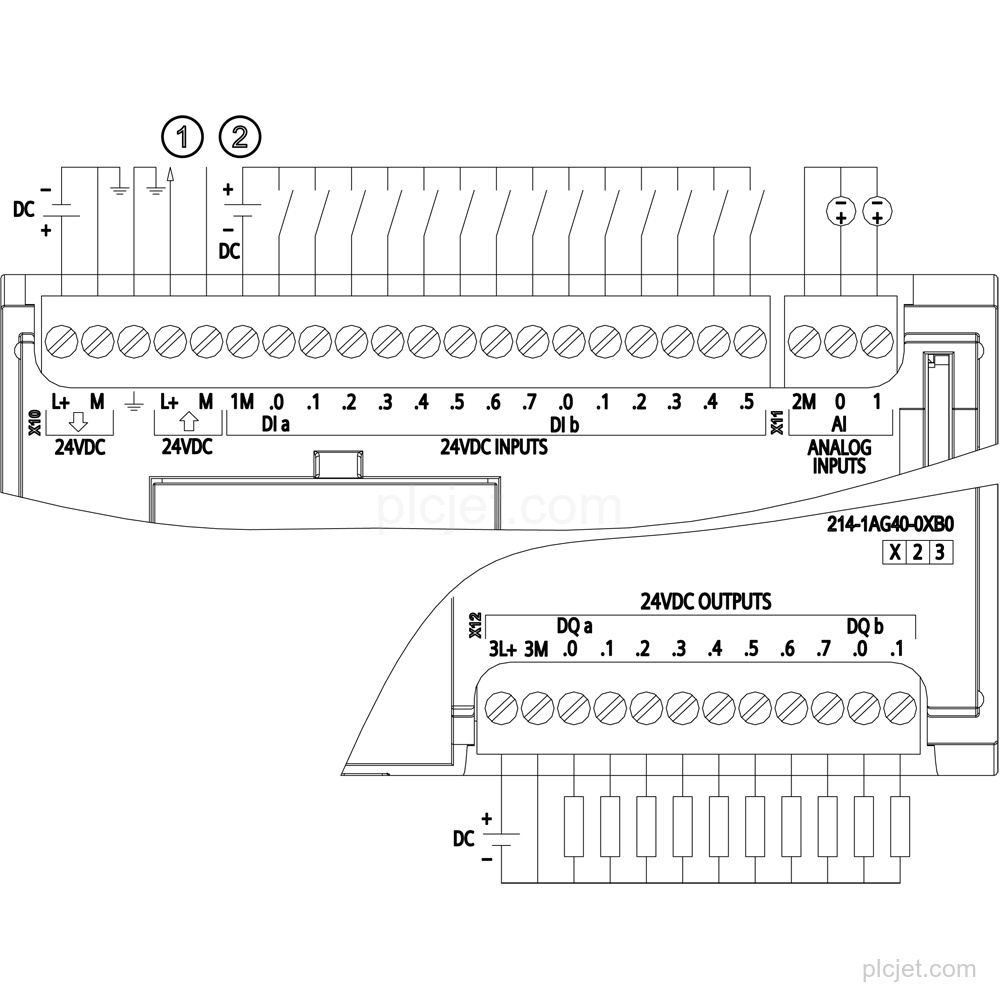

14 digital inputs at 24 V DC, 10 digital outputs at 24 V DC, and 2 analog inputs with a 0 to +10 V range.
DC 20.4-28.8 V DC; reverse polarity protection is present.
Integrated work memory: 150 kbyte; integrated load memory: 4 Mbyte.
1 isolated PROFINET interface with 1 RJ 45 port and transmission rate up to 100 Mbit/s.
6 digital inputs support HSC; 4 digital outputs support 100 kHz Pulse Train Output.
Firmware version V4.7, programmable with STEP 7 V20 or higher; lifecycle status: Active Product.
Frequently Asked Questions
What is the exact Siemens line item?
It is Siemens 6ES7214-1AG40-0XB0, product type CPU 1214C DC/DC/DC.
What onboard I/O does this CPU provide?
It has 14 digital inputs, 10 digital outputs, and 2 analog inputs with a 0 to +10 V range.
What supply voltage does it use?
The power supply is DC 20.4-28.8 V DC.
Which interface and engineering software are supported?
It has 1 PROFINET interface and is programmable with STEP 7 V20 or higher.
What should be included for a project quotation request?
Please provide the requested quantity, destination, schedule context, and any additional BOM lines.
