Product Overview
Applications
Supports controlled positioning.
Supports PID controller functions.
Supports frequency measurement.
Supports a web server and user-defined websites.
Technical Summary
| Product type | CPU 1215C AC/DC/relay |
|---|---|
| Digital inputs | 14; 24 V DC |
| Digital outputs | 10; relays; 2 A maximum with resistive load |
| Analog inputs | 2; 0 to +10 V |
| Analog outputs | 2; 0 to 20 mA |
| PROFINET interfaces | 2; RJ 45 (Ethernet) |
| Power supply | AC 85-264 V AC at 47-63 Hz |
| Work memory | 100 kbyte |
| Load memory | 4 Mbyte |
| Programming package | STEP 7 V11 SP2 or higher |
| Protection | IP20 |
Key Features

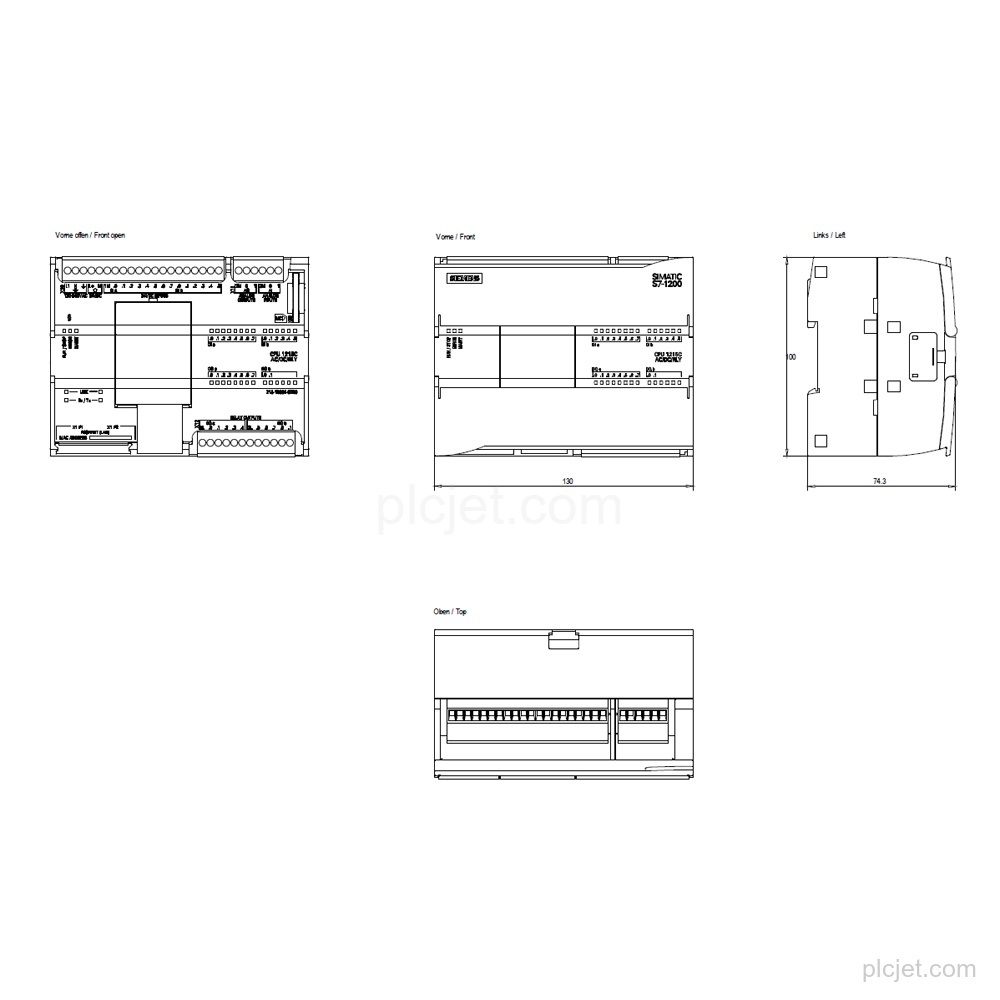

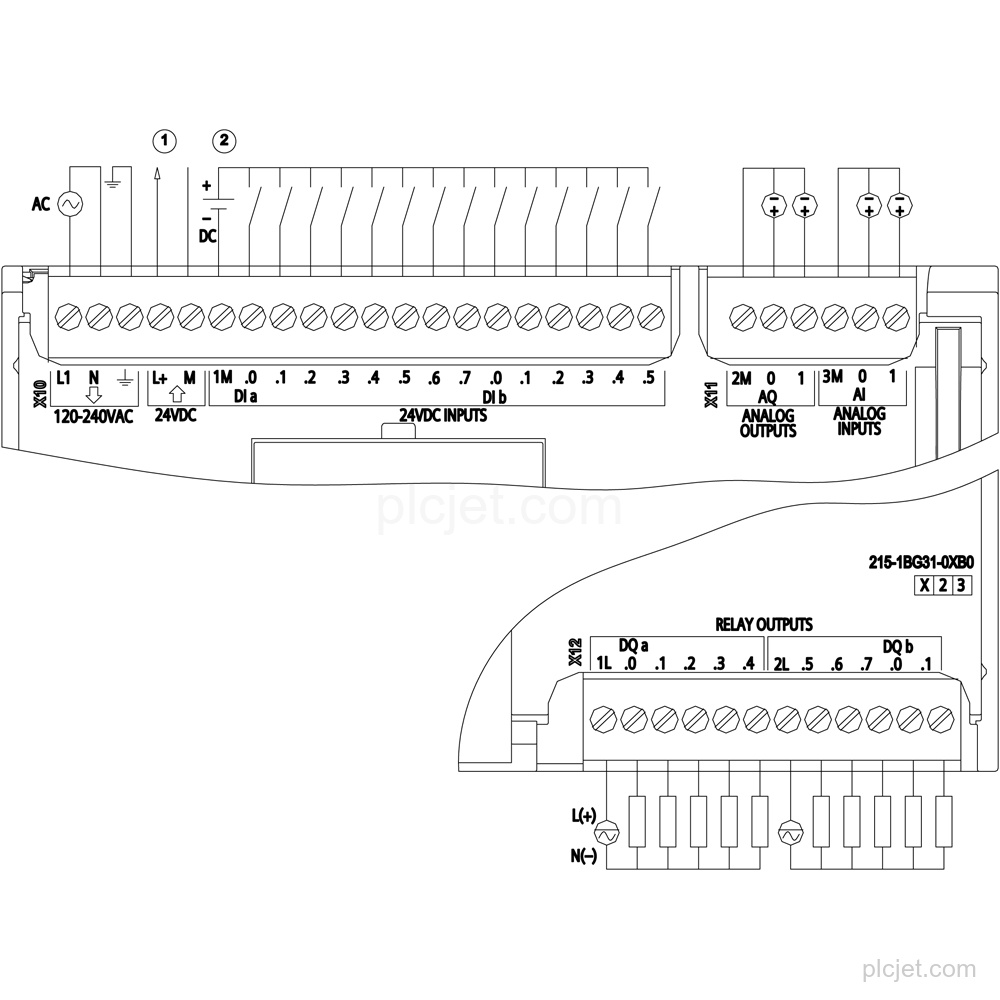

14 DI at 24 V DC, 10 relay DO with 2 A maximum resistive-load switching capacity, 2 AI at 0 to +10 V and 2 AO at 0 to 20 mA.
2 isolated PROFINET interfaces with RJ 45 (Ethernet), automatic transmission-rate detection, autonegotiation and autocrossing.
AC 85-264 V AC at 47-63 Hz; rated values include 120 V AC and 230 V AC.
100 kbyte integrated work memory and 4 Mbyte integrated load memory.
STEP 7 V11 SP2 or higher.
IP20 degree of protection; product lifecycle is at the start of the final year of support.
Frequently Asked Questions
What is the exact product type of 6ES7215-1BG31-0XB0?
It is a CPU 1215C AC/DC/relay compact CPU.
What I/O does this configuration have?
It has 14 DI at 24 V DC, 10 relay DO, 2 AI at 0 to +10 V and 2 AO at 0 to 20 mA.
Which interfaces are included?
It has 2 isolated PROFINET interfaces with RJ 45 (Ethernet).
What power supply does it use?
The power supply is AC 85-264 V AC at 47-63 Hz.
What project quotation details should be submitted?
Include the requested quantity, destination, schedule context and any additional BOM lines.
