Product Overview
Applications
6 digital inputs are usable for high-speed counting (HSC).
The counter functions support controlled positioning and up to 8 position-controlled positioning axes.
A PID controller is supported.
Technical Summary
| Product type | CPU 1215C DC/DC/relay |
|---|---|
| Digital inputs | 14; Integrated |
| Digital outputs | 10; Relays |
| Analog inputs | 2; 0 to +10 V |
| Analog outputs | 2; 0 to 20 mA |
| PROFINET ports | 2; RJ 45, integrated switch |
| Supply | DC 20.4-28.8 V DC; rated value 24 V DC |
| Work memory | 200 kbyte; integrated |
| Load memory | 4 Mbyte; integrated |
| Programming package | STEP 7 V20 or higher |
| Firmware version | V4.7 |
| Protection | IP20 |
Key Features

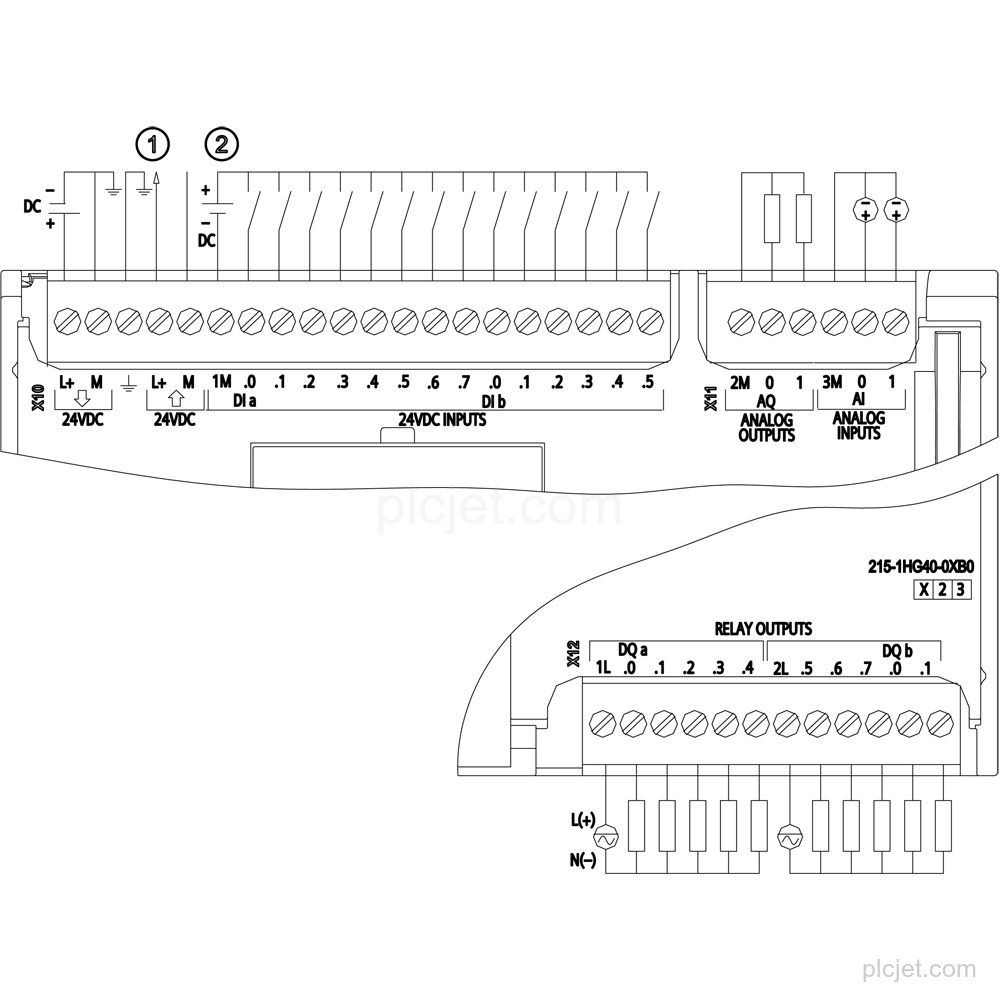

14 digital inputs at 24 V DC, 10 relay outputs with 2 A maximum switching capacity for resistive loads, 2 analog inputs at 0 to +10 V, and 2 analog outputs at 0 to 20 mA.
2 RJ 45 ports with an integrated switch; PROFINET IO Controller and PROFINET IO Device are supported.
DC 20.4-28.8 V DC permissible supply range; rated value 24 V DC.
200 kbyte integrated work memory and 4 Mbyte integrated load memory.
Programming package: STEP 7 V20 or higher. Firmware version: V4.7.

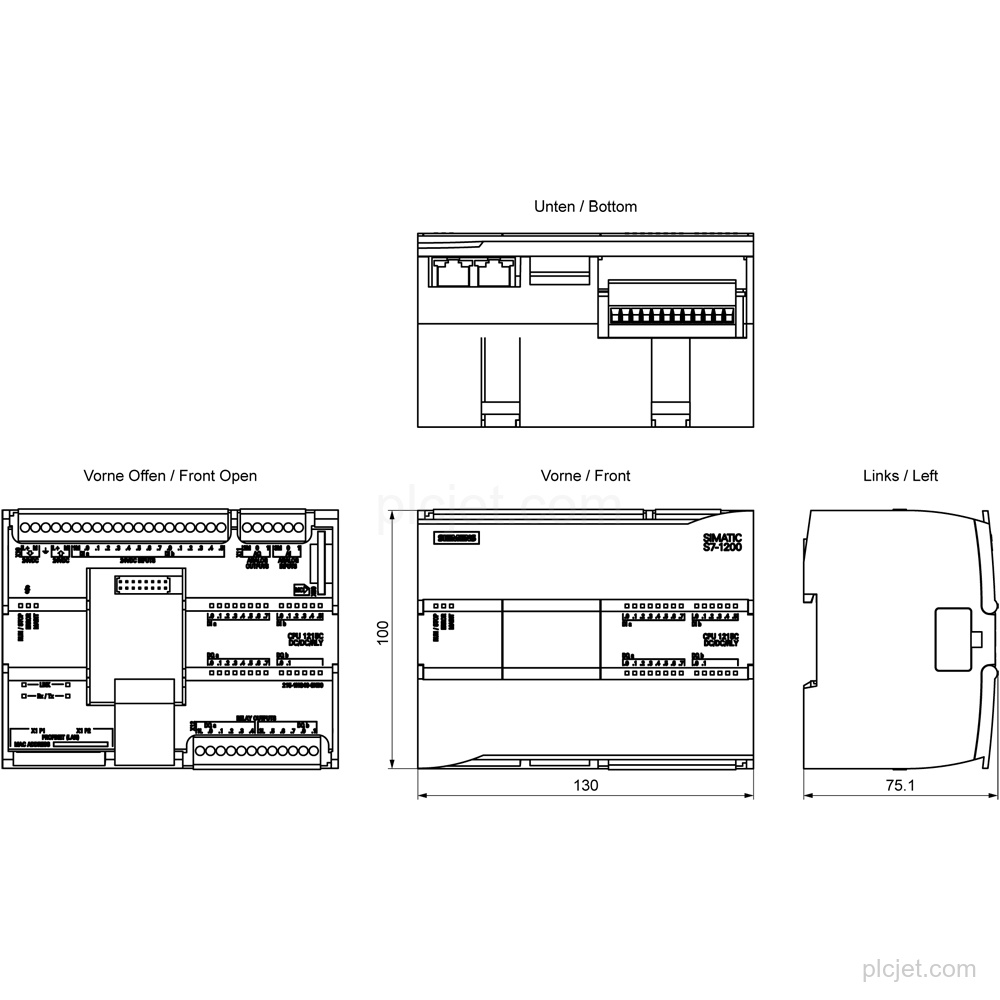

IP20 degree of protection; packaging dimensions are 13.80 x 11.10 x 8.30 cm, with net weight 0.434 kg.
Frequently Asked Questions
What is the exact Siemens line item?
It is 6ES7215-1HG40-0XB0, a CPU 1215C DC/DC/relay.
What I/O does this configuration provide?
It provides 14 digital inputs, 10 relay outputs, 2 analog inputs at 0 to +10 V, and 2 analog outputs at 0 to 20 mA.
What supply range does it use?
The permissible supply range is DC 20.4-28.8 V DC, with a rated value of 24 V DC.
Which interfaces are available?
It has 2 RJ 45 ports with an integrated switch and supports PROFINET IO Controller and PROFINET IO Device.
Can this exact line item be included in a quotation with quantity, destination, schedule, and additional BOM lines?
Yes. Submit the requested quantity, destination, schedule context, and any additional BOM lines for quotation review.
