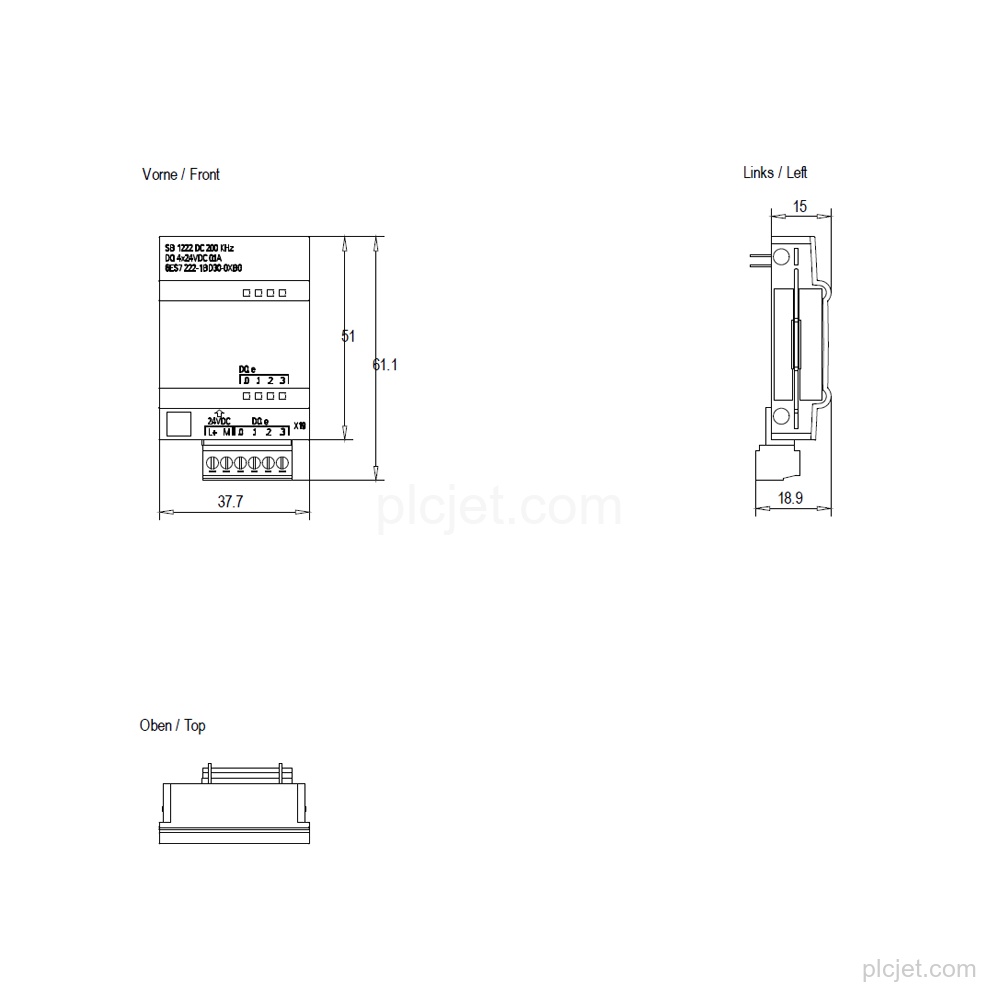

Product Overview
Technical Summary
| Product type | SB 1222, DQ 4×24 V DC 200 kHz |
|---|---|
| Digital outputs | 4; MOSFET, solid-state (current-sinking/current-sourcing) |
| Output voltage, rated value (DC) | 24 V |
| Output current, signal "1" rated value | 0.1 A |
| Switching capacity with resistive load, max. | 0.1 A |
| Short-circuit protection | No |
| Output status LED | Yes |
| Input current from backplane bus, typ. | 35 mA at 5 V DC |
| Power loss, typ. | 0.5 W |
Key Features

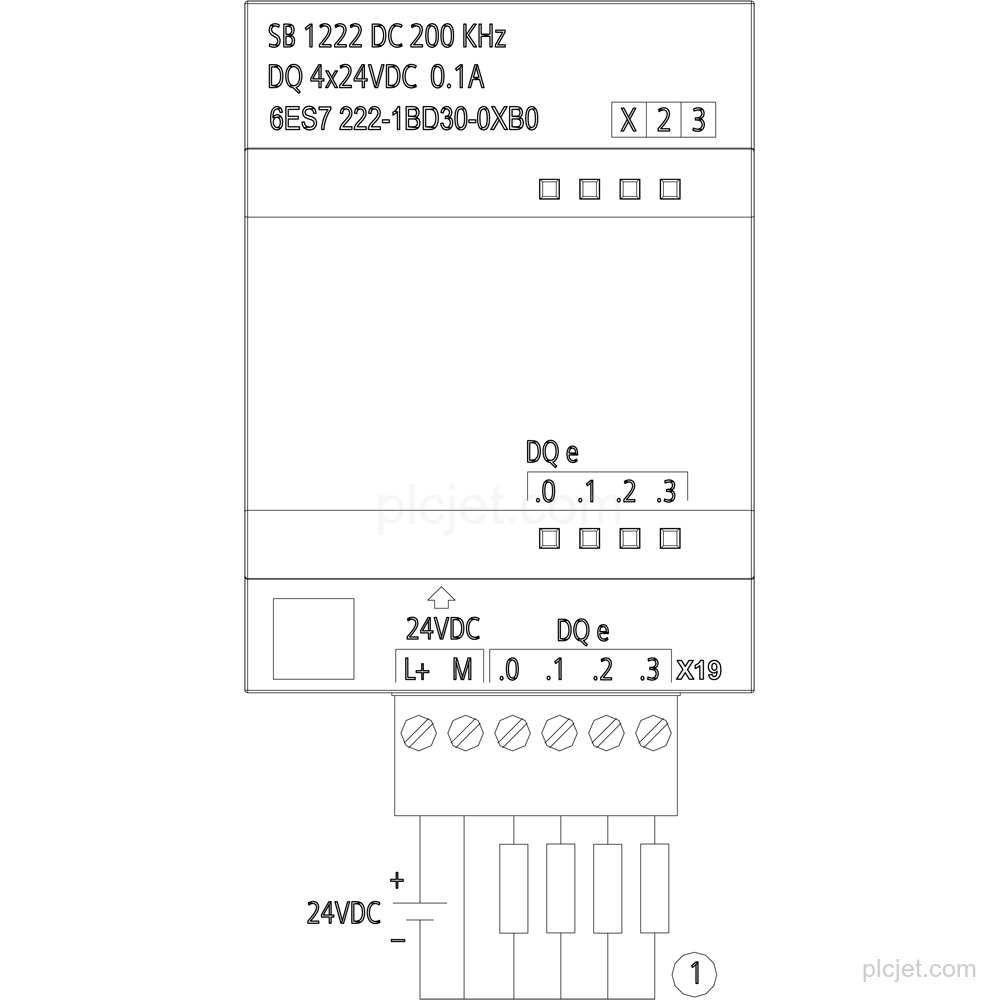

Digital outputs
4 MOSFET solid-state outputs with current-sinking/current-sourcing operation.
Output supply
Rated output voltage: 24 V DC.
Output switching
Maximum switching capacity with resistive load: 0.1 A.
High-speed operation
Product designation includes 200 kHz.
Output diagnostics
LED status indication for the outputs: Yes.
Frequently Asked Questions
What is the exact configuration of Siemens 6ES7222-1BD30-0XB0?
It is an SB 1222 digital output with 4 DQ, 24 V DC and 200 kHz.
What output current is available for signal "1"?
The rated and maximum permissible output current for signal "1" is 0.1 A.
Does this digital output have short-circuit protection?
No, short-circuit protection is not provided.
