Product Overview
Applications
Provides 2 digital inputs and 2 digital outputs for 24 V DC signal handling.

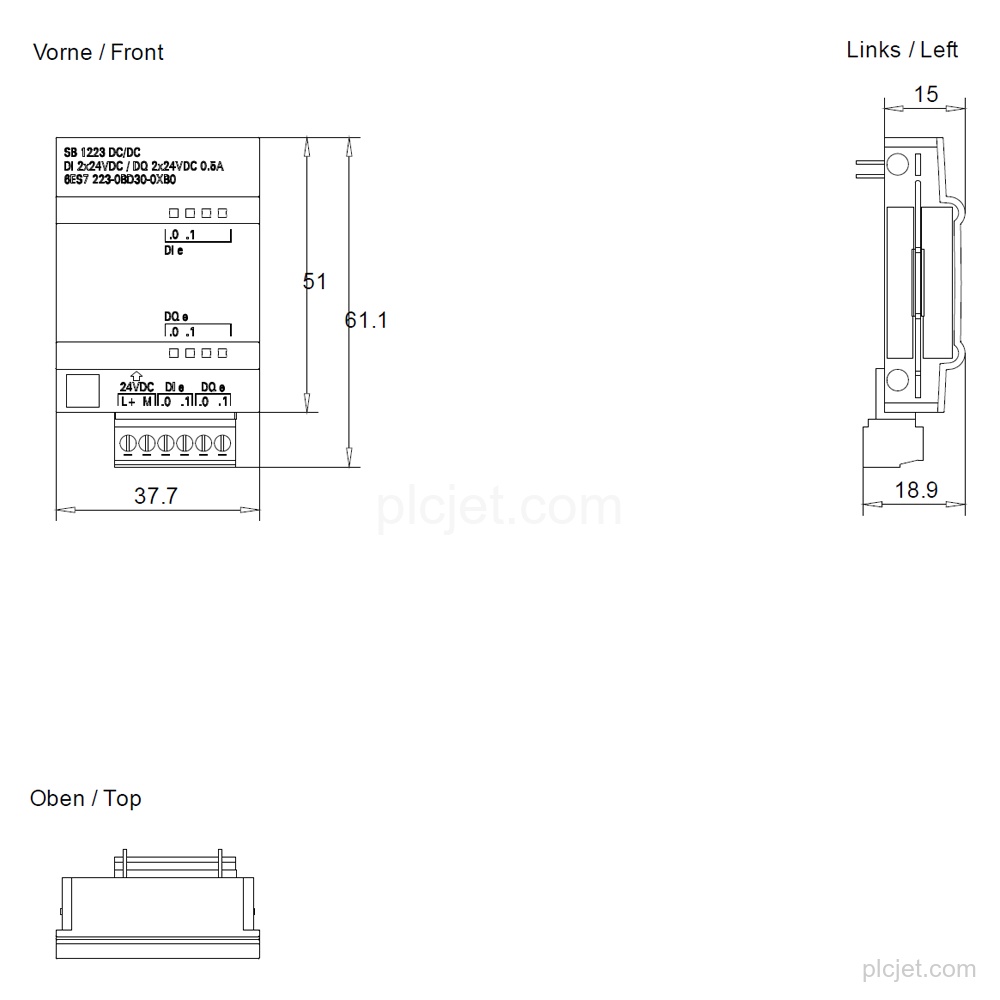

Technical Summary
| Product type | SB 1223, DI 2×24 V DC/DQ 2×24 V DC |
|---|---|
| Digital inputs | 2; Current-sinking |
| Digital outputs | 2; MOSFET, solid-state (current-sinking/current-sourcing) |
| Supply voltage | 20.4 V to 28.8 V DC |
| Input voltage | Rated value: 24 V DC |
| Output voltage | Rated value: 24 V DC |
| Output current | 0.5 A rated value for signal "1" |
| Input delay | 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four |
Key Features

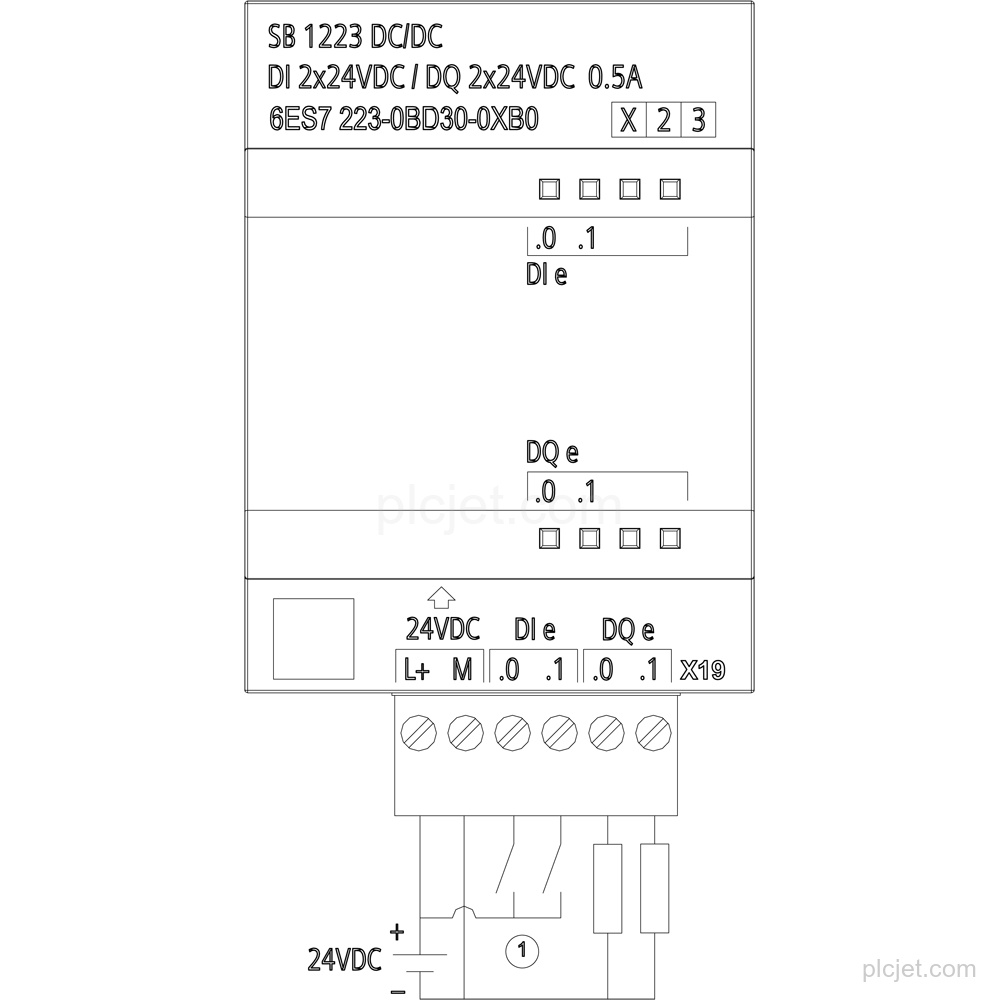

2 digital inputs and 2 digital outputs; the inputs are current-sinking, while the outputs use MOSFET solid-state switching with current-sinking/current-sourcing.
Input and output rated voltage: 24 V DC. Input signal "0": 0 to 5 V; input signal "1": +15 to +30 V.
Permissible supply voltage: 20.4 V to 28.8 V DC.
Standard input delay is selectable in groups of four: 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms or 12.8 ms.
Maximum switching capacity is 0.5 A with a resistive load and 5 W with a lamp load.
Lifecycle status: Active Product.
Frequently Asked Questions
What is the exact Siemens line item?
The exact line item is Siemens 6ES7223-0BD30-0XB0, product type SB 1223, DI 2×24 V DC/DQ 2×24 V DC.
How many digital inputs and outputs does it have?
It has 2 digital inputs and 2 digital outputs.
What supply voltage range is permitted?
The permissible supply voltage range is 20.4 V to 28.8 V DC.
What is the maximum output current?
The output current for signal "1" is 0.5 A rated value and 0.5 A maximum permissible range.
What project details should accompany a quotation request?
Provide the requested quantity, destination, schedule context and any additional BOM lines.
