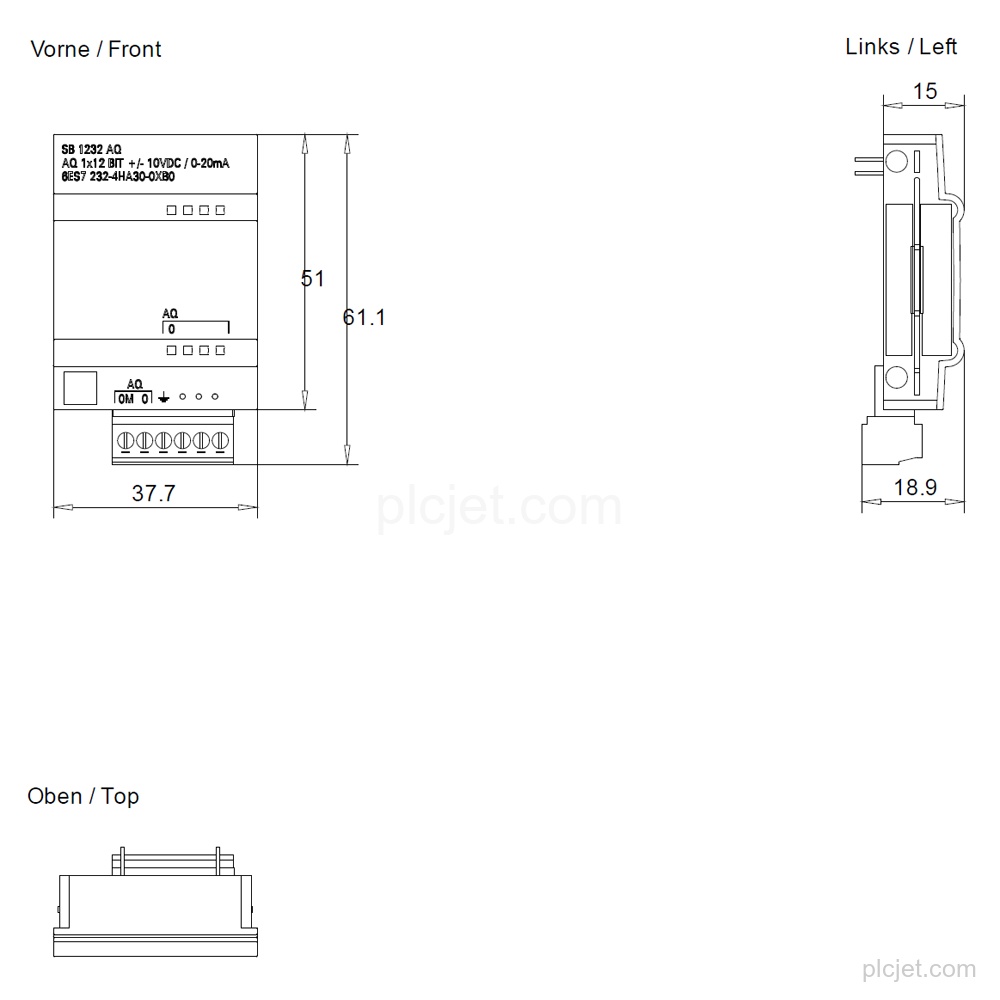

Product Overview
Technical Summary
| Product type | SB 1232, AQ 1×12 bit |
|---|---|
| Analog outputs | 1 |
| Voltage output range | -10 V to +10 V |
| Current output range | 0 to 20 mA |
| Resolution with overrange | 12 bit |
| Voltage-output load impedance, min. | 1 000 Ω |
| Current-output load impedance, max. | 600 Ω |
| Backplane bus current, typ. | 15 mA at 5 V DC |
| Power loss, typ. | 1.5 W |

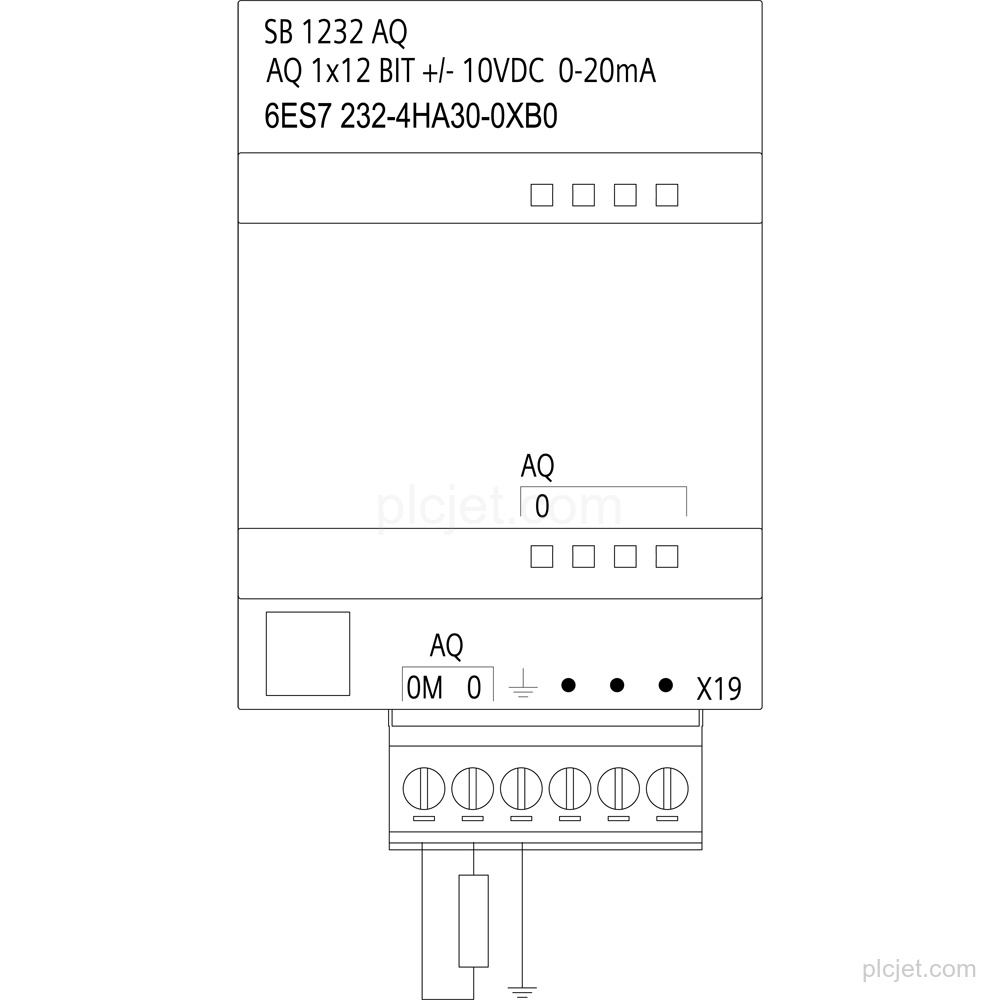

Key Features
1 analog output with -10 V to +10 V or 0 to 20 mA output ranges.
SB 1232, AQ 1×12 bit.
Maximum resolution with overrange, including sign: 12 bit.
Minimum 1 000 Ω with voltage outputs; maximum 600 Ω with current outputs, in the rated output range.
Maximum 100 m with shielded, twisted-pair cable.
Frequently Asked Questions
What is the exact product type of 6ES7232-4HA30-0XB0?
It is SB 1232, AQ 1×12 bit, a Siemens SIMATIC S7-1200 analog output module.
Which output ranges does this module have?
It has a voltage output range of -10 V to +10 V and a current output range of 0 to 20 mA.
What load impedance does the analog output support?
The load impedance is at least 1 000 Ω with voltage outputs and at most 600 Ω with current outputs, in the rated output range.
What cable length is supported?
The maximum cable length is 100 m with shielded, twisted-pair cable.
Can this exact line item be included in a quotation request?
Yes. Include the requested quantity, destination, schedule context, and any additional BOM lines.
