Product Overview
Applications
Used for long-term buffering of the real-time clock in an S7-12XX system.
Technical Summary
| Function | Long-term buffering of the real-time clock |
|---|---|
| Installation | Plug-in in the signal board receptacle of the S7-12XX |
| Firmware requirement | FW3.0 or higher |
| Battery | CR1025 not included in scope of delivery |
| Protection | IP20 |
| Diagnostics indication | PLC MAINT LED signals that the battery needs to be replaced |
| Product lifecycle | Active Product |
Key Features
Provides long-term buffering for the real-time clock.
Plugs into the signal board receptacle of the S7-12XX.
For S7-12XX systems with FW3.0 or higher.
CR1025 battery is not included in the scope of delivery.
IP20 protection; the PLC MAINT LED signals that the battery needs to be replaced.

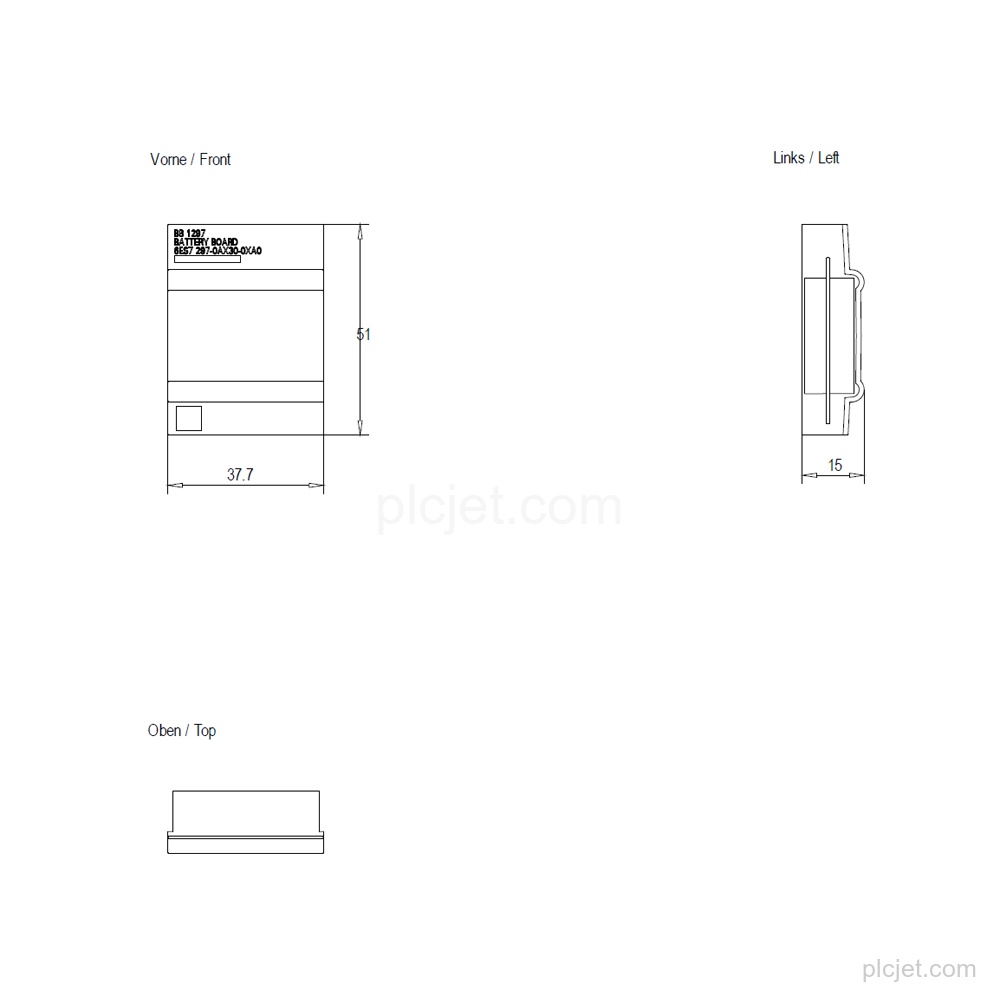

Active Product; packaging dimensions are 8.20 x 5.00 x 2.90 cm and net weight is 0.023 kg.
Frequently Asked Questions
What is Siemens 6ES7297-0AX30-0XA0?

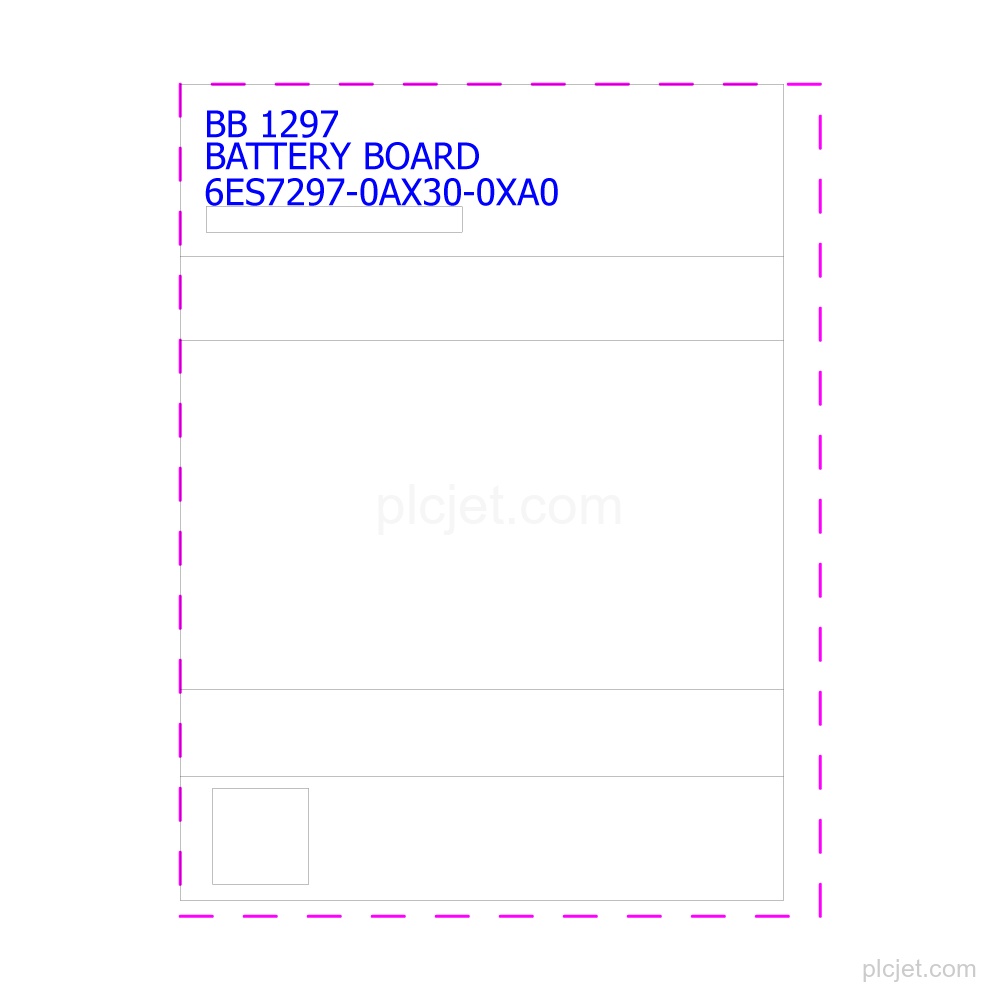

It is a SIMATIC S7-1200 Battery Board BB 1297 for long-term buffering of the real-time clock.
How is the BB 1297 installed?
It plugs into the signal board receptacle of the S7-12XX.
What firmware is required?
The source specifies FW3.0 or higher for the S7-12XX.
Is the CR1025 battery included?
It is not included in the scope of delivery.
