Product Overview
Technical Summary
| Product lifecycle | Active Product |
|---|---|
| Controller configuration | CPU 1515SP PC2 TF + HMI 128PT |
| RAM | 8 GB |
| Storage | 128 GB CFast |
| Operating system | Windows 10 IoT Enterprise LTSC 2019 64-bit |
| Failsafe software controller | S7-1500 Failsafe Software Controller CPU 1505SP TF V2x |
| Runtime software | WinCC Runtime Advanced V17 |
| License | 128 PowerTags |
| PROFINET connection | 1x connection for ET 200SP BusAdapter PROFINET |
| Ethernet | 1x 10/100/1000 Mbps Ethernet |
| USB | 2x USB 3.0 and 2x USB 2.0 |
| Display interface | 1x DisplayPort |
Key Features

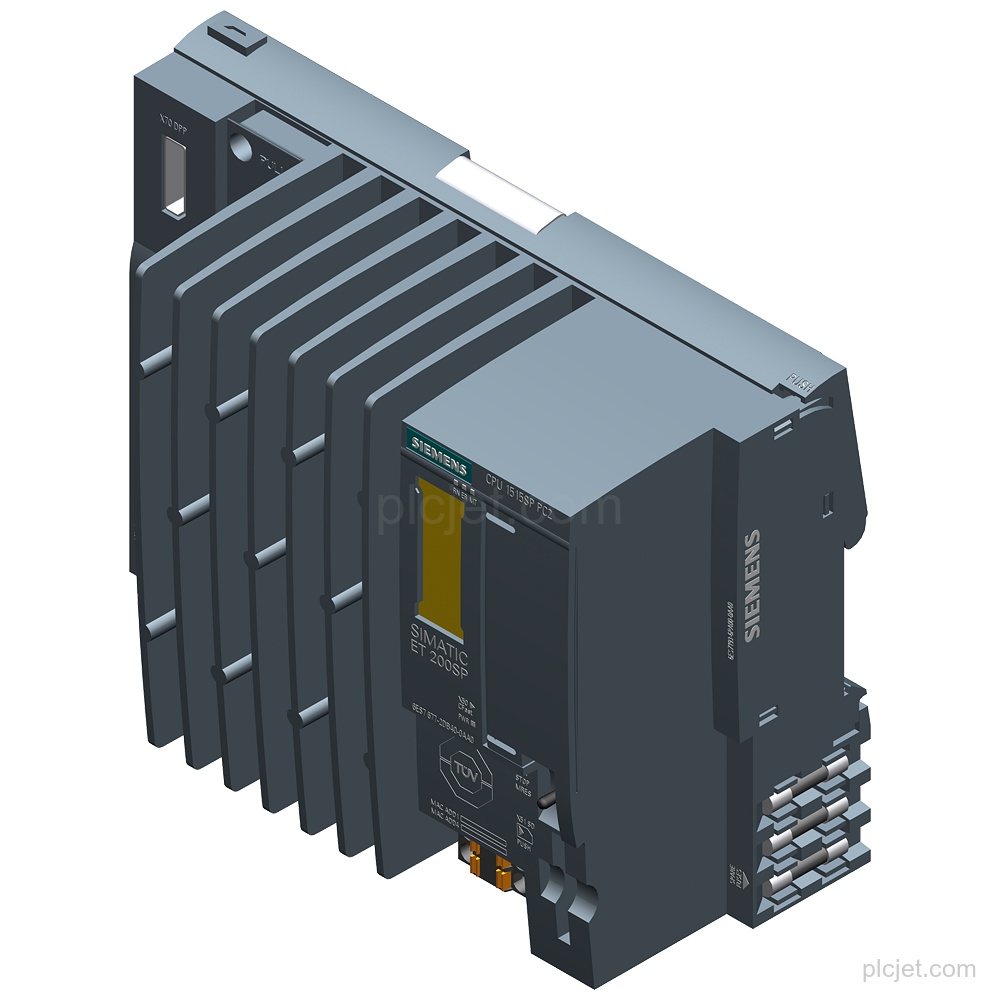

SIMATIC ET 200SP Open Controller with CPU 1515SP PC2 TF and HMI 128PT.
8 GB RAM and 128 GB CFast storage.
Windows 10 IoT Enterprise LTSC 2019 64-bit, S7-1500 Failsafe Software Controller CPU 1505SP TF V2x, and WinCC Runtime Advanced V17 are preinstalled.
Includes a 128 PowerTags license.
1x CFast slot, 1x SD/MMC slot, 1x connection for an ET 200SP BusAdapter PROFINET, 1x 10/100/1000 Mbps Ethernet, 2x USB 3.0, 2x USB 2.0, and 1x DisplayPort.
Packaging dimensions are 18.90 x 14.20 x 9.20 cm; net weight is 1.029 kg.
Frequently Asked Questions
What is the exact configuration of 6ES7677-2WB42-0GK0?
It is a SIMATIC ET 200SP Open Controller with CPU 1515SP PC2 TF and HMI 128PT.
What software is preinstalled?
Windows 10 IoT Enterprise LTSC 2019 64-bit, S7-1500 Failsafe Software Controller CPU 1505SP TF V2x, and WinCC Runtime Advanced V17 are preinstalled.
Which interfaces does the controller have?
It has 1x CFast slot, 1x SD/MMC slot, 1x connection for an ET 200SP BusAdapter PROFINET, 1x 10/100/1000 Mbps Ethernet, 2x USB 3.0, 2x USB 2.0, and 1x DisplayPort.
What should I provide for a project quotation?
Provide the requested quantity, destination, schedule context, and any additional BOM lines.
