Product Overview
Technical Summary
| Product type | KTP700F Mobile |
|---|---|
| Display | 7 in TFT widescreen display, LED backlighting |
| Resolution | 800 pixel x 480 pixel |
| Function keys | 8 |
| Touch operation | Yes; multi-touch: No |
| PROFINET interface | 1 |
| USB interface | 1; USB 2.0 |
| Supply | 24 V DC; permissible range from 19.2 V to 28.8 V |
| Memory available for user data | 12 Mbyte |
| Protection | IP65 (all-round) |
Key Features
7 in TFT widescreen display with LED backlighting, 800 pixel horizontal resolution, 480 pixel vertical resolution, 16 777 216 colors, key and touch operation, and 8 function keys.

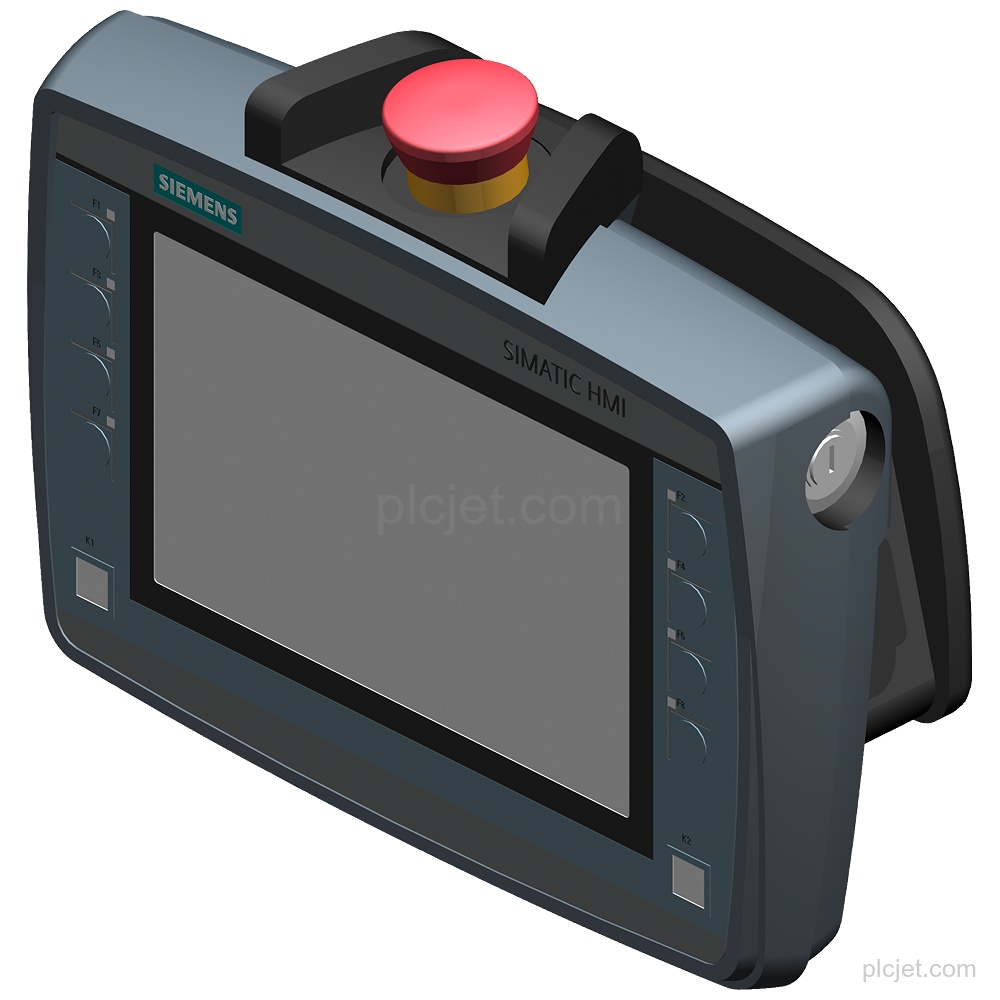

Key-operated switch, illuminated pushbutton, 3-stage acknowledgement button, stop button with forced blocking, and illuminated emergency stop button with forced blocking.
1 PROFINET interface, 1 industrial Ethernet interface, 1 USB 2.0 interface, and 1 SD card slot.
Supports PROFINET IO, PROFIsafe, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, CSS, JavaScript, MRP, and MODBUS.
DC supply with a rated value of 24 V and a permissible range from 19.2 V to 28.8 V; current consumption is 350 mA and typical active power input is 8.5 W.
Active Product; packaging dimensions are 26.20 x 21.20 x 9.90 cm and net weight is 1.336 kg.
Frequently Asked Questions
What is the exact Siemens line item?
It is the Siemens SIMATIC HMI KTP700F Mobile, order number 6AV2125-2GB23-0AX0.
What display and input configuration does it have?
It has a 7 in TFT widescreen display, 800 pixel x 480 pixel resolution, 8 function keys, and touch operation. Multi-touch is not available.
Which interfaces are included?
It has 1 PROFINET interface, 1 industrial Ethernet interface, 1 USB 2.0 interface, and 1 SD card slot.
What should I provide for a project quotation?
Provide the requested quantity, destination, schedule context, and any additional BOM lines for this exact line item.
