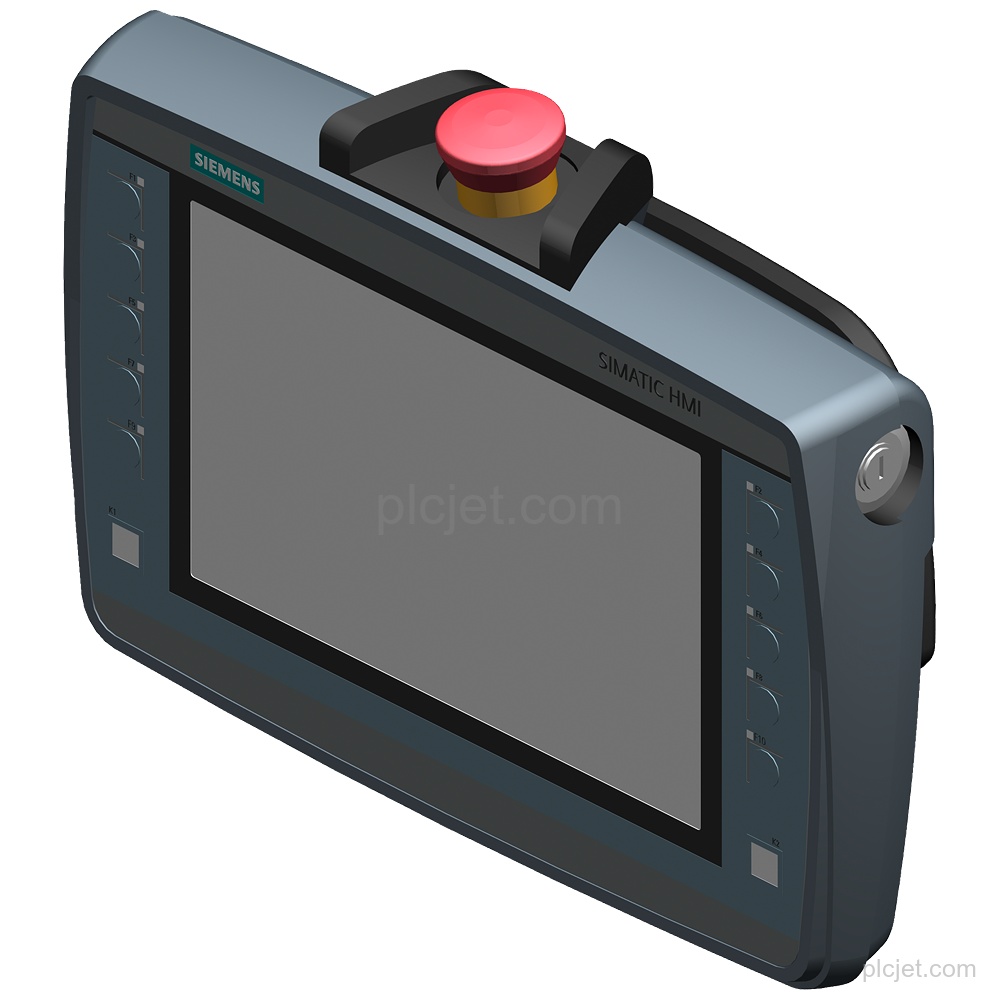

Product Overview
Technical Summary
| Product type | KTP900F Mobile |
|---|---|
| Display | 9 in TFT widescreen display, 800 x 480 pixel, 16 777 216 colors |
| Operator controls | 10 function keys, key and touch operation, emergency stop button, acknowledgement button and key-operated switch |
| PROFINET interfaces | 1 |
| USB interface | 1; USB 2.0 |
| SD card slots | 1 |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| User data memory | 12 Mbyte |
| Protocols | PROFINET IO, PROFIsafe, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP and MODBUS |
| Protection | IP65 (all-round) |
| Product lifecycle | Active Product |
Key Features
TFT widescreen display with LED backlighting, 9 in diagonal, 800 x 480 pixel resolution and 16 777 216 colors.
Key and touch operation with 10 function keys, illuminated emergency stop button with forced blocking, 3-stage acknowledgement button and key-operated switch.
1 PROFINET interface, 1 industrial Ethernet interface, 1 USB 2.0 interface and 1 SD card slot.
DC supply with a rated value of 24 V and a permissible range of 19.2 V to 28.8 V.
Supports PROFINET IO, PROFIsafe, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS and MODBUS.
IP65 all-round protection; configurable emergency stop/stop button from WinCC Comfort V13 SP1.
Frequently Asked Questions
What is the exact Siemens line item?
The exact line item is Siemens 6AV2125-2JB23-0AX0, KTP900F Mobile.
What display configuration does it have?
It has a 9 in TFT widescreen display with LED backlighting, 800 x 480 pixel resolution and 16 777 216 colors.
Which interfaces are included?

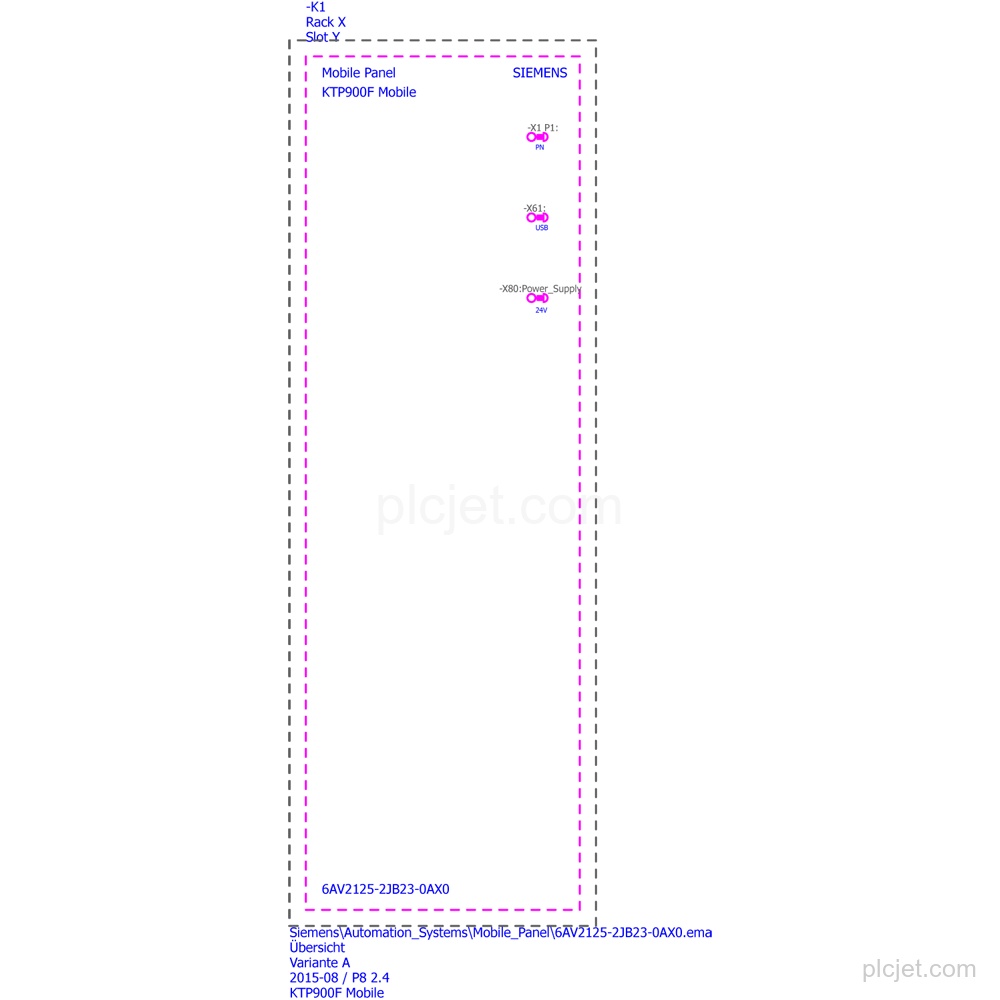

It has 1 PROFINET interface, 1 industrial Ethernet interface, 1 USB 2.0 interface and 1 SD card slot.
What supply voltage is required?
The DC supply has a rated value of 24 V, with a permissible range of 19.2 V to 28.8 V.
