Product Overview
Technical Summary

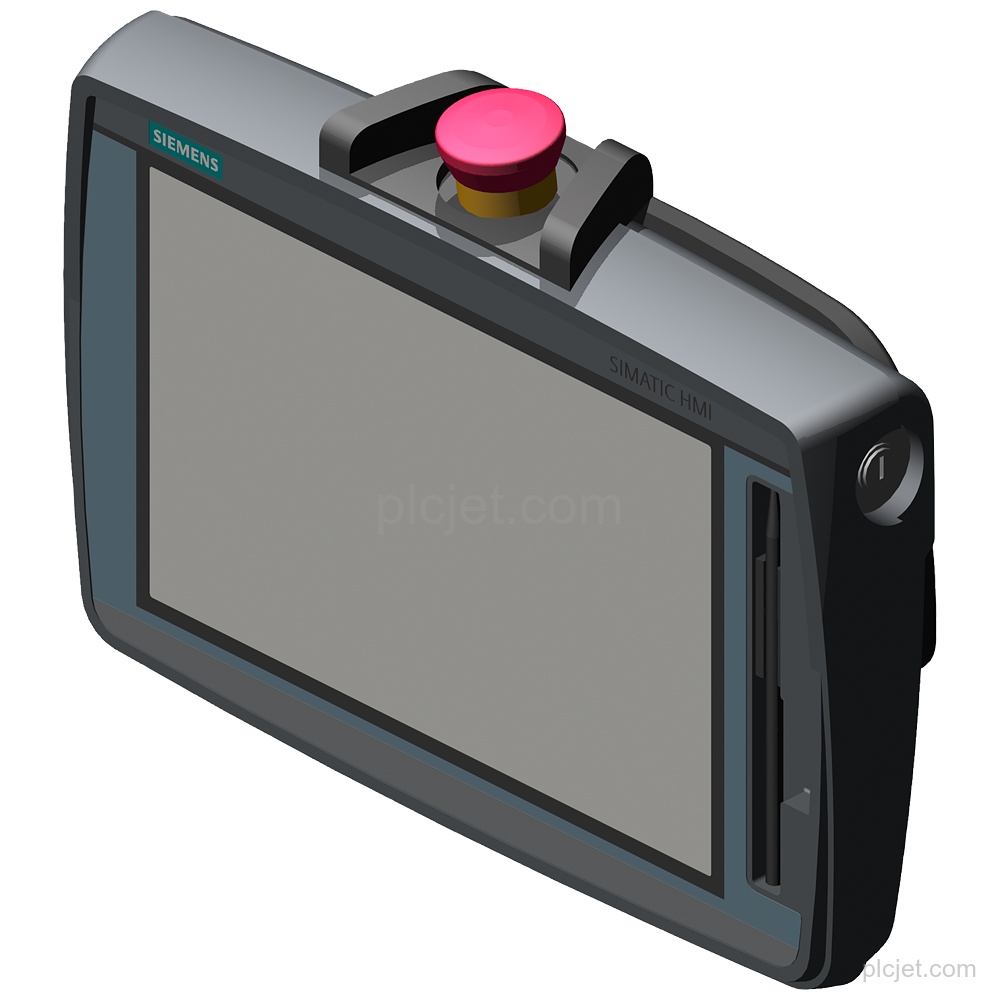

| Product type | TP1000F Mobile |
|---|---|
| Display | TFT widescreen display, LED backlighting; 16 777 216 colors |
| Resolution | 1,280 x 800 pixel |
| Touch operation | Yes; multi-touch: No |
| Operator controls | Stop button, emergency stop button, acknowledgement button, key-operated switch, illuminated pushbutton |
| PROFINET interface | 1 |
| USB interface | 1; USB 2.0 |
| Supply | DC; rated value 24 V; permissible range 19.2 V to 28.8 V |
| Current consumption | 450 mA rated value |
| Active power input | 11 W typ. |
| Protection | IP65 (all-round) |
Key Features
TFT widescreen display with LED backlighting, 16 777 216 colors, 1,280 x 800 pixel resolution, and touch operation.
Has a key-operated switch, 3-stage acknowledgement button, illuminated pushbutton, forced-blocking stop button, and illuminated forced-blocking emergency stop button.

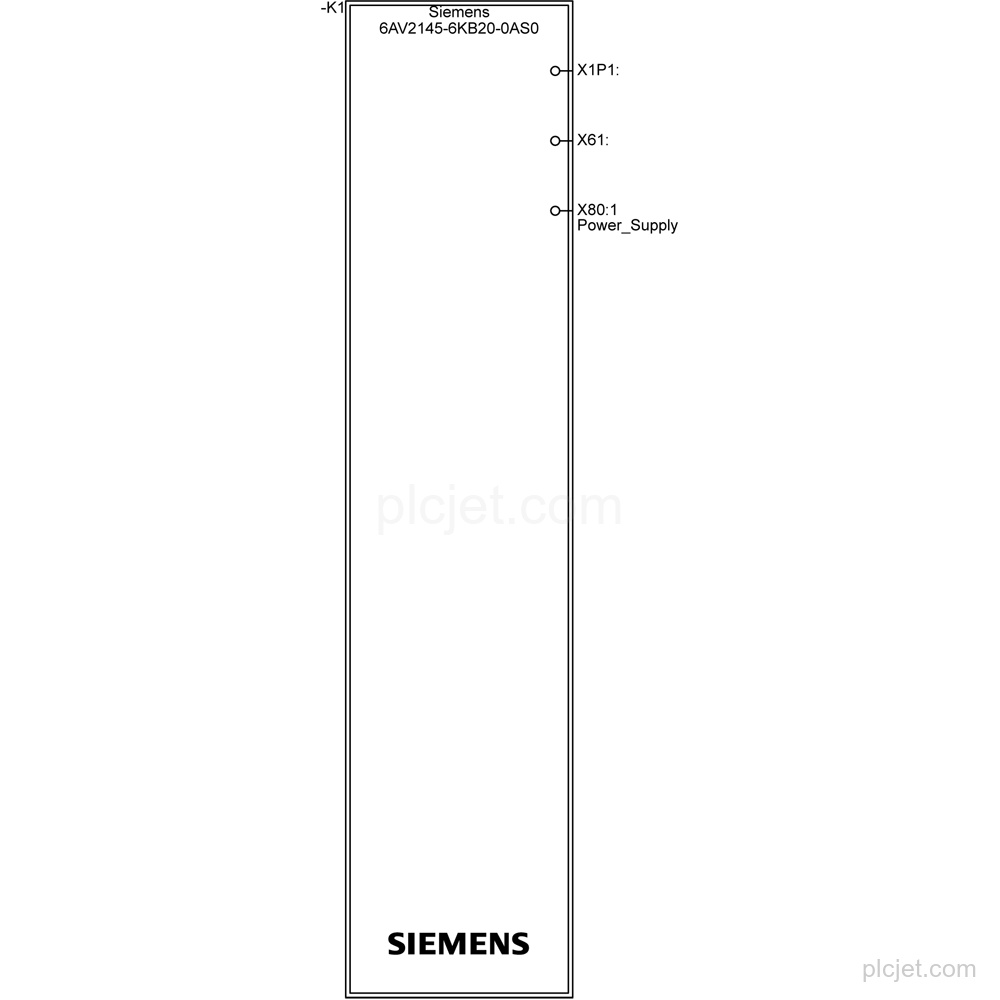

Has 1 PROFINET interface, 1 industrial Ethernet interface, 1 USB 2.0 interface, and 1 SD card slot.
DC supply with rated value 24 V, permissible range 19.2 V to 28.8 V, rated current consumption 450 mA, and typical active power input 11 W.
Has IP65 all-round protection and is an Active Product.
Frequently Asked Questions
What is the exact product type of Siemens 6AV2145-6KB20-0AS0?
It has the product type designation TP1000F Mobile.
What display and resolution does this line item have?
It has a TFT widescreen display with LED backlighting, 16 777 216 colors, and 1,280 x 800 pixel resolution.
Which interfaces are included?
It has 1 PROFINET interface, 1 industrial Ethernet interface, 1 USB 2.0 interface, and 1 SD card slot.
What supply voltage does the configuration require?
The supply is DC with a rated value of 24 V and a permissible range of 19.2 V to 28.8 V.
