Product Overview
Technical Summary
| Product type | KTP700F |
|---|---|
| Display | 7 in TFT widescreen display, LED backlighting |
| Resolution | 800 pixel x 480 pixel |
| Operation | Key and touch operation; multi-touch: No |
| Function keys | 6 |
| Supply voltage | 24 V DC; permissible range from 19.2 V to 28.8 V |
| PROFINET interfaces | 1 |
| USB interface | 1; USB 2.0 |
| SD card slots | 1 |
| Protection | IP65 (all-round) |
Key Features
7 in TFT widescreen display with LED backlighting, 800 x 480 pixel resolution, 16 777 216 colors, key and touch operation, and no multi-touch operation.
6 function keys, 2 illuminated push-buttons, a key-operated switch, an acknowledgement button, an emergency stop button, a stop button and a handwheel.
1 industrial Ethernet interface, 1 PROFINET interface, 1 USB 2.0 interface and 1 SD card slot; supports PROFINET IO, PROFIsafe, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP and MODBUS.
DC supply with a rated value of 24 V and a permissible range from 19.2 V to 28.8 V.
Emergency stop/stop button configurable from WinCC Comfort V15; 12 Mbyte memory available for user data.
Frequently Asked Questions
What exact product is Siemens 6AV2145-8GB00-0AA0?

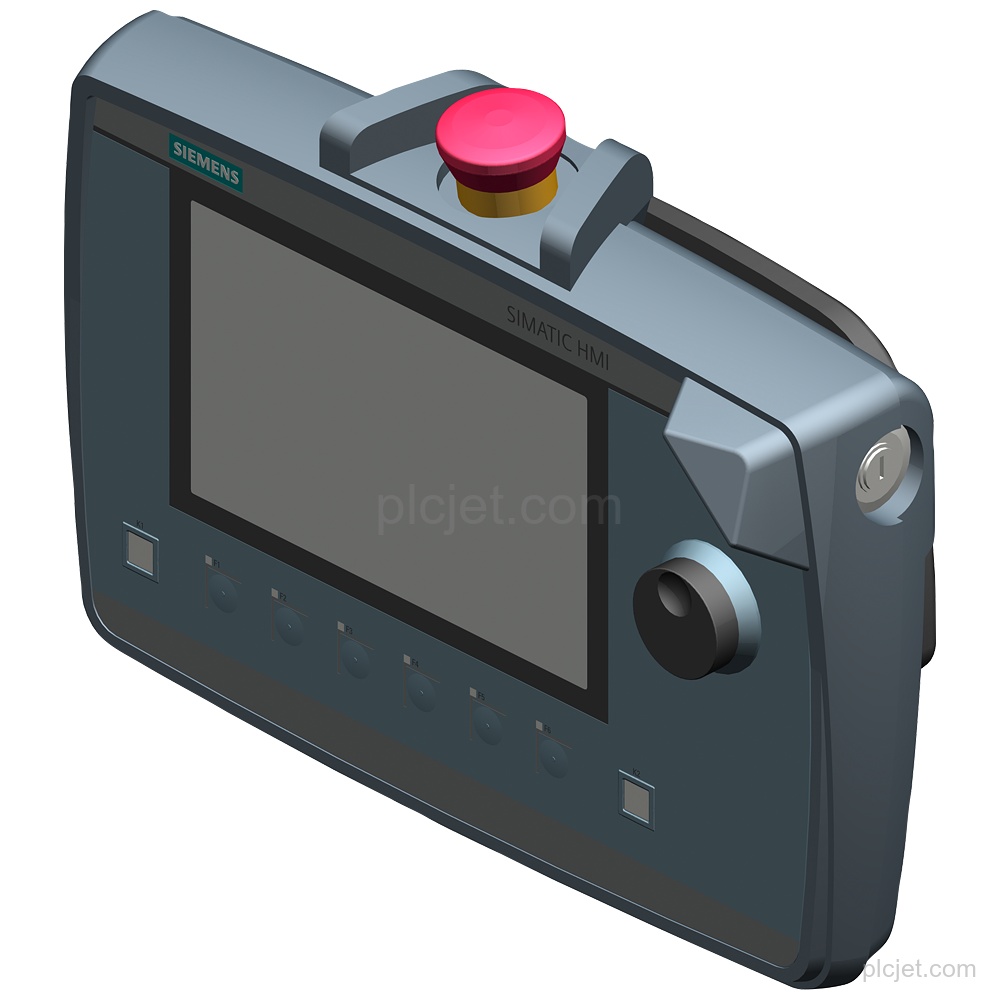

It is a KTP700F mobile HMI panel.
What display does the KTP700F have?
It has a 7 in TFT widescreen display with 800 x 480 pixel resolution and 16 777 216 colors.
Which interfaces are available?
It has 1 industrial Ethernet interface, 1 PROFINET interface, 1 USB 2.0 interface and 1 SD card slot.
What is included in the specified configuration?
It has key and touch operation, 6 function keys, 2 illuminated push-buttons, a key-operated switch, an acknowledgement button, an emergency stop button, a stop button and a handwheel.
