Product Overview
Technical Summary
| Product type | KTP700F |
|---|---|
| Display | 7 in TFT widescreen display, LED backlighting |
| Resolution | 800 x 480 pixel |
| Operator operation | Key and touch operation; 6 function keys |
| Industrial Ethernet interfaces | 1 |
| PROFINET interfaces | 1 |
| Supply | DC, rated value 24 V; permissible range 19.2 V to 28.8 V |
| Protection | IP65 (all-round) |
Key Features

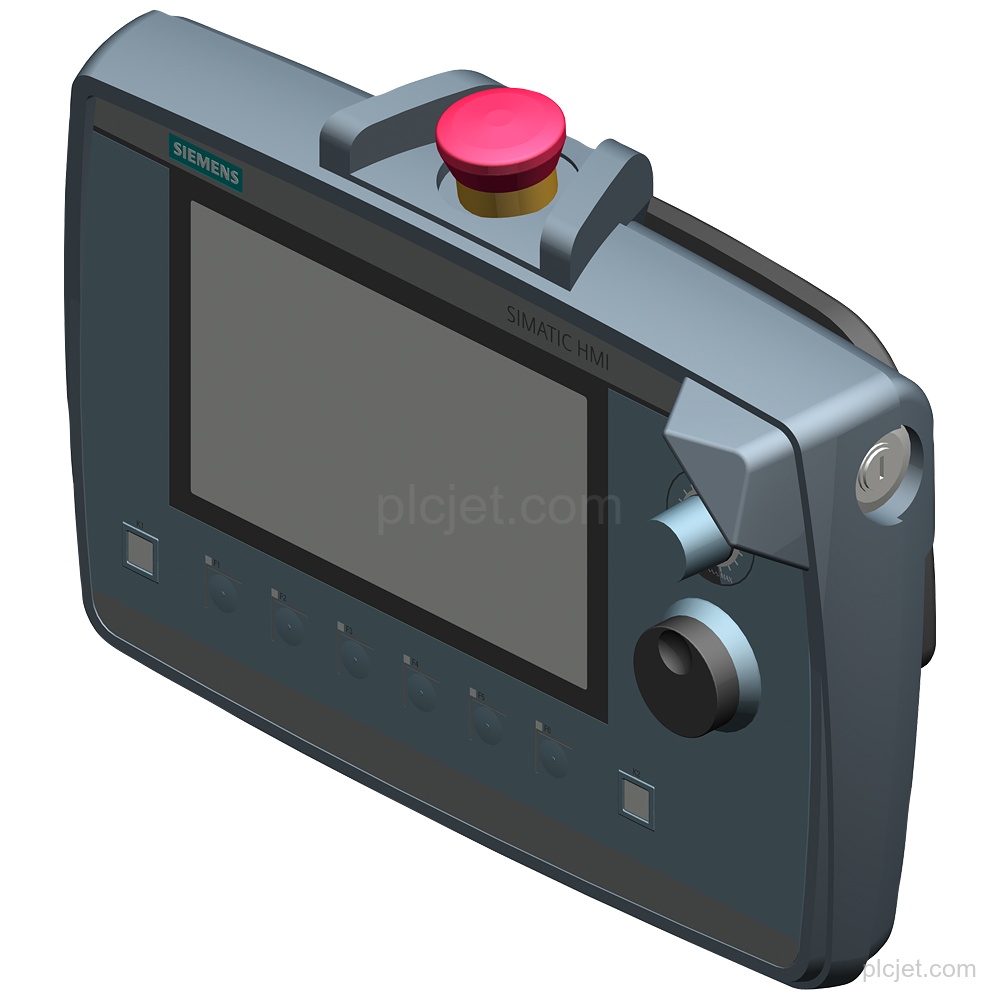

TFT widescreen display with LED backlighting, 7 in diagonal, 800 x 480 pixel resolution, and 16 777 216 colors.
Key and touch operation with 6 function keys, 6 function keys with LEDs, numeric and alphanumeric onscreen keyboards, and no multi-touch screen.
Stop button, illuminated and forced-blocking emergency stop button, 3-stage acknowledgement button, key-operated switch, illuminated pushbutton, and handwheel.
1 industrial Ethernet interface, 1 PROFINET interface, 1 USB 2.0 interface, and 1 SD card slot.
Supports PROFINET, PROFINET IO, PROFIsafe, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, CSS, JavaScript, and MODBUS.
DC supply with a rated value of 24 V and a permissible range from 19.2 V to 28.8 V; IP65 (all-round).
Frequently Asked Questions
What is the exact product type of Siemens 6AV2145-8GB01-0AA0?
The product type designation is KTP700F.
What display and operator controls does this configuration have?
It has a 7 in TFT widescreen display with 800 x 480 pixel resolution, key and touch operation, 6 function keys, and the listed stop, emergency stop, acknowledgement, key-operated switch, illuminated pushbutton, and handwheel controls.
Which interfaces and protocols are supported?
It has 1 industrial Ethernet interface, 1 PROFINET interface, 1 USB 2.0 interface, and 1 SD card slot. Supported protocols include PROFINET, PROFINET IO, PROFIsafe, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP, HTTP, HTTPS, HTML, CSS, JavaScript, and MODBUS.
What supply voltage and protection rating apply?
The supply is DC, with a rated value of 24 V and a permissible range from 19.2 V to 28.8 V. Protection is IP65 (all-round).
Can this exact line item be included in a project quotation?
Yes. Submit the required quantity, destination, schedule context, and any additional BOM lines for quotation review.
