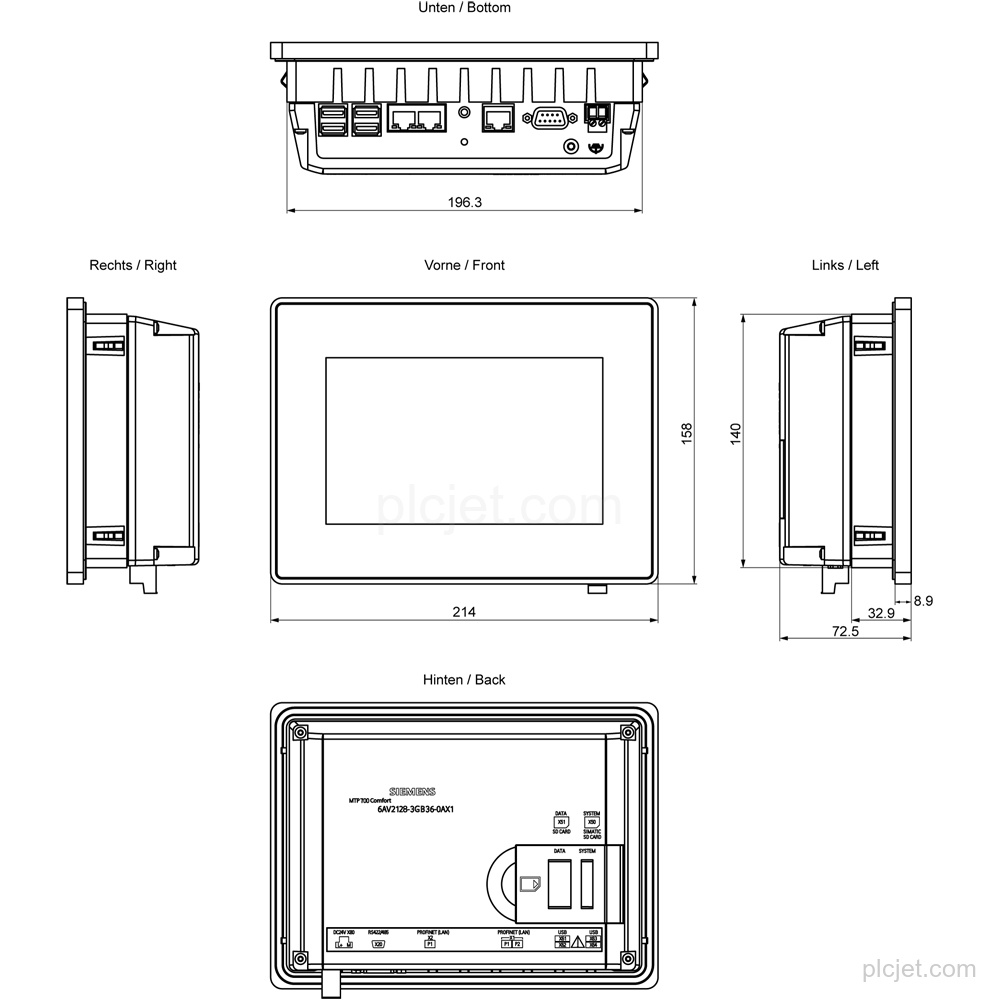

Product Overview
Technical Summary
| Product type | MTP700 Unified Comfort |
|---|---|
| Display | 7 in widescreen TFT, 16 777 216 colors |
| Resolution | 800 pixel × 480 pixel |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Ethernet interfaces | 2; 2 ports (switch) + independent port |
| USB interfaces | 4; USB 3.1 Gen. 1 (type A) |
| Mounting | Vertical; portrait and landscape possible |
| Protection | IP65 at the front; IP20 at the rear |
| Lifecycle | Active Product |
Key Features
TFT display with 16 777 216 colors, 800 pixel × 480 pixel resolution, touch operation and multi-touch capability.
Has 2 industrial Ethernet interfaces with 2 ports on an integrated switch plus 1 independent port; PROFINET is supported.
Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
Vertical mounting is supported, with portrait and landscape mounting possible; the maximum permissible angle of inclination without external ventilation is 35°.
Protection is IP65 at the front and IP20 at the rear; the front has NEMA Enclosure Type 4x and Type 12.
Frequently Asked Questions
What is the exact product type of 6AV2128-3GB36-0AX1?
It is the SIMATIC HMI MTP700 Unified Comfort Panel.
What display and touch configuration does this panel have?
It has a 7 in widescreen TFT display with 16 777 216 colors, 800 pixel × 480 pixel resolution, touch operation and multi-touch capability.

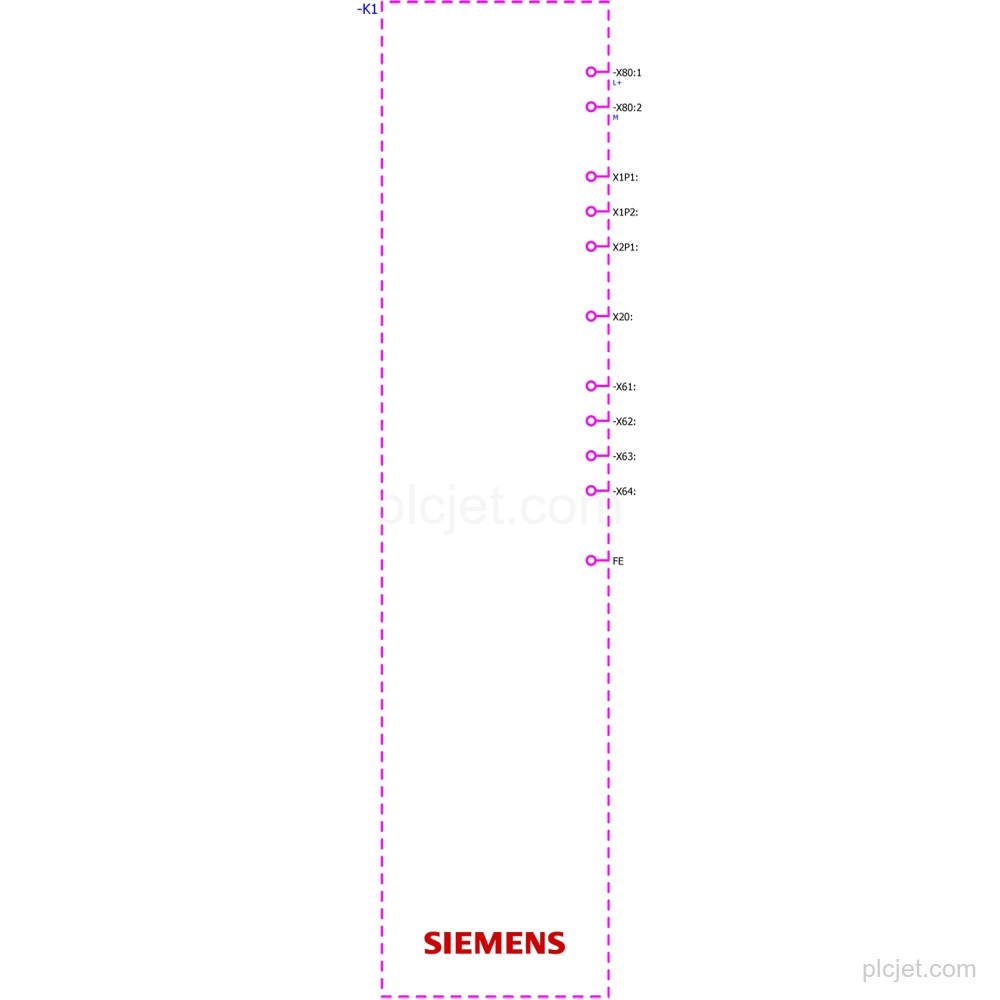

What supply voltage and interfaces are provided?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V. It has 2 industrial Ethernet interfaces, 1 RS 485 interface, 4 USB interfaces and 2 SD card slots.
