Product Overview
Technical Summary
| Product type | MTP1000 Unified Comfort |
|---|---|
| Display | 10.1 in widescreen TFT, 16 777 216 colors |
| Resolution | 1 280 pixel horizontal × 800 pixel vertical |
| Touch operation | Touch screen and multi-touch screen |
| Industrial Ethernet | 2 interfaces; 2 switch ports plus 1 independent port |
| Serial interface | 1 combined RS 422 / 485 interface |
| USB interfaces | 4 USB 3.1 Gen. 1 type A |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V permissible |
| Current consumption | 0.5 A rated; 1.1 A maximum |
| Mounting | Vertical; portrait and landscape possible |
| Protection | IP65 front; IP20 rear |
| Product lifecycle | Active Product |
Key Features
10.1 in widescreen TFT display with 16 777 216 colors, 1 280 pixel horizontal resolution and 800 pixel vertical resolution; capacitive touch and multi-touch operation.
2 industrial Ethernet interfaces with 2 ports on an integrated switch plus 1 independent port, 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces and 2 SD card slots.
24 V DC rated supply voltage with a permissible range of 19.2 V to 28.8 V; rated current consumption is 0.5 A and maximum current consumption is 1.1 A.
Vertical mounting position; portrait and landscape mounting are possible. Maximum permissible angle of inclination without external ventilation: 35°.
IP65 at the front and IP20 at the rear; configurable as of WinCC Unified V16. Contains open-source software provided free of charge on the enclosed DVD.
Frequently Asked Questions
What is the exact product type and order number?
It is the SIMATIC HMI MTP1000 Unified Comfort Panel, order number 6AV2128-3KB36-0AX1.

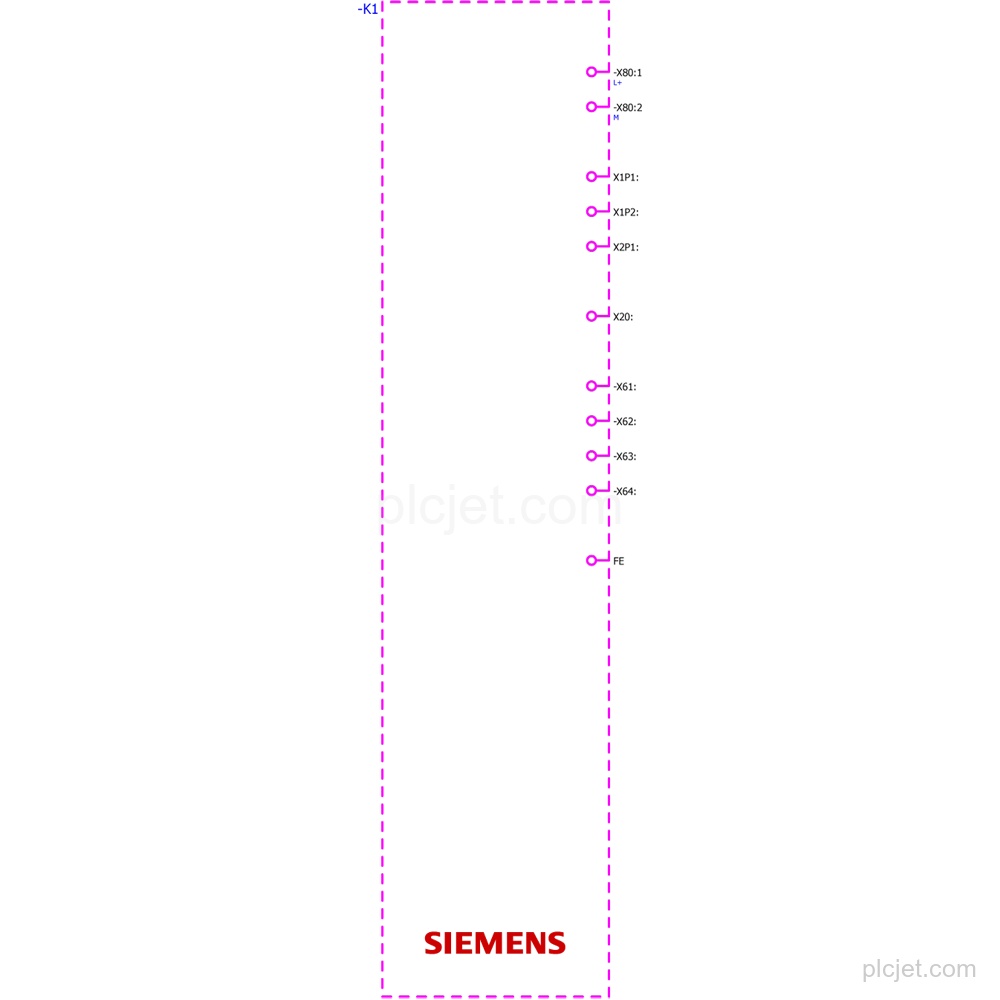

Which interfaces does this panel have?
It has 2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port, 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces and 2 SD card slots.
What supply voltage does the panel require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.

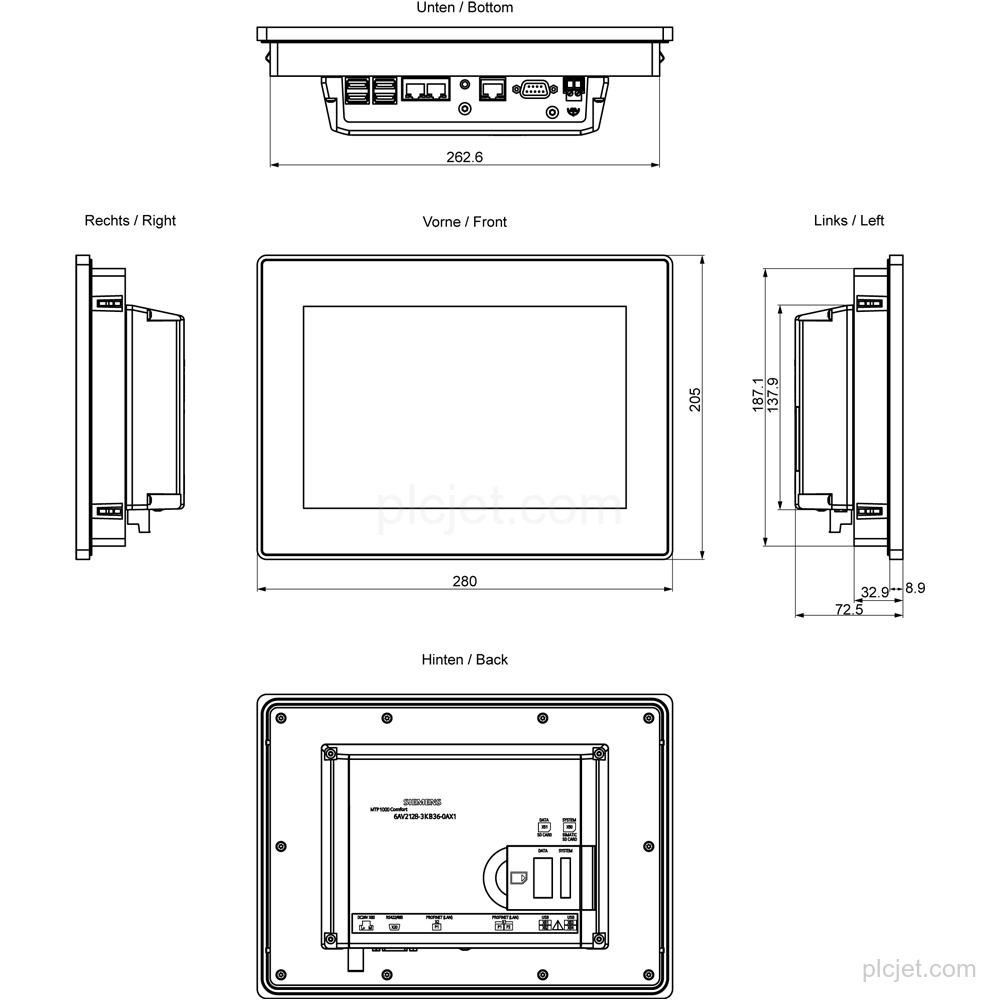

How can this panel be mounted?
The mounting position is vertical. Portrait and landscape mounting are possible, with a maximum permissible inclination angle of 35° without external ventilation.
What should be included when requesting this line item?
Provide the requested quantity, destination, schedule context and any additional BOM lines for the quotation request.
