Product Overview
Technical Summary

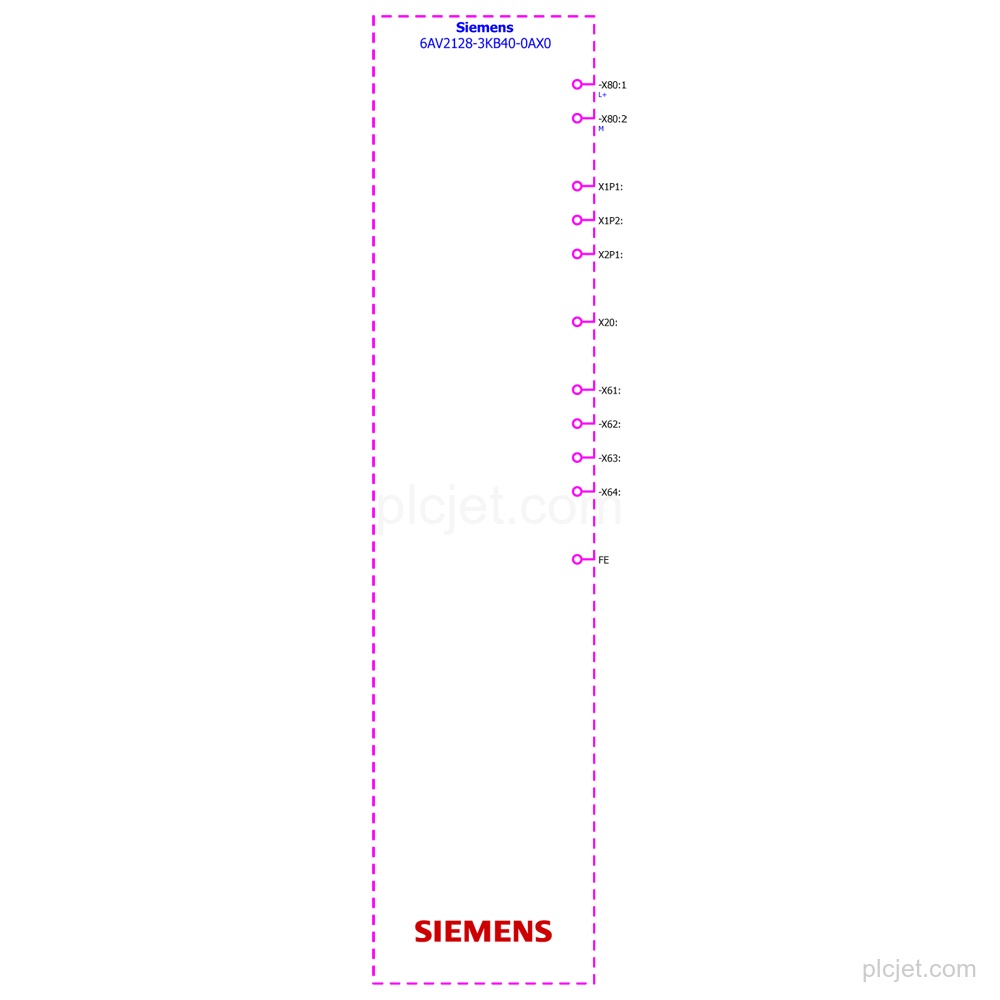

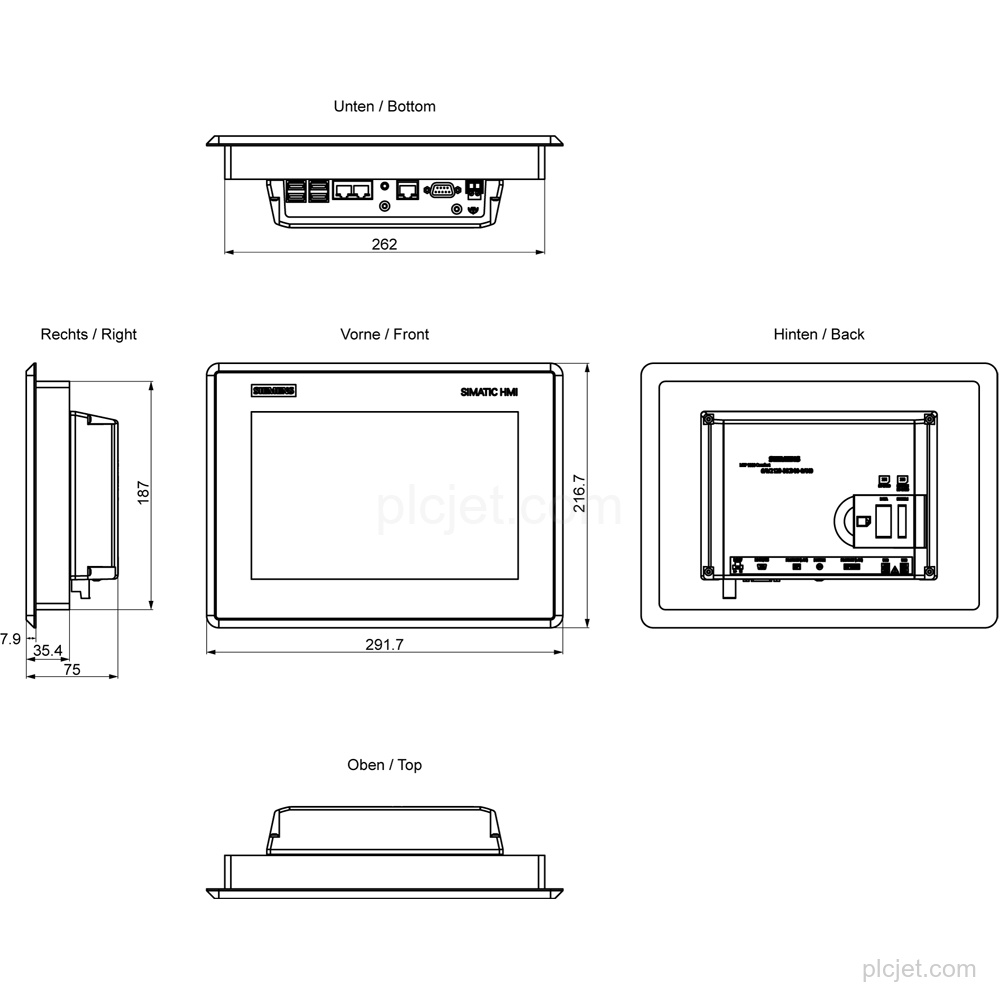

| Product type | MTP1000 Unified Comfort |
|---|---|
| Display | 10.1" widescreen TFT, 16 777 216 colors |
| Resolution | 1 280 pixel × 800 pixel |
| Touch operation | Touch screen and multi-touch screen |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Interfaces | 2 industrial Ethernet; 1 combined RS 422 / 485; 4 USB 3.1 Gen. 1 type A; 2 SD card slots |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP |
| Mounting | Horizontal or vertical; portrait or landscape; maximum permissible angle of inclination without external ventilation 35° |
| Protection | IP69 at the front; IP20 at the rear |
| Configuration | Configurable as of WinCC Unified Comfort V17 |
| Lifecycle | Active Product |
Key Features
10.1" widescreen TFT display with 16 777 216 colors, 1 280 pixel horizontal resolution, 800 pixel vertical resolution, touch operation and multi-touch screen.
Stainless-steel hygienic design with a blue FDA-compliant gasket and increased impact protection with splinter protection display front according to directives DIN EN 1672-2 and FDA 21 CFR 177.2006.
2 industrial Ethernet interfaces with 2 ports on an integrated switch plus an independent port, 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces and 2 SD card slots.
DC supply with a rated value of 24 V and a permissible range of 19.2 V to 28.8 V; rated current consumption is 0.5 A and maximum current consumption is 1.1 A.
Horizontal or vertical mounting is possible, including portrait and landscape format; the maximum permissible angle of inclination without external ventilation is 35°.
IP69 at the front and IP20 at the rear; configurable as of WinCC Unified Comfort V17 and contains open-source software provided free of charge on the enclosed Blu-Ray.
Frequently Asked Questions
What is the exact product type of 6AV2128-3KB40-0AX0?
It is a SIMATIC HMI MTP1000 Unified Comfort Panel.
What display does this configuration have?
It has a 10.1" widescreen TFT display with 16 777 216 colors and 1 280 pixel × 800 pixel resolution.
Which interfaces are included?
It has 2 industrial Ethernet interfaces, 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces and 2 SD card slots.
What supply voltage does it require?
The supply is DC with a rated value of 24 V and a permissible range of 19.2 V to 28.8 V.
How should I request this line item for a project?
Provide the requested quantity, destination, schedule context and any additional BOM lines for the quotation request.
