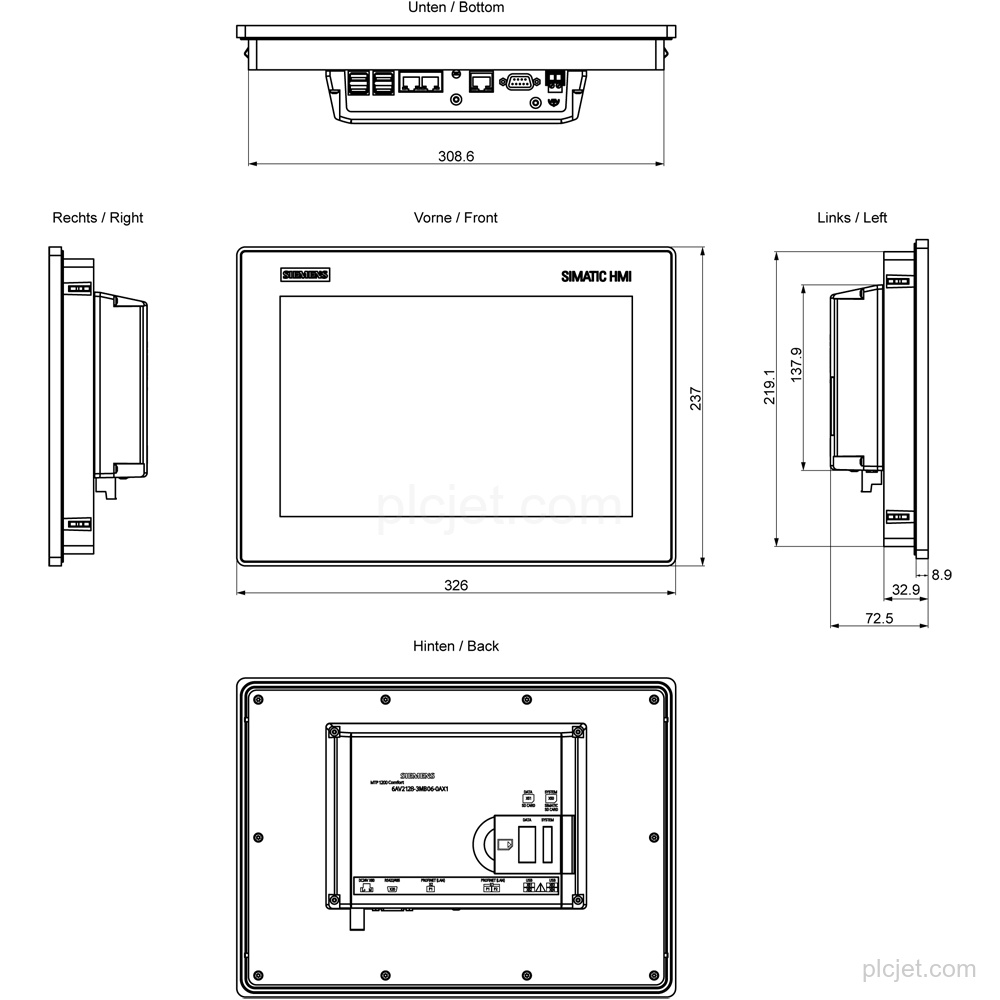

Product Overview
Technical Summary

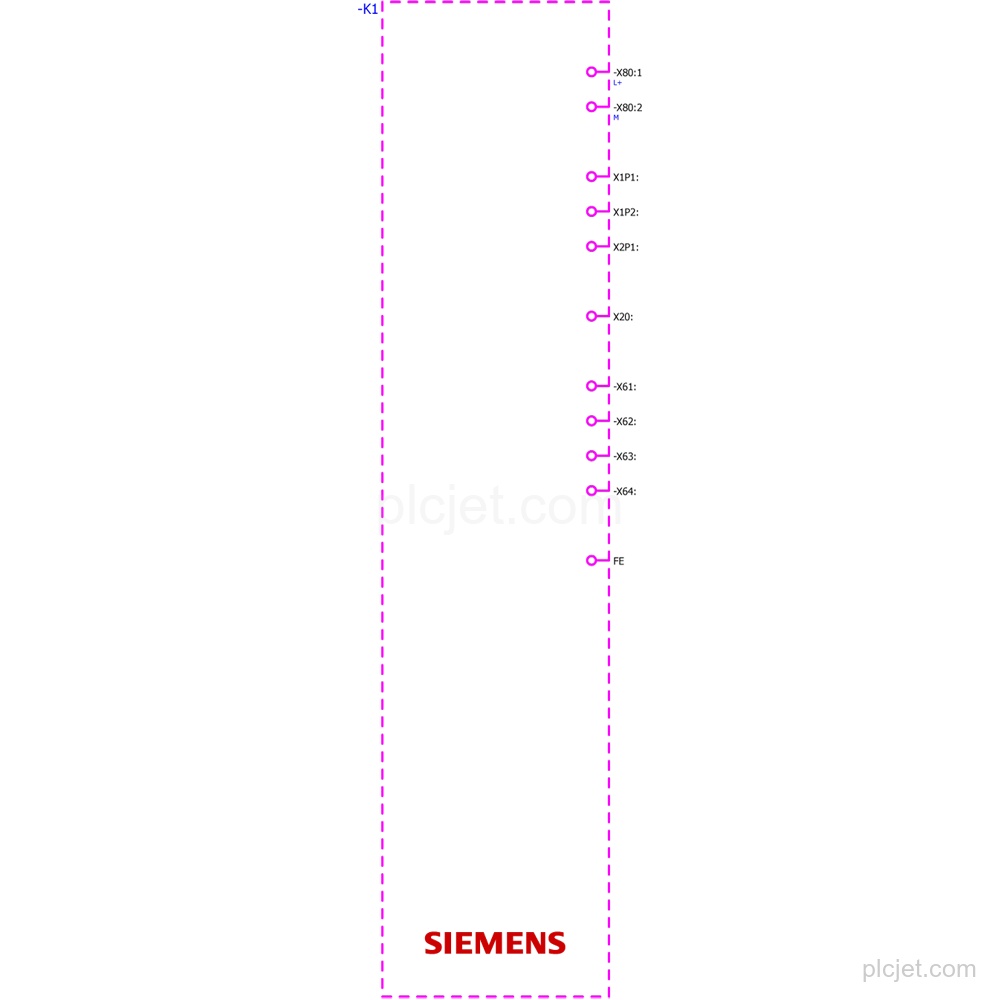

| Product type | MTP1200 Unified Comfort |
|---|---|
| Display | 12.1 in widescreen TFT, 16 777 216 colors |
| Resolution | 1 280 pixel × 800 pixel |
| Touch operation | Touch screen and multi-touch screen |
| Interfaces | 2 industrial Ethernet; 1 RS 485; 4 USB 3.1 Gen. 1 type A; 2 SD card slots |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Current consumption | 0.6 A rated; 1.3 A maximum |
| Mounting | Vertical; portrait or landscape; maximum inclination 35° without external ventilation |
| Protection | IP65 front; IP20 rear; NEMA Enclosure Type 4x and Type 12 front |
| Configuration | Configurable as of WinCC Unified V16 |
| Software inclusion | Open-source software provided free of charge on the enclosed DVD |
Key Features
TFT display with 16 777 216 colors and 1 280 pixel × 800 pixel resolution.
Supports touch-screen and multi-touch-screen operation, with numeric and alphanumeric onscreen keyboards.
Has 2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port; PROFINET is supported.
Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
Vertical mounting is provided; portrait and landscape mounting are possible, with a maximum permissible inclination of 35° without external ventilation.
Protection is IP65 at the front and IP20 at the rear; the front has NEMA Enclosure Type 4x and Type 12.
Frequently Asked Questions
Is 6AV2128-3MB06-0AX1 the MTP1200 Unified Comfort variant?
Yes. It is the SIMATIC HMI MTP1200 Unified Comfort Panel.
What display does this configuration have?
It has a 12.1 in widescreen TFT display with 16 777 216 colors and 1 280 pixel × 800 pixel resolution.
Which interfaces are available?
It has 2 industrial Ethernet interfaces, 1 RS 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
What is included with the configuration?
It contains open-source software, provided free of charge on the enclosed DVD.
What should be provided for a project quotation?
Provide the requested quantity, destination, schedule context, and any additional BOM lines.
