Product Overview
Technical Summary

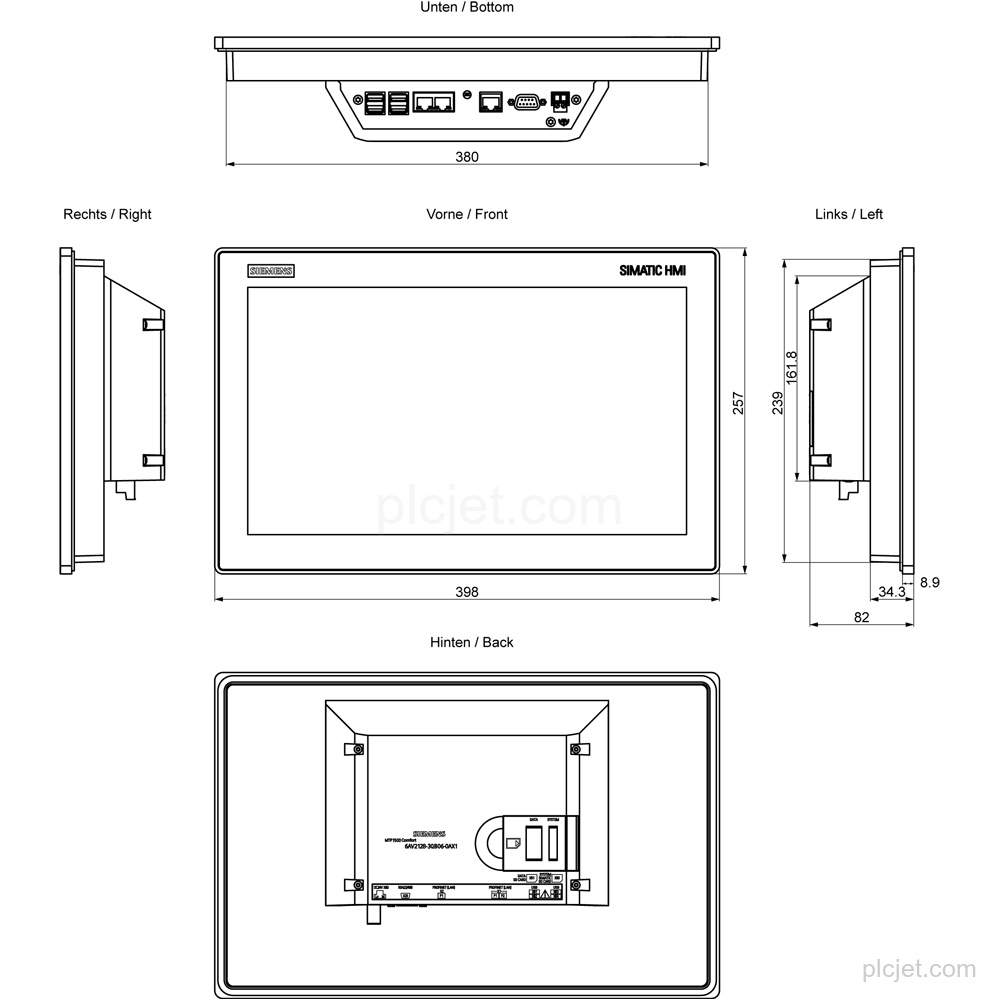

| Product type | MTP1500 Unified Comfort |
|---|---|
| Display | 15.6 in widescreen TFT, 16 777 216 colors |
| Resolution | 1 366 × 768 pixel |
| Touch operation | Touch screen and multi-touch screen |
| Industrial Ethernet | 2 interfaces; 2 switch ports plus 1 independent port |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| USB interfaces | 4; USB 3.1 Gen. 1 Type A |
| SD card slots | 2 |
| Mounting | Vertical; portrait and landscape possible |
| Maximum inclination | 35° without external ventilation |
| Protection | IP65 front; IP20 rear |
| Configuration | Configurable as of WinCC Unified V16; contains open-source software provided free of charge |
Key Features
15.6 in widescreen TFT display with 16 777 216 colors and 1 366 × 768 pixel resolution; touch and multi-touch operation are supported.

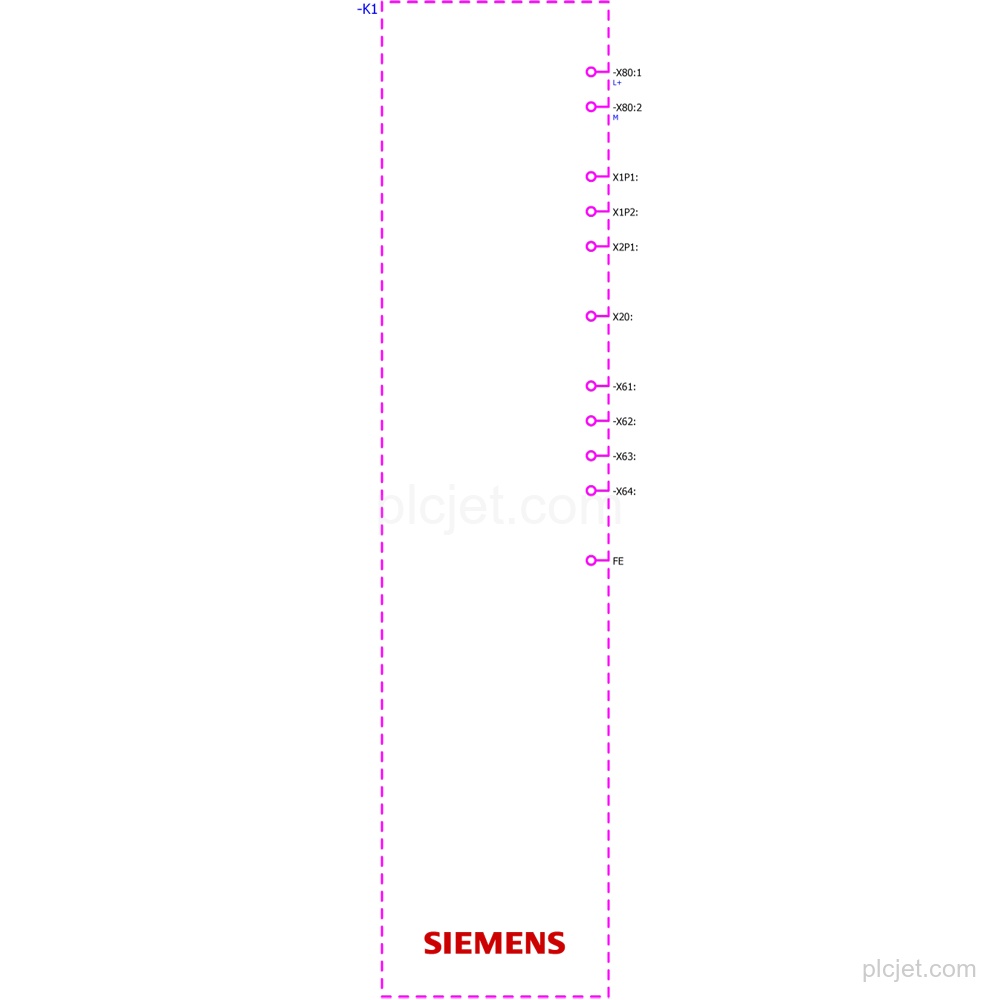

PROFINET is supported; the panel has 2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port.
Rated supply: 24 V DC; permissible DC range: 19.2 V to 28.8 V.
4 USB 3.1 Gen. 1 Type A interfaces and 2 SD card slots are provided.
Vertical mounting is specified; portrait and landscape mounting are possible. Maximum permissible inclination without external ventilation: 35°.
Protection class: IP65 at the front and IP20 at the rear. The front also has NEMA Enclosure Type 4x and Type 12.
Frequently Asked Questions
What is the exact Siemens line item?
It is Siemens 6AV2128-3QB06-0AX1, SIMATIC HMI MTP1500 Unified Comfort Panel.
What display and touch configuration does it have?
It has a 15.6 in widescreen TFT display with 16 777 216 colors, 1 366 × 768 pixel resolution, touch operation and multi-touch operation.
Which interfaces are provided?
It has 2 industrial Ethernet interfaces, 4 USB 3.1 Gen. 1 Type A interfaces and 2 SD card slots; PROFINET, TCP/IP, DHCP, SNMP, DCP and LLDP are supported.
What mounting and protection details should be retained in the BOM?
Mounting is vertical, with portrait and landscape mounting possible. The maximum permissible inclination without external ventilation is 35°; protection is IP65 at the front and IP20 at the rear.
What should be included with a project quotation request?
Include the exact line item, requested quantity, destination, schedule context and any additional BOM lines.
