Product Overview
Technical Summary
| Product type | MTP1500 Unified Comfort PRO |
|---|---|
| Display | 15.6 in widescreen TFT, 16 777 216 colors |
| Resolution | 1 366 pixel × 768 pixel |
| Mounting | Support arm, vertical; landscape format possible |
| Supply | 24 V DC; permissible range from 19.2 V to 28.8 V |
| Interfaces | 2 industrial Ethernet; 1 RS 422 / 485; 4 USB 3.1 Gen. 1 type A; 2 SD card slots |
| Protection | IP65 at the front and rear |
| Configuration | Configurable as of WinCC Unified Comfort V18 |
Key Features
15.6 in widescreen TFT display with 16 777 216 colors, 1 366 pixel × 768 pixel resolution, and multi-touch operation.

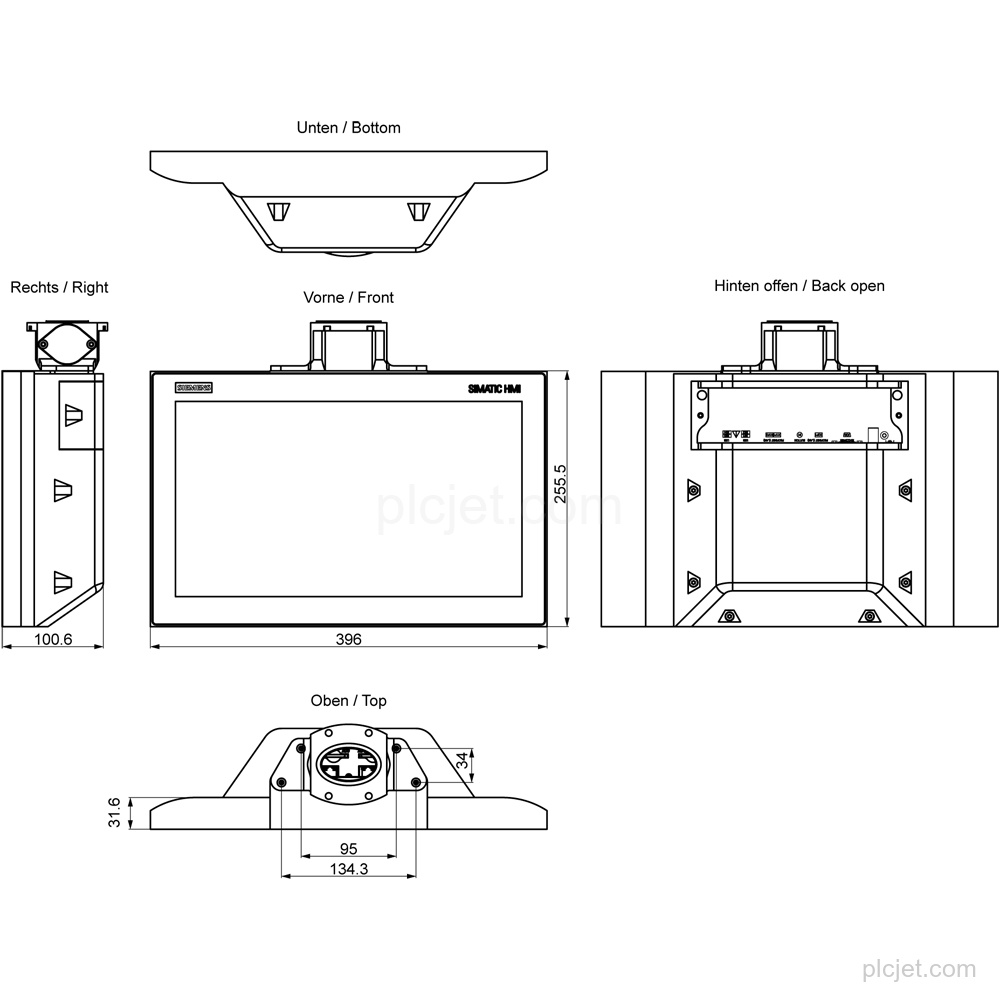

Support-arm mounting in vertical position; landscape format is possible, portrait format is not. The maximum permissible angle of inclination without external ventilation is 35°.
24 V DC rated supply with a permissible range from 19.2 V to 28.8 V; current consumption is 0.7 A rated and 1.3 A maximum.

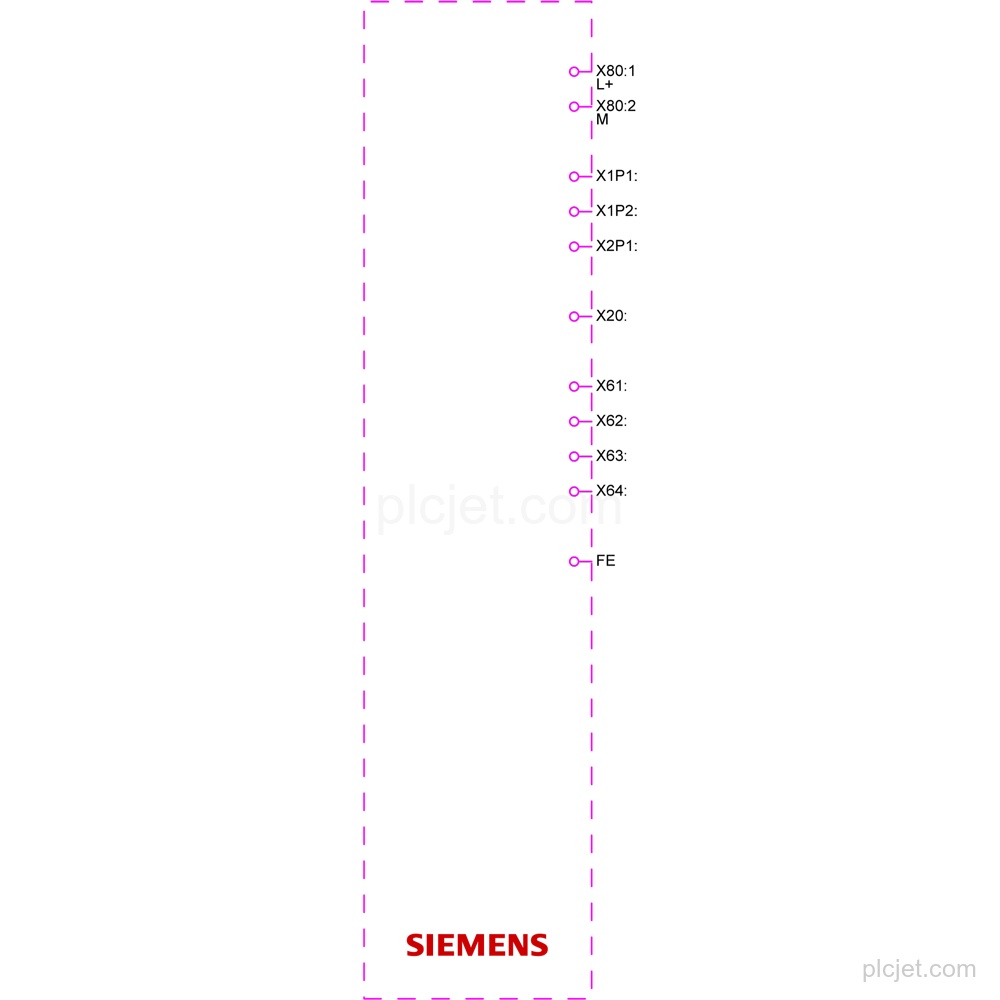

2 industrial Ethernet interfaces with 2 switch ports plus an independent port, 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
Configurable as of WinCC Unified Comfort V18; contains open-source software provided free of charge. Lifecycle: Active Product.
Frequently Asked Questions
What is the exact product type for Siemens 6AV2128-3QB27-0AX0?
The product type designation is MTP1500 Unified Comfort PRO.
What display does this line item have?
It has a 15.6 in widescreen TFT display with 16 777 216 colors and 1 366 pixel × 768 pixel resolution.
What supply voltage does the panel require?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
How is the panel mounted?
It uses support-arm mounting in a vertical position. Landscape format is possible; portrait format is not.
