Product Overview
Technical Summary
| Product type | MTP1500 Unified Comfort PRO |
|---|---|
| Display | 15.6 in widescreen TFT, 16 777 216 colors |
| Resolution | 1 366 pixel × 768 pixel |

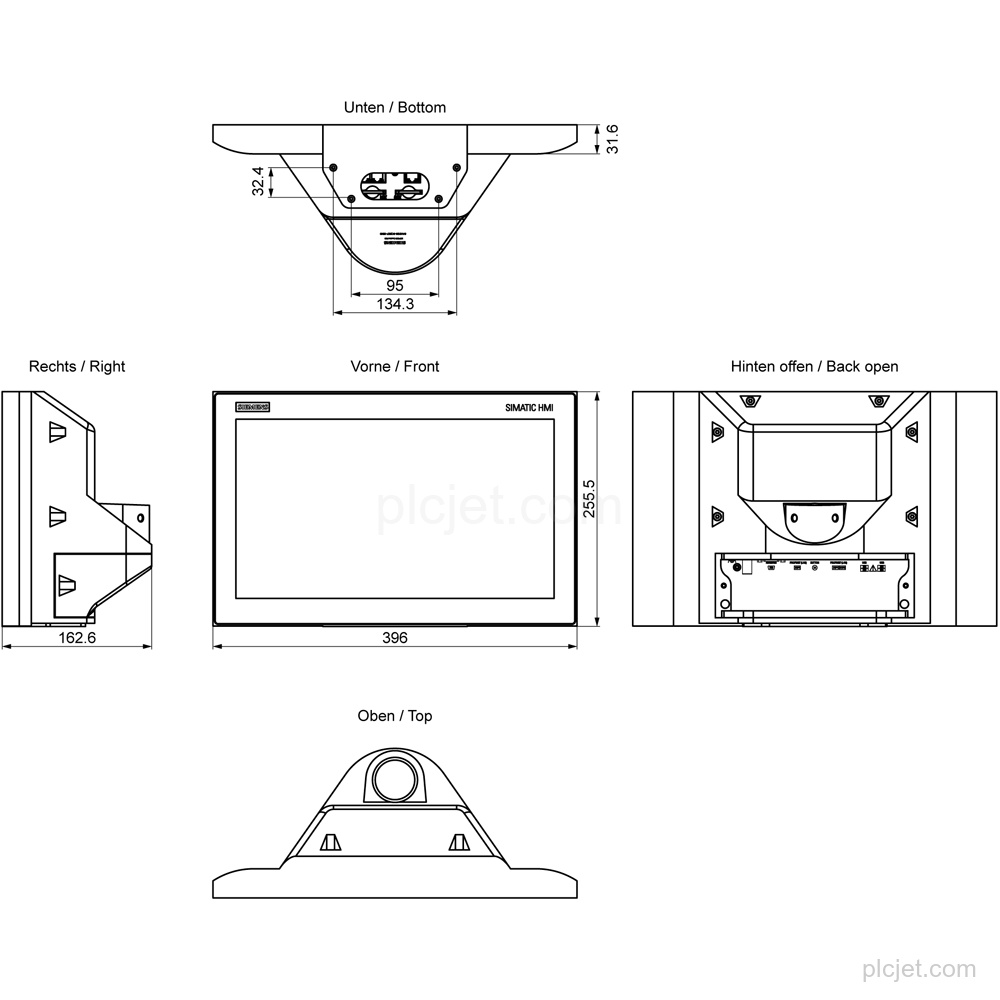

| Mounting | Support arm; vertical; landscape format possible |
| Supply | DC, rated value 24 V; permissible range 19.2 V to 28.8 V |
| Interfaces | 2 industrial Ethernet; 1 RS 422 / 485; 4 USB 3.1 Gen. 1 type A; 2 SD card slots |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP |
| Protection | IP65 at the front and rear; Enclosure Type 4, 4x and 12 at the front |
| Configuration | WinCC Unified Comfort V18 or later |
Key Features
15.6 in widescreen TFT display with 16 777 216 colors, 1 366 pixel × 768 pixel resolution, touch and multi-touch operation.
Support-arm mounting in vertical position; landscape format is possible, portrait format is not.
DC supply with a rated value of 24 V and a permissible range of 19.2 V to 28.8 V.

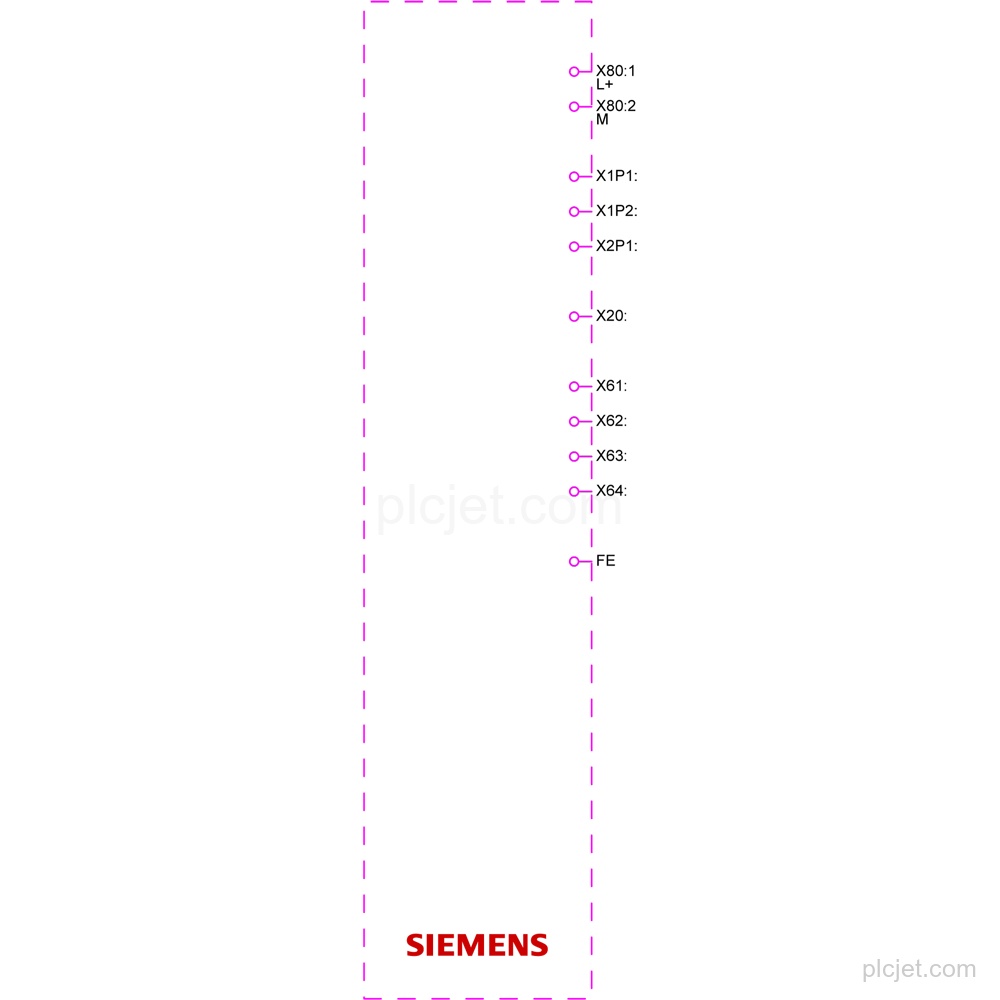

2 industrial Ethernet interfaces with 2 ports on an integrated switch plus 1 independent port; PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP and MRP are supported.
1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces and 2 SD card slots.
Configurable as of WinCC Unified Comfort V18; contains open-source software provided free of charge.
Frequently Asked Questions
What exact product is Siemens 6AV2128-3QB27-0BX0?
It is a SIMATIC HMI MTP1500 PRO, product type designation MTP1500 Unified Comfort PRO.
What display does this line item have?
It has a 15.6 in widescreen TFT display with 16 777 216 colors and 1 366 pixel × 768 pixel resolution.
How is the HMI mounted?
It uses support-arm mounting in a vertical position. Landscape format is possible; portrait format is not.
Which interfaces are included?
It has 2 industrial Ethernet interfaces, 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces and 2 SD card slots.
What should be provided for a project quotation?
Provide the requested quantity, destination, schedule context and any additional BOM lines for quotation review.
