Product Overview
Technical Summary
| Product type designation | MTP1500 Unified Comfort PRO |
|---|---|
| Display | 15.6 in widescreen TFT; 16 777 216 colors |
| Display resolution | 1 366 x 768 pixel |

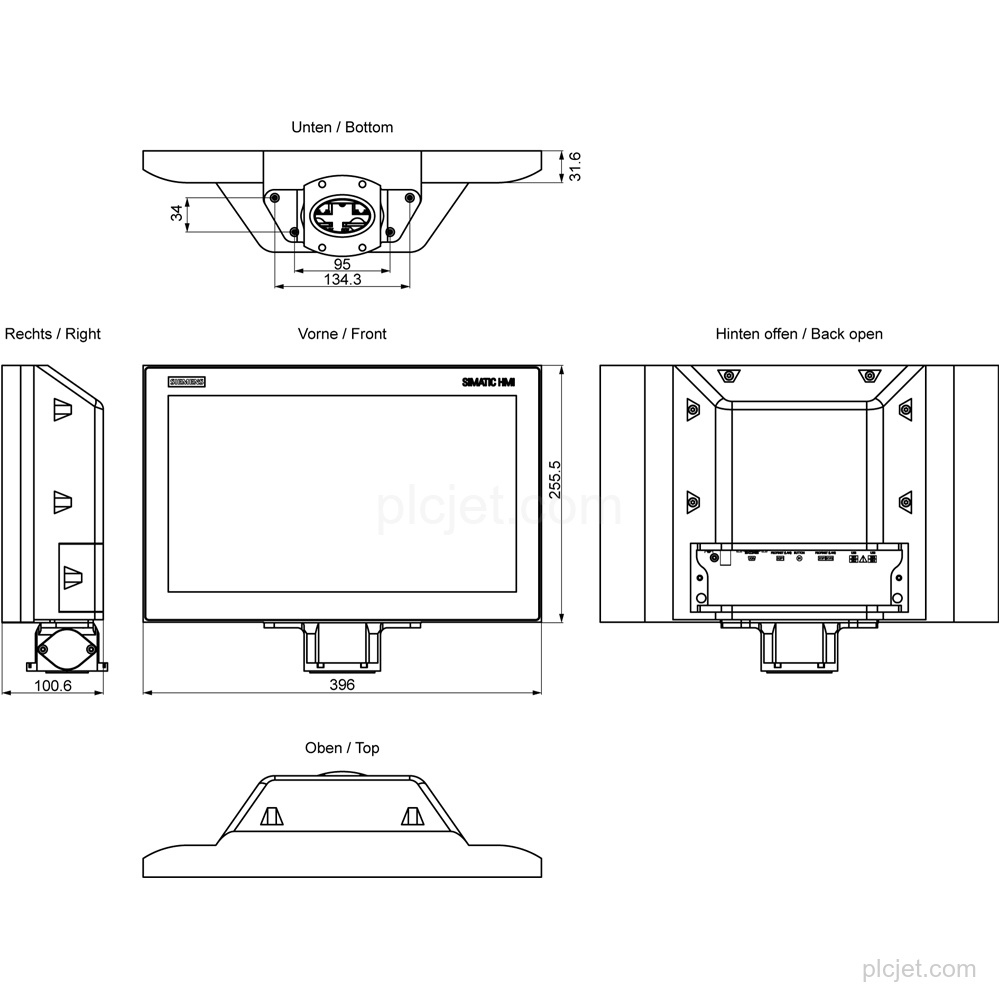

| Mounting | Pedestal; vertical position; landscape format possible |
| Supply voltage | 24 V DC rated; permissible range 19.2 V to 28.8 V |
| Current consumption | 0.7 A rated; 1.3 A maximum |
| Industrial Ethernet | 2 interfaces; 2 switch ports plus independent port |
| Serial interface | 1 RS 422 / 485 combined interface |
| USB interfaces | 4 USB 3.1 Gen. 1 type A |
| SD card slots | 2 |
| Protection | IP65 at the front and rear |
| Configuration and lifecycle | Configurable as of WinCC Unified Comfort V18; Active Product |
Key Features
15.6 in widescreen TFT display with 16 777 216 colors, 1 366 x 768 pixel resolution, touch operation and multi-touch operation.
Pedestal mounting in vertical position; landscape format is possible, portrait format is not, and the maximum permissible angle of inclination without external ventilation is 35°.
24 V DC rated supply with a permissible range of 19.2 V to 28.8 V; current consumption is 0.7 A rated and 1.3 A maximum.
2 industrial Ethernet interfaces with 2 switch ports plus an independent port, 1 combined RS 422 / 485 interface, and PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP and MRP support.
4 USB 3.1 Gen. 1 type A interfaces and 2 SD card slots.
Configurable as of WinCC Unified Comfort V18; the product lifecycle is Active Product and the device contains open-source software provided free of charge.
Frequently Asked Questions
What exact line item is this?
It is Siemens 6AV2128-3QB27-1BX0, with product type designation MTP1500 Unified Comfort PRO.
What display configuration does it have?
It has a 15.6 in widescreen TFT display with 16 777 216 colors and 1 366 x 768 pixel resolution, plus touch and multi-touch operation.
What supply and interfaces should be retained in the BOM?
Retain the 24 V DC supply, 2 industrial Ethernet interfaces, 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces and 2 SD card slots.
What mounting details should be checked?
The mounting is pedestal, with vertical positioning and landscape format possible. Portrait format is not possible; the maximum permissible angle of inclination without external ventilation is 35°.
What information should accompany a quotation request?
Provide the requested quantity, destination, schedule context and any additional BOM lines for the quotation request.
