Product Overview
Technical Summary

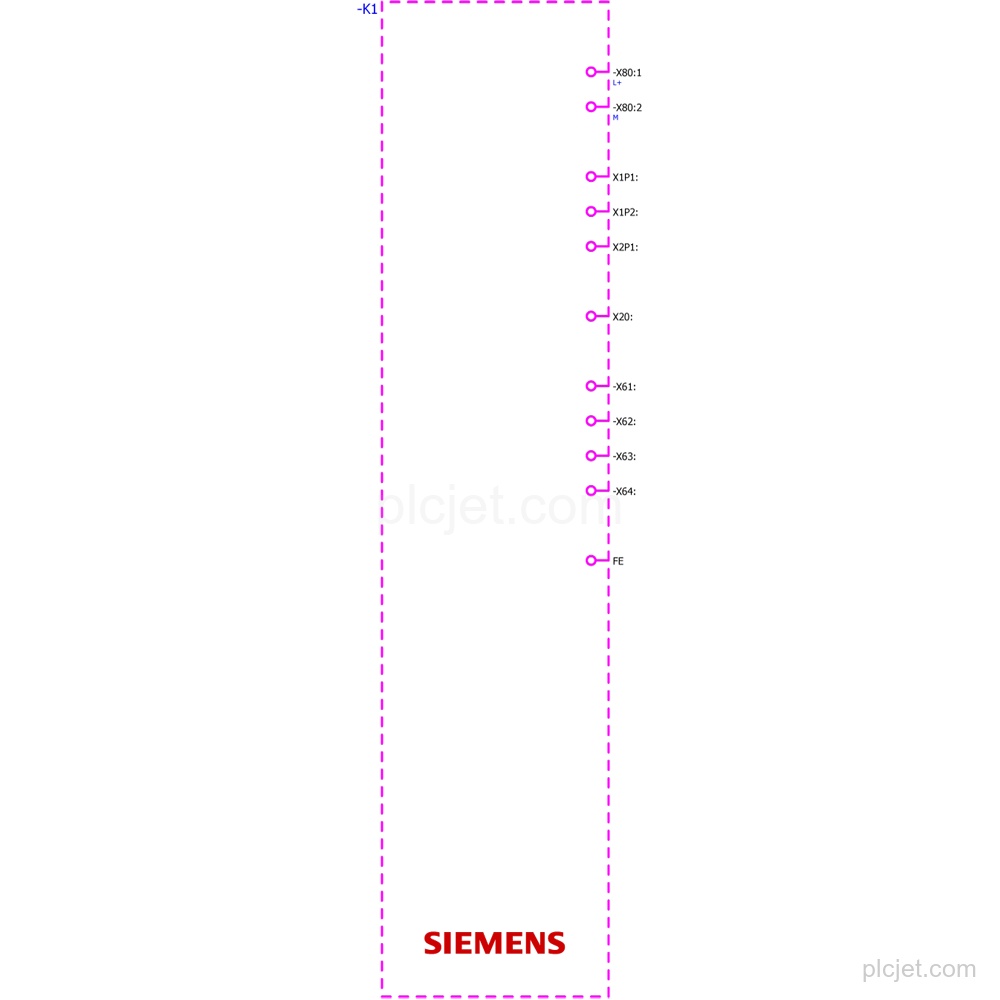

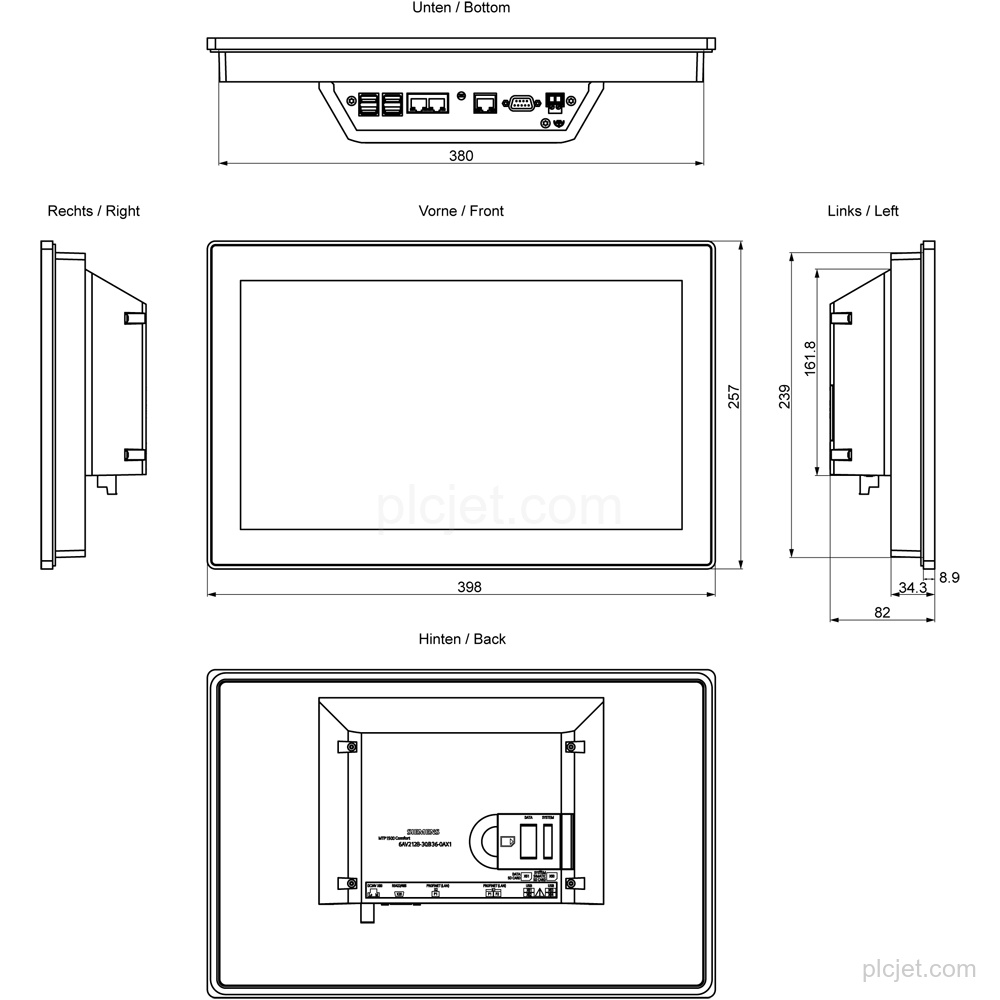

| Product type | MTP1500 Unified Comfort |
|---|---|
| Display | 15.6 in widescreen TFT, 16 777 216 colors |
| Resolution | 1 366 x 768 pixel |
| Touch operation | Touch screen and multi-touch screen |
| Interfaces | 2 industrial Ethernet, 1 combined RS 422 / 485, 4 USB 3.1 Gen. 1 type A, 2 SD card slots |
| Supply | DC, rated value 24 V; permissible range 19.2 V to 28.8 V |
| Current consumption | 0.7 A rated value; 1.3 A maximum |
| Mounting | Vertical; portrait and landscape formats possible |
| Inclination | Maximum permissible angle 35° without external ventilation |
| Protection | IP65 at the front; IP20 at the rear |
| Configuration | Configurable as of WinCC Unified Comfort V16 |
Key Features
15.6 in widescreen TFT display with 16 777 216 colors, 1 366 x 768 pixel resolution, touch operation, and multi-touch screen.
2 industrial Ethernet interfaces with 2 switch ports and 1 independent port, 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
DC supply with a rated value of 24 V and a permissible range from 19.2 V to 28.8 V.
PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP supported; protocol for PROFINET IO not supported.
Vertical mounting; portrait and landscape formats possible. Maximum permissible angle of inclination without external ventilation: 35°. Protection: IP65 at the front and IP20 at the rear.
Configurable as of WinCC Unified Comfort V16. Contains open-source software provided free of charge; Active Product.
Frequently Asked Questions
What is the exact Siemens HMI model?
The exact model is 6AV2128-3QB36-0AX1, SIMATIC HMI MTP1500 Unified Comfort Panel.
What display does this configuration have?
It has a 15.6 in widescreen TFT display with 16 777 216 colors and 1 366 x 768 pixel resolution.
Which interfaces are included?
It has 2 industrial Ethernet interfaces, 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
What supply and mounting details should be retained in the quotation?
Supply is DC, 24 V rated, with a permissible range from 19.2 V to 28.8 V. Mounting is vertical, with portrait or landscape format possible; the maximum permissible angle of inclination without external ventilation is 35°.
