Product Overview
Technical Summary
| Product type | MTP1500 Unified Comfort PRO Neutral Front |
|---|---|
| Display | 15.6 in widescreen TFT, 1 366 pixel × 768 pixel, 16 777 216 colors |
| Touch operation | Multi-touch screen |
| Mounting | Support arm; landscape format possible |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Interfaces | 2 industrial Ethernet interfaces; 1 combined RS 422 / 485; 4 USB 3.1 Gen. 1 type A |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP and MRP |
| Protection | IP65 at the front and rear |
| Configuration | Configurable as of WinCC Unified Comfort V18 |
| Lifecycle | Active Product |
Key Features
15.6 in widescreen TFT display with 1 366 pixel horizontal resolution, 768 pixel vertical resolution, 16 777 216 colors, and multi-touch operation.

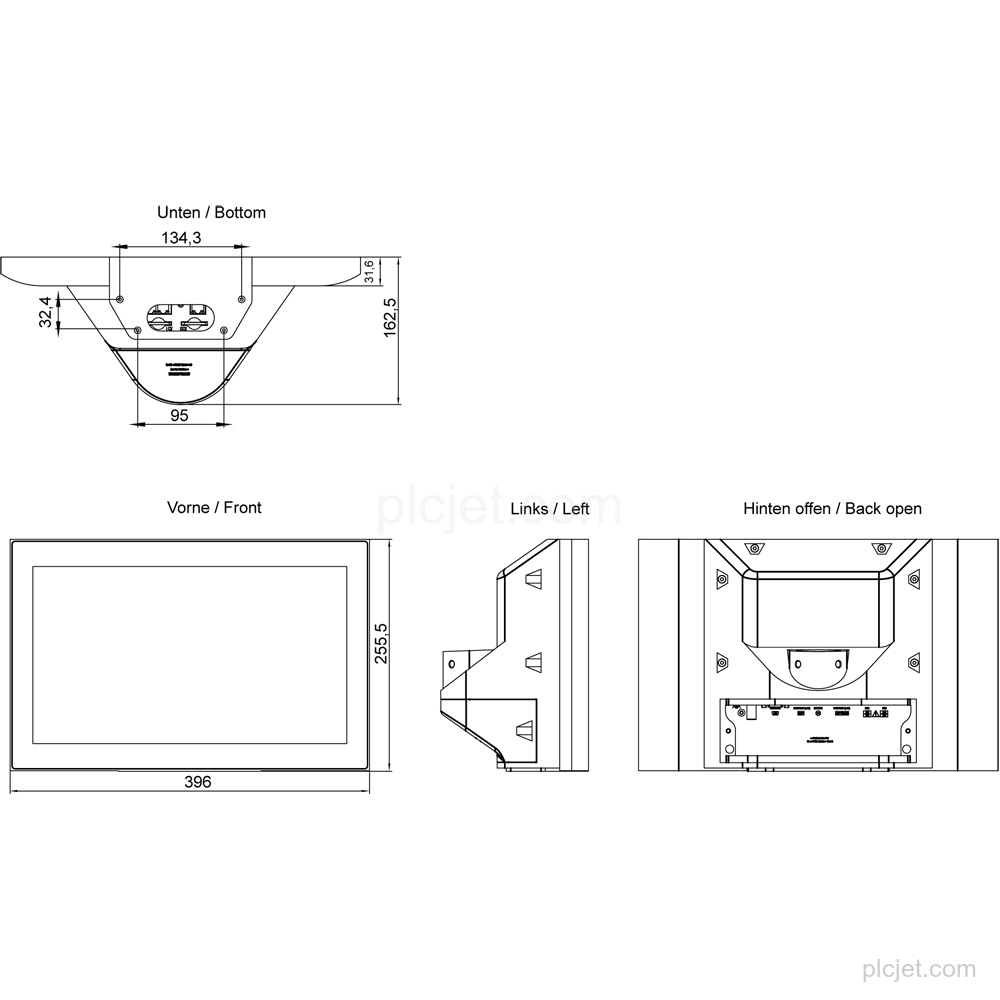

Support-arm mounting; landscape format is possible, portrait format is not, and the maximum permissible angle of inclination without external ventilation is 35°.
24 V DC rated supply with a permissible range from 19.2 V to 28.8 V; current consumption is 0.7 A rated and 1.3 A maximum.

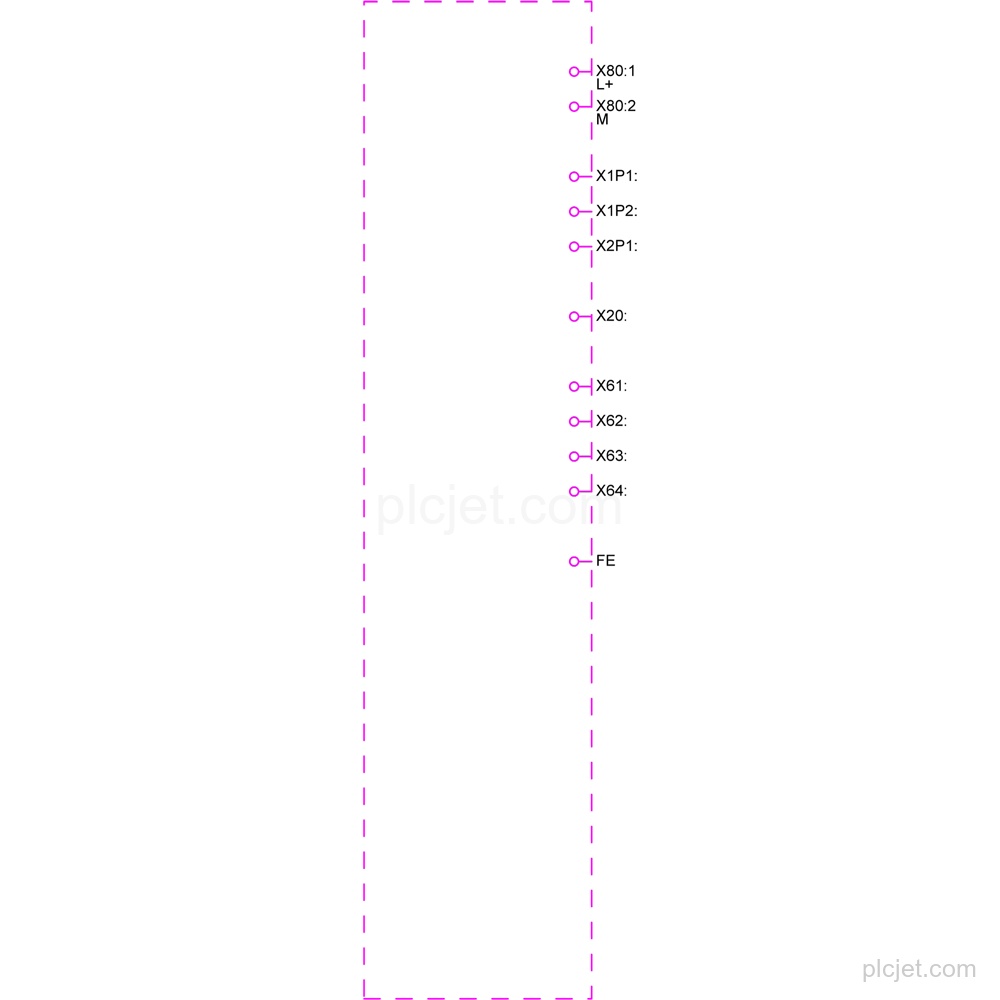

2 industrial Ethernet interfaces with 2 ports on an integrated switch plus an independent port, 1 combined RS 422 / 485 interface, and 4 USB 3.1 Gen. 1 type A interfaces.
Configurable as of WinCC Unified Comfort V18; contains open-source software provided free of charge. Product lifecycle: Active Product.
Frequently Asked Questions
What is the exact product type for 6AV2128-3QB57-0BX0?
The product type designation is MTP1500 Unified Comfort PRO Neutral Front.
What mounting arrangement does this HMI use?
It uses support-arm mounting. Landscape format is possible; portrait format is not.
What supply voltage does the panel require?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
Which interfaces are provided?
It has 2 industrial Ethernet interfaces, 1 combined RS 422 / 485 interface, and 4 USB 3.1 Gen. 1 type A interfaces.
