Product Overview
Technical Summary
| Product type | MTP1900 Unified Comfort PRO |
|---|---|
| Display | 18.5 in widescreen TFT; 16 777 216 colors; 1 920 pixel × 1 080 pixel |
| Mounting | Support arm, vertical; maximum permissible angle of inclination without external ventilation: 35° |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Interfaces | 2 industrial Ethernet interfaces; 1 combined RS 422 / 485; 4 USB 3.1 Gen. 1 type A; 2 SD card slots |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP; protocol for PROFINET IO: No |
| Current consumption | 1.2 A rated; 1.7 A maximum |
| Protection | IP65 at the front and rear; NEMA Enclosure Type 4, 4x, and 12 at the front |
| Software | Configurable as of WinCC Unified Comfort V18; open-source software provided free of charge |
| Lifecycle | Active Product |
Key Features
18.5 in widescreen TFT display with 16 777 216 colors, 1 920 pixel × 1 080 pixel resolution, touch screen, and multi-touch screen.

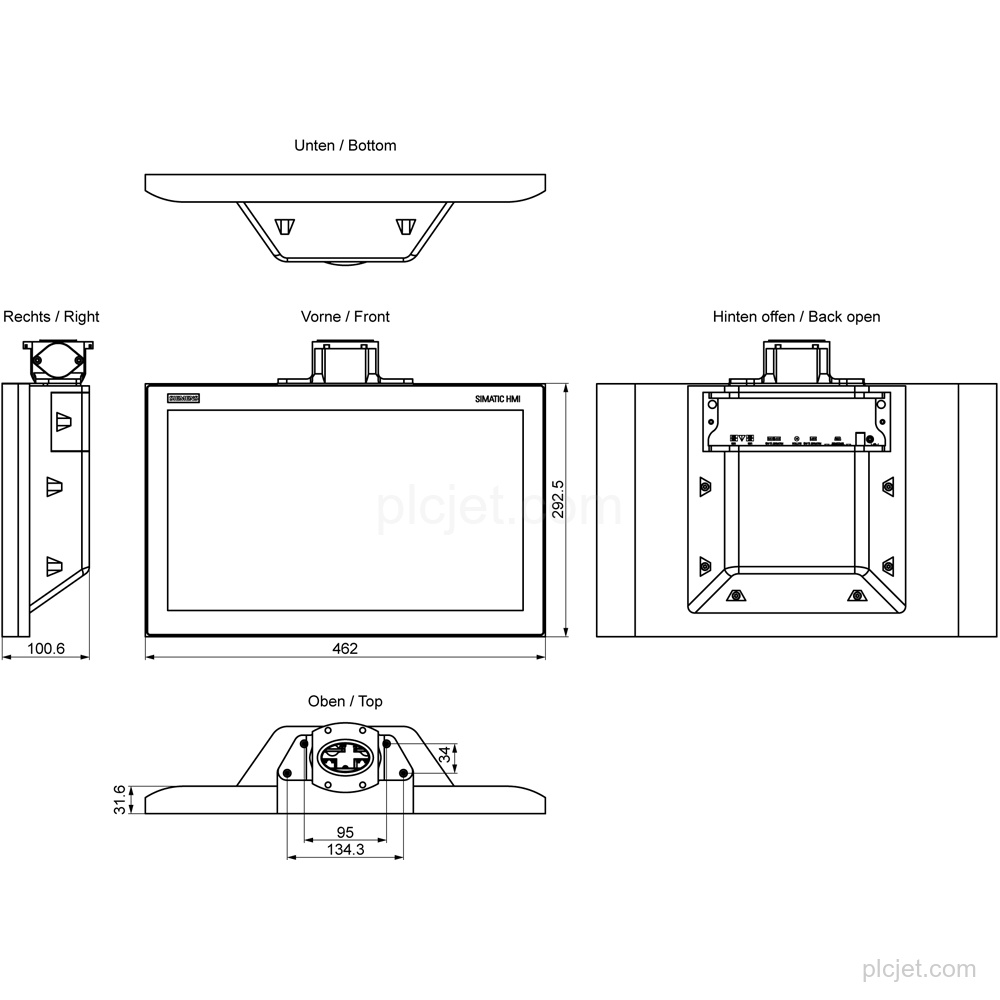

Support-arm mounting in vertical position; landscape format is possible, portrait format is not. The maximum permissible angle of inclination without external ventilation is 35°.
24 V DC rated supply value with a permissible range of 19.2 V to 28.8 V.

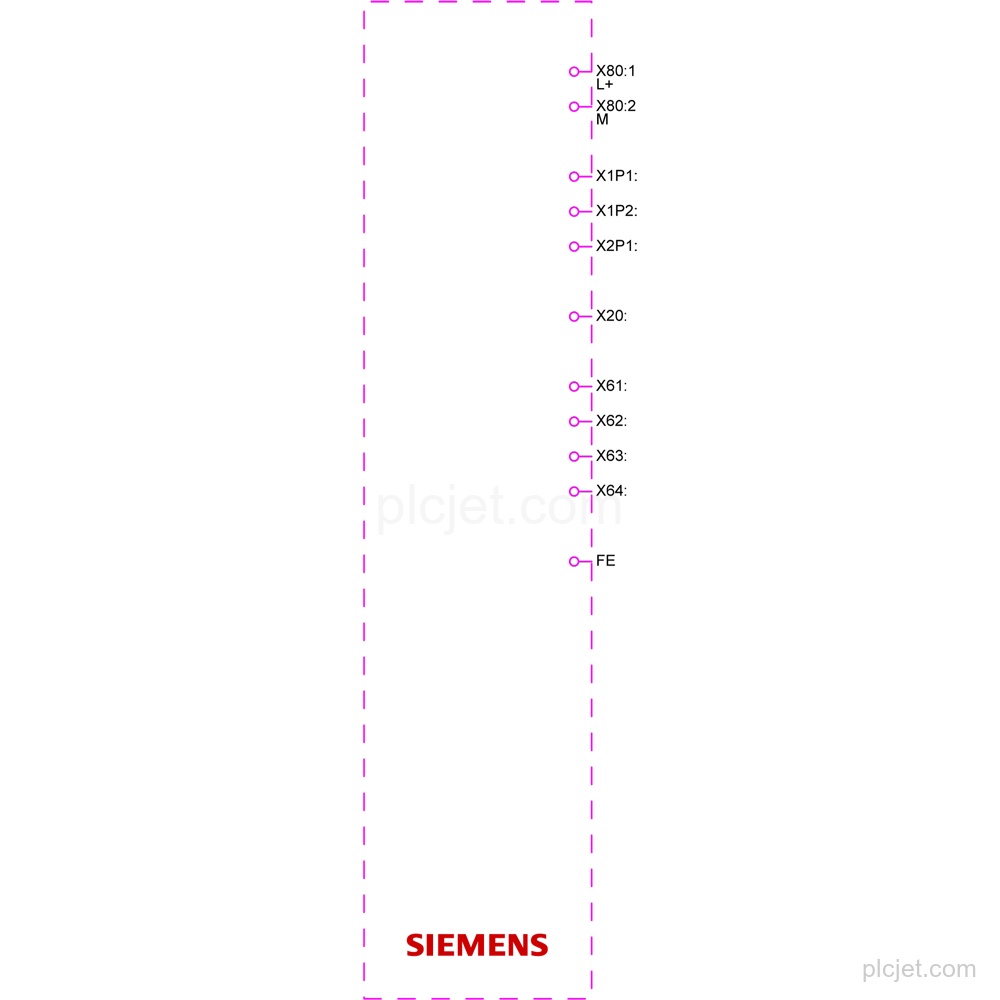

2 industrial Ethernet interfaces with 2 ports on an integrated switch plus 1 independent port; 1 combined RS 422 / 485 interface and 4 USB 3.1 Gen. 1 type A interfaces.
Supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP; it does not support the protocol for PROFINET IO.
Configurable as of WinCC Unified Comfort V18, contains open-source software provided free of charge, and has Active Product lifecycle status.
Frequently Asked Questions
What is the exact product type of 6AV2128-3UB27-0AX0?
It is the SIMATIC HMI MTP1900 PRO, with product type designation MTP1900 Unified Comfort PRO.
What display configuration does this panel have?
It has an 18.5 in widescreen TFT display with 16 777 216 colors and 1 920 pixel × 1 080 pixel resolution. It supports touch and multi-touch operation.
How is 6AV2128-3UB27-0AX0 mounted?
It uses support-arm mounting in a vertical position. Landscape format is possible, portrait format is not, and the maximum permissible angle of inclination without external ventilation is 35°.
Which interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces, 1 combined RS 422 / 485 interface, and 4 USB 3.1 Gen. 1 type A interfaces. It supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP.
