Product Overview
Technical Summary
| Product type designation | MTP1900 Unified Comfort PRO |
|---|---|
| Display | 18.5 in widescreen TFT; 16 777 216 colors |
| Resolution | 1 920 pixel horizontal × 1 080 pixel vertical |

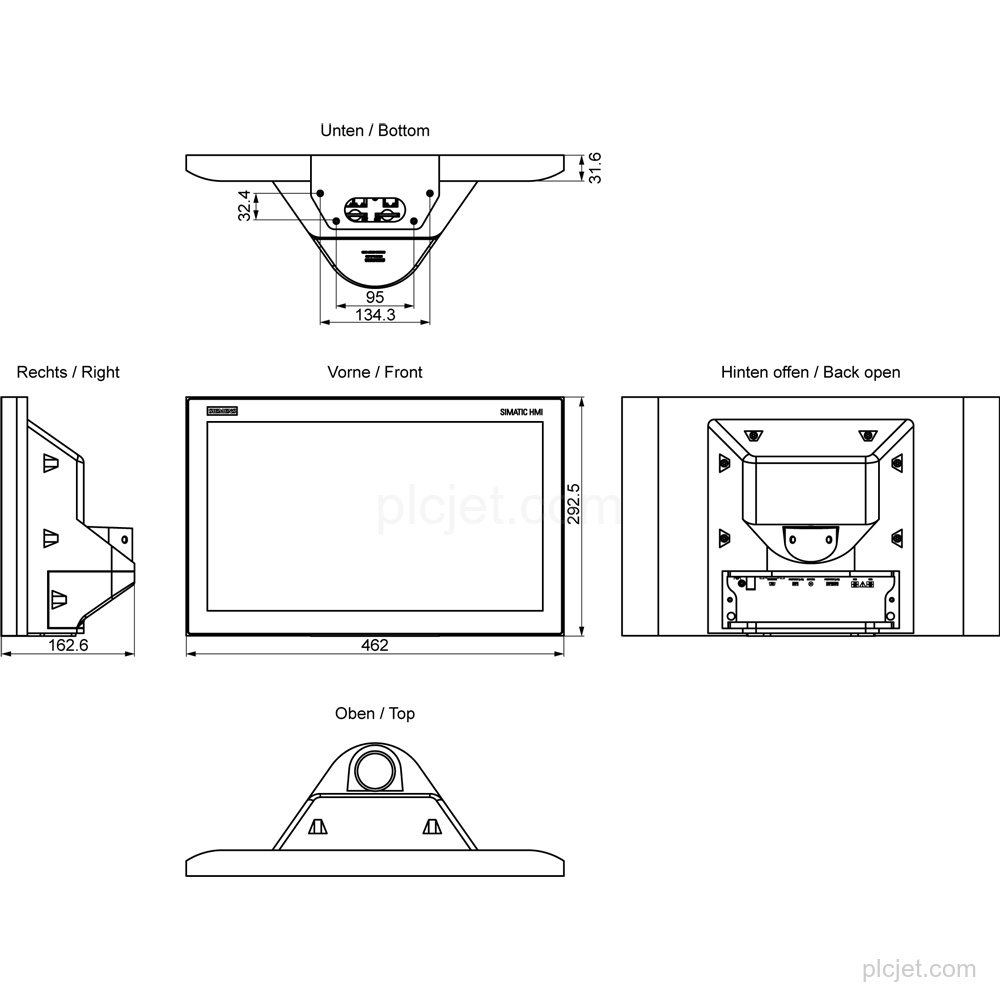

| Mounting | Support arm; landscape format possible; portrait format not possible |
| Supply voltage | DC, rated value 24 V; permissible range 19.2 V to 28.8 V |

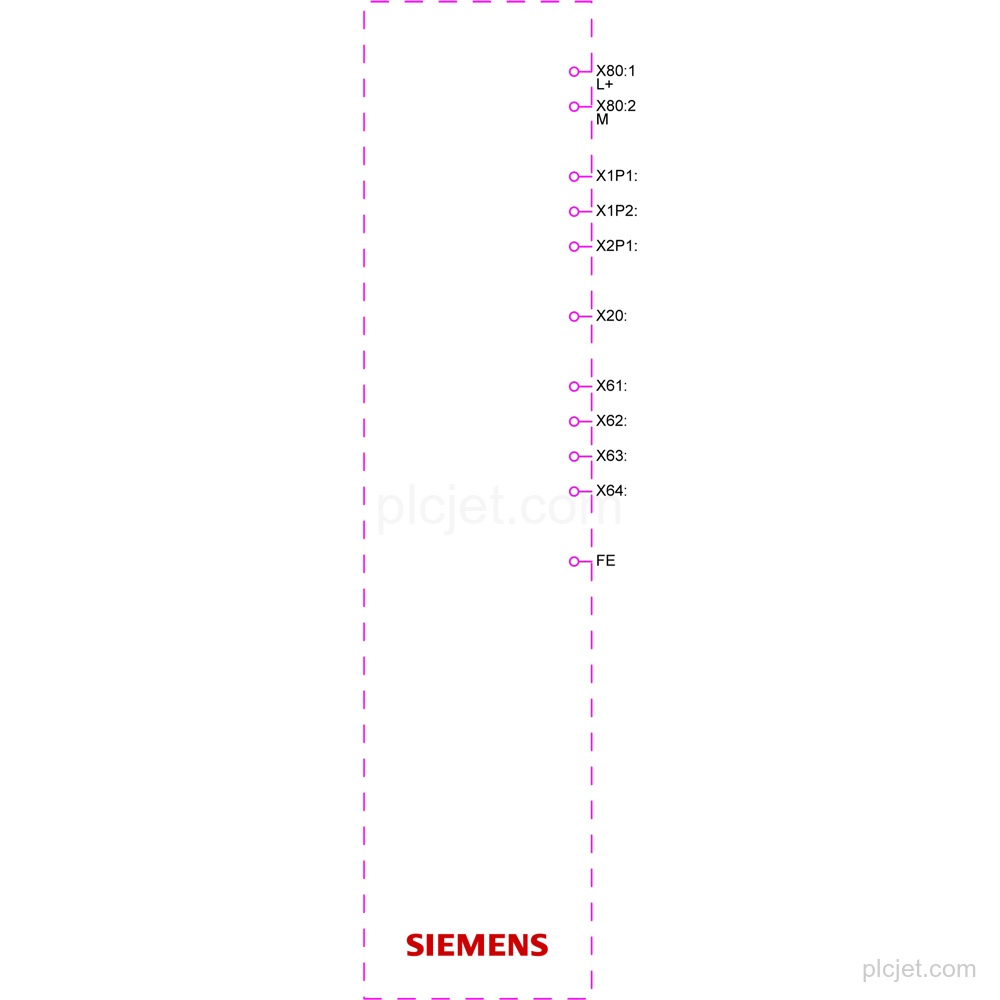

| Interfaces | 2 industrial Ethernet interfaces; 1 combined RS 422 / 485 interface; 4 USB 3.1 Gen. 1 type A interfaces; 2 SD card slots |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP |
| Protection | IP65 at the front and rear; Enclosure Type 4, 4x, and 12 at the front |
| Configuration | Configurable as of WinCC Unified Comfort V18 |
| Lifecycle | Active Product |
Key Features
18.5 in widescreen TFT display with 16 777 216 colors and 1 920 × 1 080 pixel resolution.
Support-arm mounting; vertical mounting is possible, landscape format is possible, and portrait format is not possible.
DC supply with a rated value of 24 V and a permissible range of 19.2 V to 28.8 V.
2 industrial Ethernet interfaces with 2 ports for the integrated switch plus an independent port, 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
Configurable as of WinCC Unified Comfort V18; contains open-source software provided free of charge.
Frequently Asked Questions
What exact HMI line item is 6AV2128-3UB27-0BX0?
It is the Siemens MTP1900 Unified Comfort PRO HMI panel with support-arm mounting, an 18.5 in widescreen TFT display, and a PROFINET interface.
What supply voltage does this panel require?
The DC rated supply value is 24 V, with a permissible range of 19.2 V to 28.8 V.
Which interfaces are included in the configuration?
The configuration has 2 industrial Ethernet interfaces, 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and 2 SD card slots.
How should this line item be included in a project quotation request?
Provide the requested quantity, destination, schedule, and any additional BOM lines together with the exact order number.
