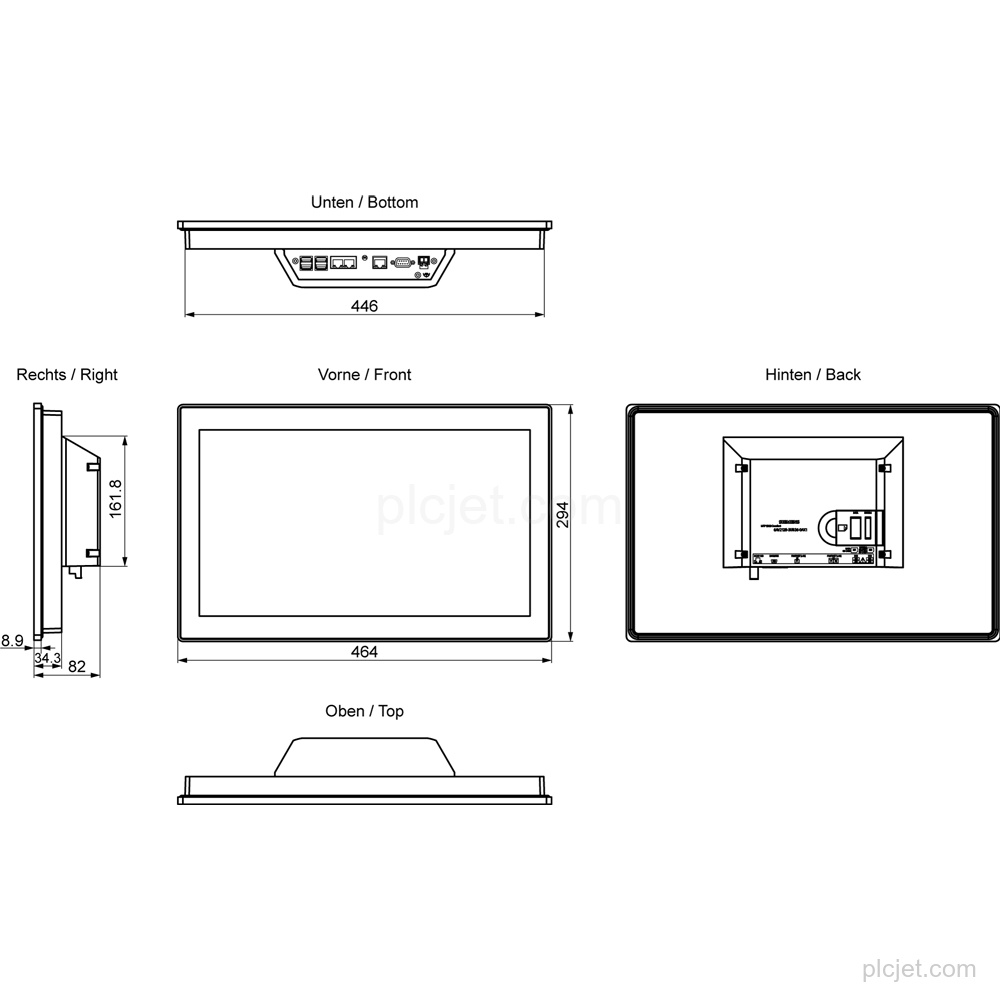

Product Overview
Technical Summary

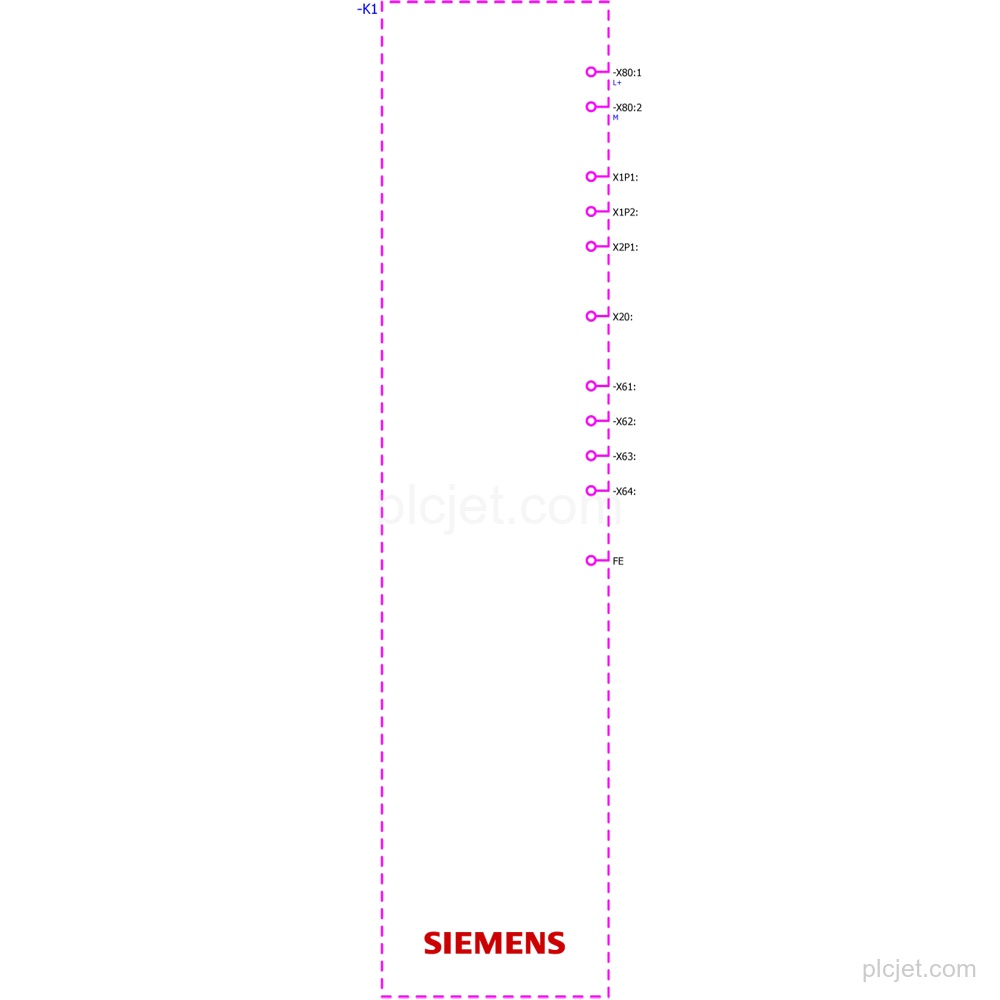

| Product type | MTP1900 Unified Comfort |
|---|---|
| Display | 18.5" widescreen TFT, 16 777 216 colors |
| Resolution | 1 920 × 1 080 pixel |
| Touch operation | Touch screen and multi-touch screen |
| Interfaces | 2 industrial Ethernet; 1 combined RS 422 / 485; 4 USB 3.1 Gen. 1 Type A; 2 SD card slots |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Current consumption | 1.2 A rated; 1.7 A maximum |
| Mounting | Vertical; portrait and landscape formats possible |
| Inclination | 35° maximum without external ventilation |
| Protection | IP65 front; IP20 rear |
| Configuration | Configurable as of WinCC Unified V16 |
| Lifecycle | Active Product |
Key Features
18.5" widescreen TFT display with 16 777 216 colors and 1 920 × 1 080 pixel resolution; multi-touch operation is supported.
2 industrial Ethernet interfaces with a 2-port integrated switch; PROFINET, TCP/IP, DHCP, SNMP, DCP and LLDP are supported.
4 USB 3.1 Gen. 1 Type A interfaces and 1 combined RS 422 / 485 interface.
Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V. Current consumption is 1.2 A rated and 1.7 A maximum.
Vertical mounting is supported, with portrait and landscape formats possible. The maximum permissible angle of inclination without external ventilation is 35°.
Protection degree is IP65 at the front and IP20 at the rear; front enclosure ratings include NEMA Type 4x and Type 12.
Frequently Asked Questions
What is the exact product type for 6AV2128-3UB36-0AX1?
It is a SIMATIC HMI MTP1900 Unified Comfort Panel.
What display and touch configuration does it have?
It has an 18.5" widescreen TFT display with 16 777 216 colors, 1 920 × 1 080 pixel resolution, touch operation and multi-touch operation.
Which interfaces are included?
It has 2 industrial Ethernet interfaces, 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 Type A interfaces and 2 SD card slots.
What supply voltage and mounting options apply?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Mounting is vertical, with portrait and landscape formats possible.
