Product Overview
Technical Summary
| Product type | MTP2200 Unified Comfort |
|---|---|
| Display | 21.5 in widescreen TFT, 16 777 216 colors |
| Resolution | 1 920 pixel horizontal × 1 080 pixel vertical |
| Touch operation | Touch screen and multi-touch screen |
| Industrial Ethernet | 2 interfaces; 2 ports (switch) + independent port |
| Supply | 24 V DC; permissible range from 19.2 V to 28.8 V |
| Current consumption | 1 A rated; 1.5 A maximum |
| USB interfaces | 4; USB 3.1 Gen. 1 (type A) |
| Mounting | Vertical; portrait and landscape possible |
| Protection | IP65 front; IP20 rear |
| Configuration software | Configurable as of WinCC Unified V16 |
Key Features
21.5 in widescreen TFT display with 1 920 pixel horizontal resolution, 1 080 pixel vertical resolution, 16 777 216 colors, touch operation, and multi-touch operation.

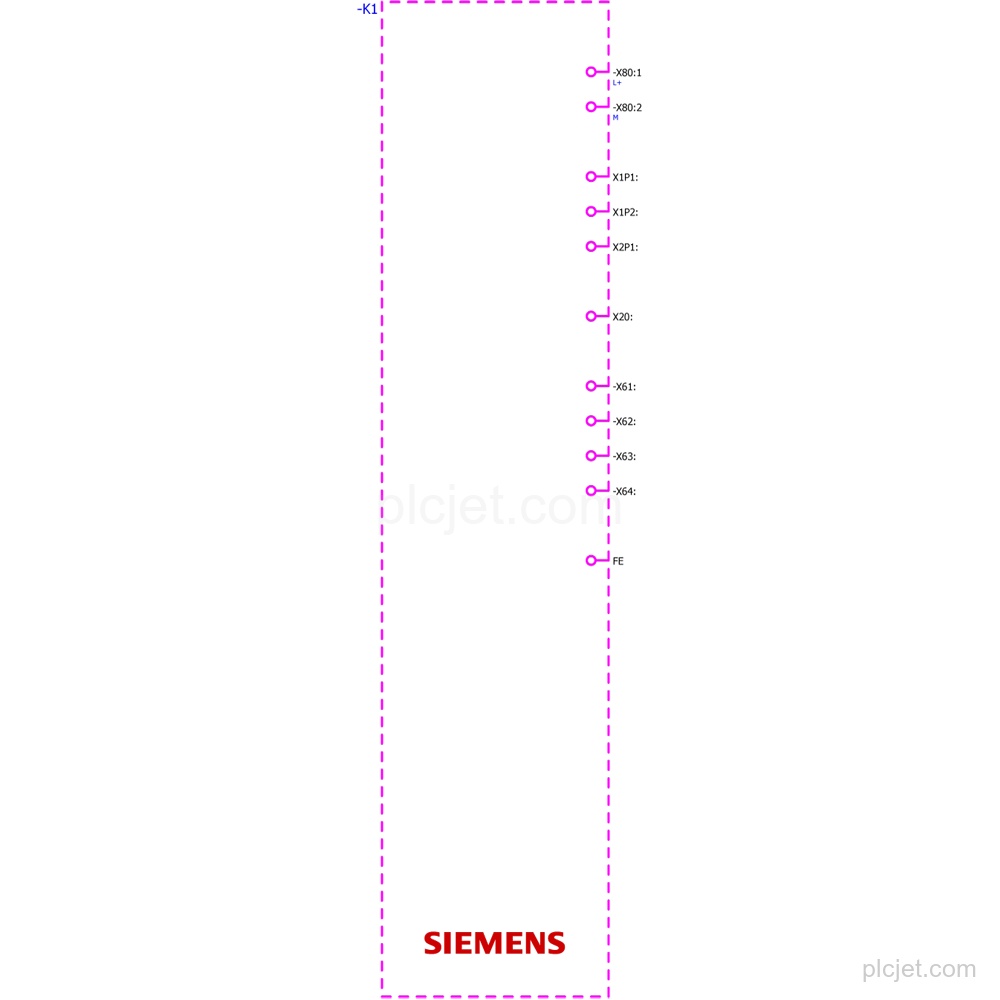

2 industrial Ethernet interfaces with 2 ports on an integrated switch plus 1 independent port; PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP are supported, while PROFINET IO protocol is not supported.
DC supply with a rated value of 24 V, permissible range from 19.2 V to 28.8 V, rated current consumption of 1 A, and maximum current consumption of 1.5 A.

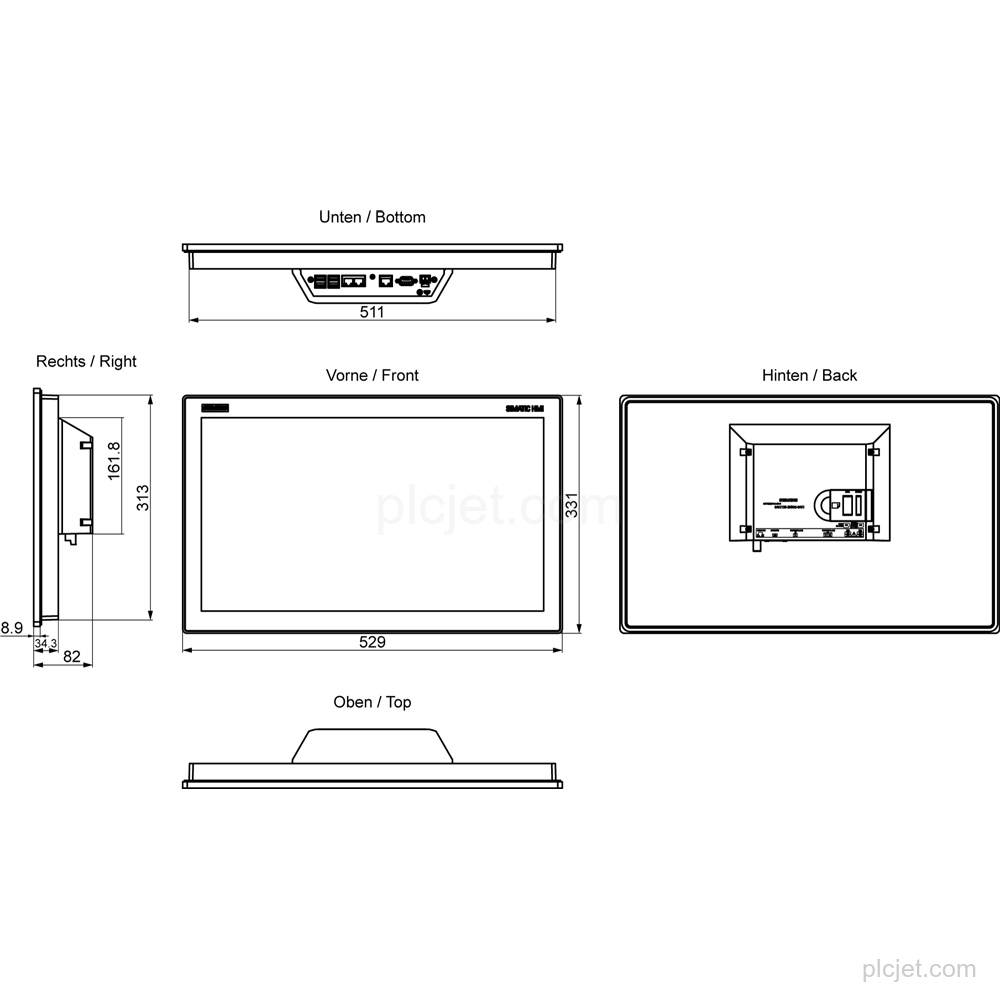

Vertical mounting; portrait and landscape mounting are possible. The maximum permissible angle of inclination without external ventilation is 35°.
4 USB 3.1 Gen. 1 type A interfaces and 2 SD card slots.
IP65 protection at the front and IP20 protection at the rear; the front has NEMA Enclosure Type 4x and Enclosure Type 12.
Frequently Asked Questions
What is the exact product type for Siemens 6AV2128-3XB06-0AX1?
It is an MTP2200 Unified Comfort Panel with touch and multi-touch operation.
What display configuration does this line item have?
It has a 21.5 in widescreen TFT display with 1 920 pixel horizontal resolution, 1 080 pixel vertical resolution, and 16 777 216 colors.
Which interfaces and protocols are included?
It has 2 industrial Ethernet interfaces, 4 USB 3.1 Gen. 1 type A interfaces, 2 SD card slots, and 1 RS 422 / 485 combined interface. PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP are supported; PROFINET IO protocol is not supported.
What should be provided for a project quotation request?
Provide the requested quantity, destination, schedule context, and any additional BOM lines together with the exact order number 6AV2128-3XB06-0AX1.
