Product Overview
Technical Summary
| Product type | MTP2200 Unified Comfort PRO |
|---|---|
| Display | 21.5 in widescreen TFT, 1 920 pixel × 1 080 pixel |
| Touch operation | Touchscreen and multi-touch screen |

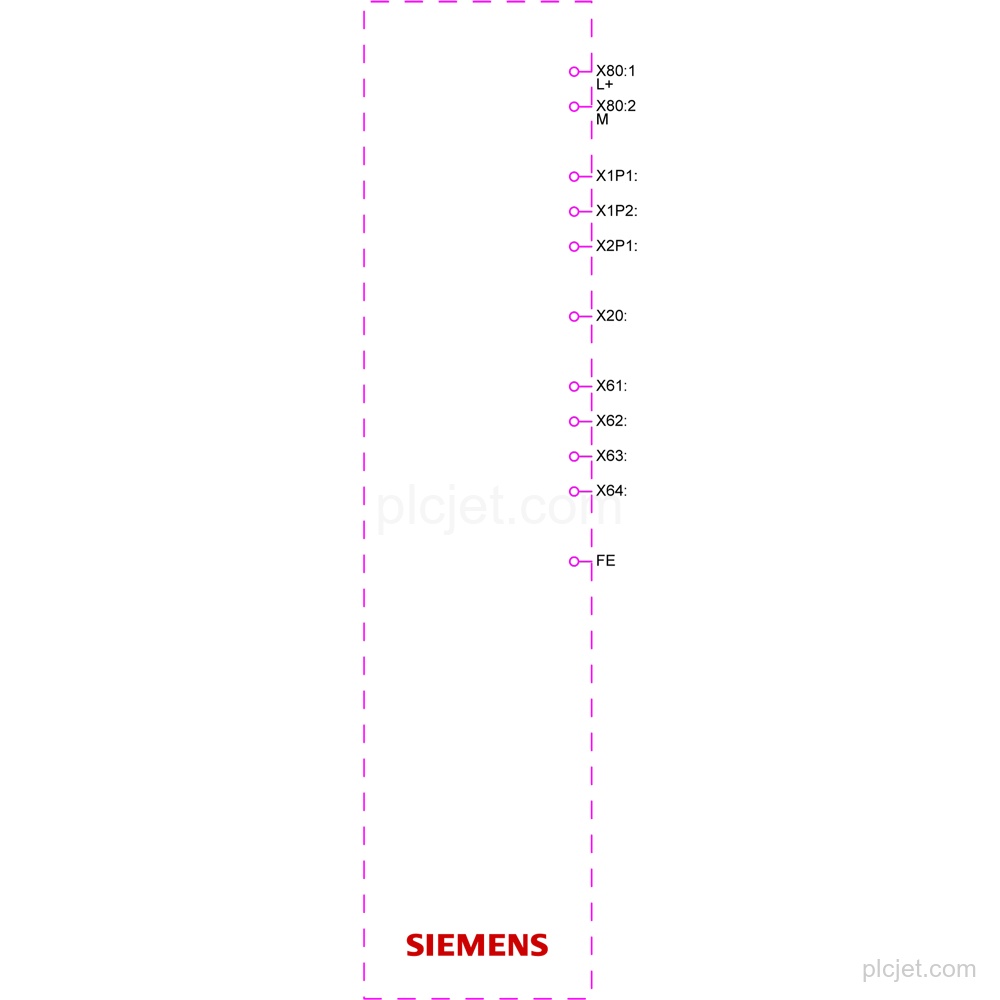

| Interfaces | 2 industrial Ethernet; 1 RS 422 / 485; 4 USB 3.1 Gen. 1 type A; 2 SD card slots |
| PROFINET | Yes; supports protocol for PROFINET IO: No |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Current consumption | 1 A rated; 1.5 A maximum |
| Mounting | Support arm; vertical or landscape position |
| Protection | IP65 at the front and rear |
| Configuration | Configurable as of Comfort V18 |
| Lifecycle | Active Product |
Key Features
MTP2200 Unified Comfort PRO; support arm mounting, flange on top, not expandable.
21.5 in widescreen TFT display with 1 920 pixel × 1 080 pixel resolution, 16 777 216 colors, touchscreen and multi-touch.
2 industrial Ethernet interfaces with 2 ports (switch) + independent port, 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces and 2 SD card slots.
24 V DC rated supply, permissible range 19.2 V to 28.8 V, 1 A rated current consumption and 1.5 A maximum current consumption.

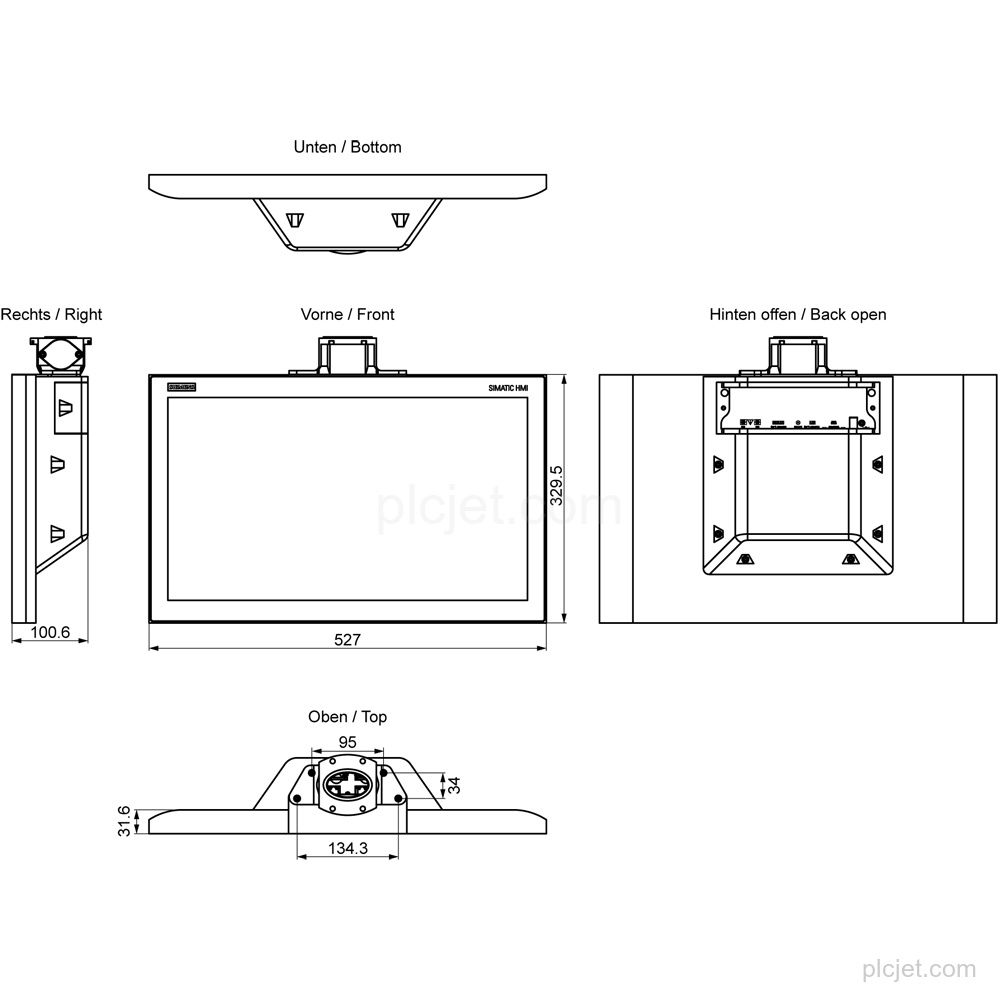

IP65 at the front and rear; support-arm mounting in vertical or landscape position. Portrait mounting is not possible; maximum permissible angle of inclination without external ventilation is 35°.
Configurable as of Comfort V18; contains open-source software provided free of charge. Product lifecycle: Active Product.
Frequently Asked Questions
What is the exact product type for 6AV2128-3XB27-0AX0?
It is the SIMATIC HMI MTP2200 PRO, product type designation MTP2200 Unified Comfort PRO.
Which interfaces does this HMI panel have?
It has 2 industrial Ethernet interfaces, 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces and 2 SD card slots.
What supply voltage does it use?
Supply: 24 V DC. The permissible range is 19.2 V to 28.8 V.
How is the panel mounted?
It is mounted on a support arm. Vertical and landscape mounting are possible; portrait mounting is not possible.
