Product Overview
Technical Summary
| Product type | MTP2200 Unified Comfort PRO Neutral Front |
|---|---|
| Display | 21.5 in widescreen TFT, 1 920 pixel × 1 080 pixel, 16 777 216 colors |

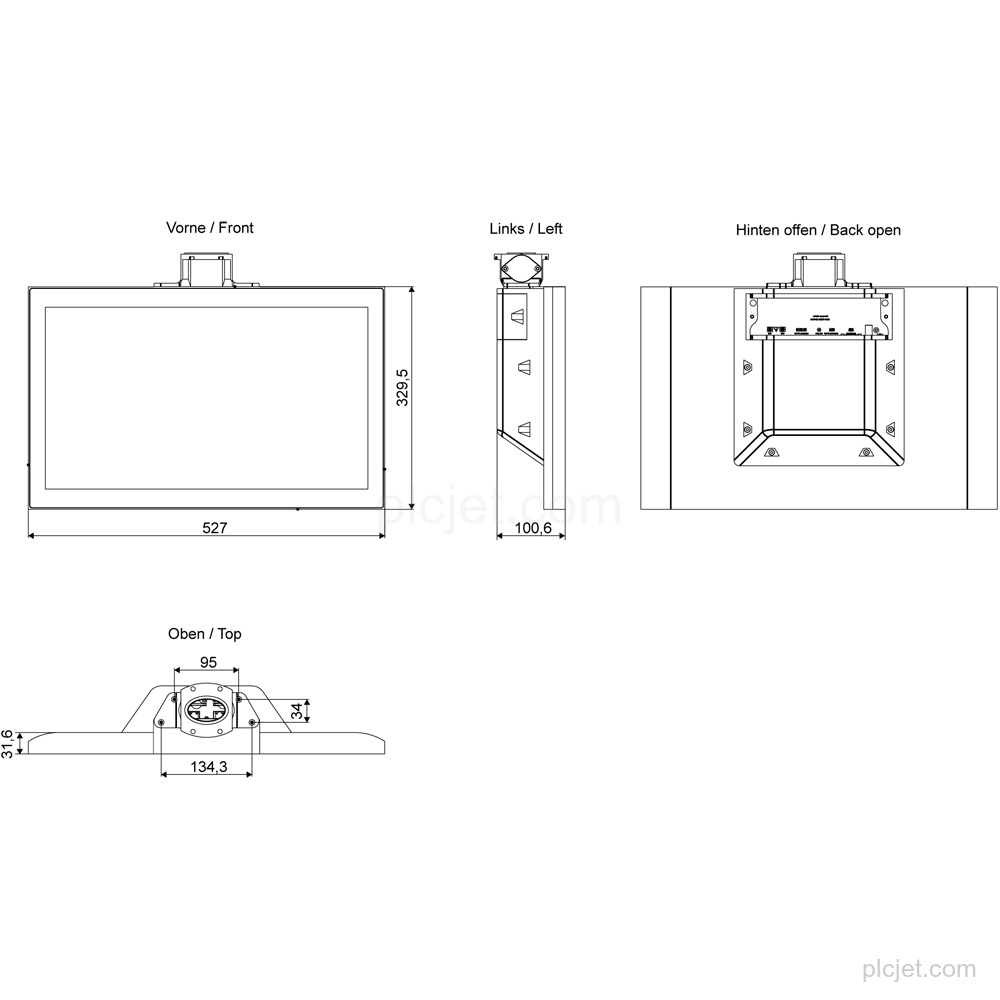

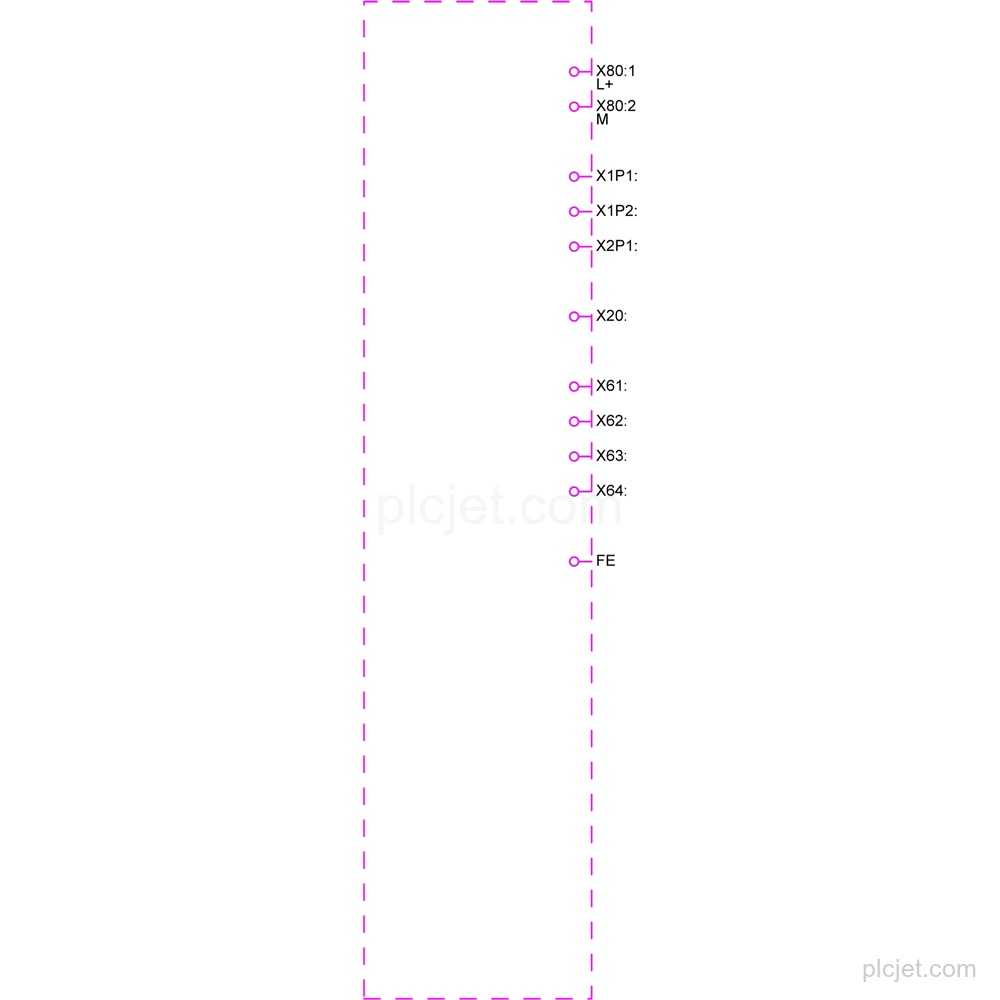

| Mounting | Support arm; vertical; landscape format possible |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Industrial Ethernet | 2 interfaces; 2 switch ports plus independent port |
| Additional interfaces | 1 RS 422 / 485 combined; 4 USB 3.1 Gen. 1 type A; 2 SD card slots |
| Protection | IP65 at the front and rear; Enclosure Type 4, 4x and 12 at the front |
| Software | Configurable as of WinCC Unified Comfort V18; open-source software included free of charge |
Key Features
21.5 in widescreen TFT display with 16 777 216 colors, 1 920 pixel × 1 080 pixel resolution, touch operation, and multi-touch.
Support-arm mounting in vertical position; landscape format is possible, portrait format is not, with a maximum permissible inclination angle of 35° without external ventilation.
2 industrial Ethernet interfaces with 2 ports on an integrated switch plus an independent port, 1 combined RS 422 / 485 interface, and 4 USB 3.1 Gen. 1 type A interfaces.
24 V DC rated supply with a permissible range of 19.2 V to 28.8 V; current consumption is 1 A rated and 1.5 A maximum.
Configurable as of WinCC Unified Comfort V18; the panel is not expandable, has a neutral front, and contains open-source software provided free of charge.
Frequently Asked Questions
What exact HMI variant is 6AV2128-3XB57-0AX0?
It is the SIMATIC HMI MTP2200 PRO with MTP2200 Unified Comfort PRO Neutral Front, a non-expandable support-arm panel.
Which network interfaces and protocols does the panel provide?
It has 2 industrial Ethernet interfaces with 2 integrated-switch ports plus an independent port, and supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP. PROFINET IO protocol support is not available.
What mounting and supply details should be retained for a quotation?
Use support-arm mounting in vertical or landscape orientation. Supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
What is excluded from this configuration?
It is without expandability, has a neutral front, and does not support portrait-format mounting or PROFINET IO protocol.
