Product Overview
Technical Summary
| Product type | MTP2200 Unified Comfort PRO Neutral Front |
|---|---|
| Display | 21.5 in widescreen TFT; 1 920 x 1 080 pixel; 16 777 216 colors |

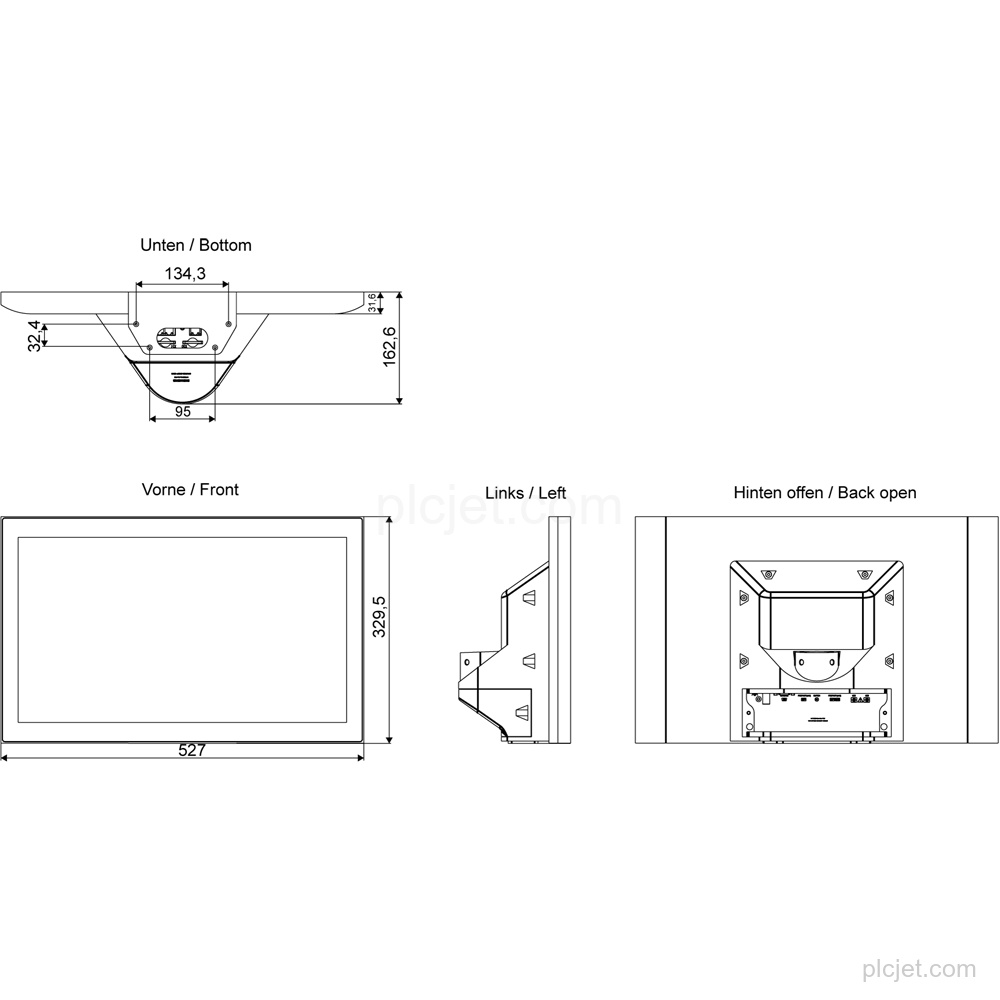

| Mounting | Support arm; vertical; landscape format possible; maximum permissible angle of inclination without external ventilation: 35° |

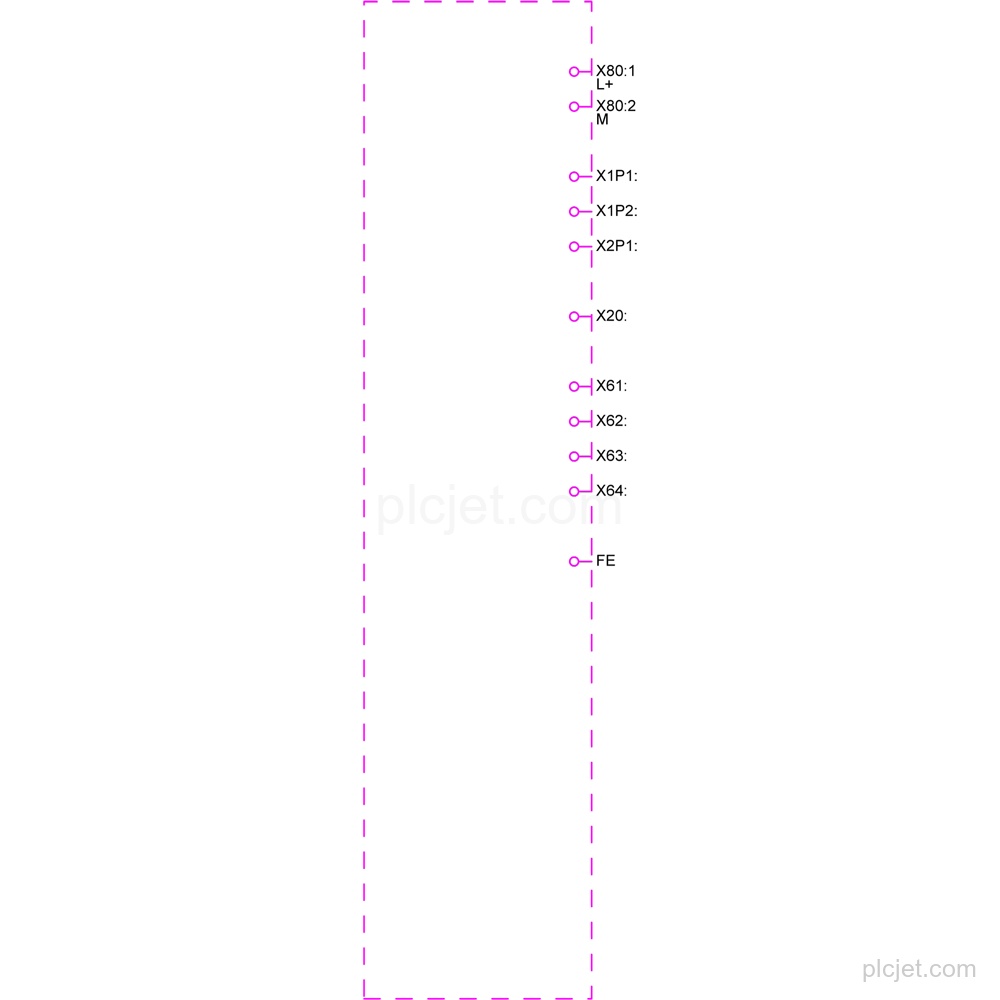

| Interfaces | 2 industrial Ethernet interfaces (2 ports switch + independent port); 1 RS 422 / 485 combined; 4 USB 3.1 Gen. 1 type A; 2 SD card slots |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, MRP |
| Supply | 24 V DC rated; permissible range 19.2 V to 28.8 V |
| Current consumption | 1 A rated; 1.5 A maximum |
| Protection | IP65 at front and rear; Enclosure Type 4, 4x and 12 at the front |
| Configuration | Configurable as of WinCC Unified Comfort V18 |
| Software | Contains open-source software, provided free of charge |
Key Features
MTP2200 Unified Comfort PRO Neutral Front for support-arm mounting; landscape mounting is possible.
21.5 in TFT widescreen display with 1 920 x 1 080 pixel resolution, 16 777 216 colors, and multi-touch operation.
2 industrial Ethernet interfaces with 2 switch ports plus 1 independent port, 1 combined RS 422 / 485 interface, and 4 USB 3.1 Gen. 1 type A interfaces.
Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V.
Configurable as of WinCC Unified Comfort V18; contains open-source software provided free of charge.
Frequently Asked Questions
What is the exact product variant?
The exact product is 6AV2128-3XB57-0BX0, with product type designation MTP2200 Unified Comfort PRO Neutral Front.
What mounting and display configuration does it have?
It uses support-arm mounting and has a 21.5 in widescreen TFT display with 1 920 x 1 080 pixel resolution. Landscape mounting is possible; portrait mounting is not.
Which interfaces and protocols are supported?
It has 2 industrial Ethernet interfaces, 1 combined RS 422 / 485 interface, 4 USB 3.1 Gen. 1 type A interfaces, and supports PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP, and MRP.
What supply should be retained in the project BOM?
Retain 24 V DC rated supply, with a permissible range of 19.2 V to 28.8 V.
Can this line item be included in a multi-line quotation request?
Yes. Provide the requested quantity, destination, schedule context, and any additional BOM lines.
